Chapter 2

H97I-DRONE USER MANUAL

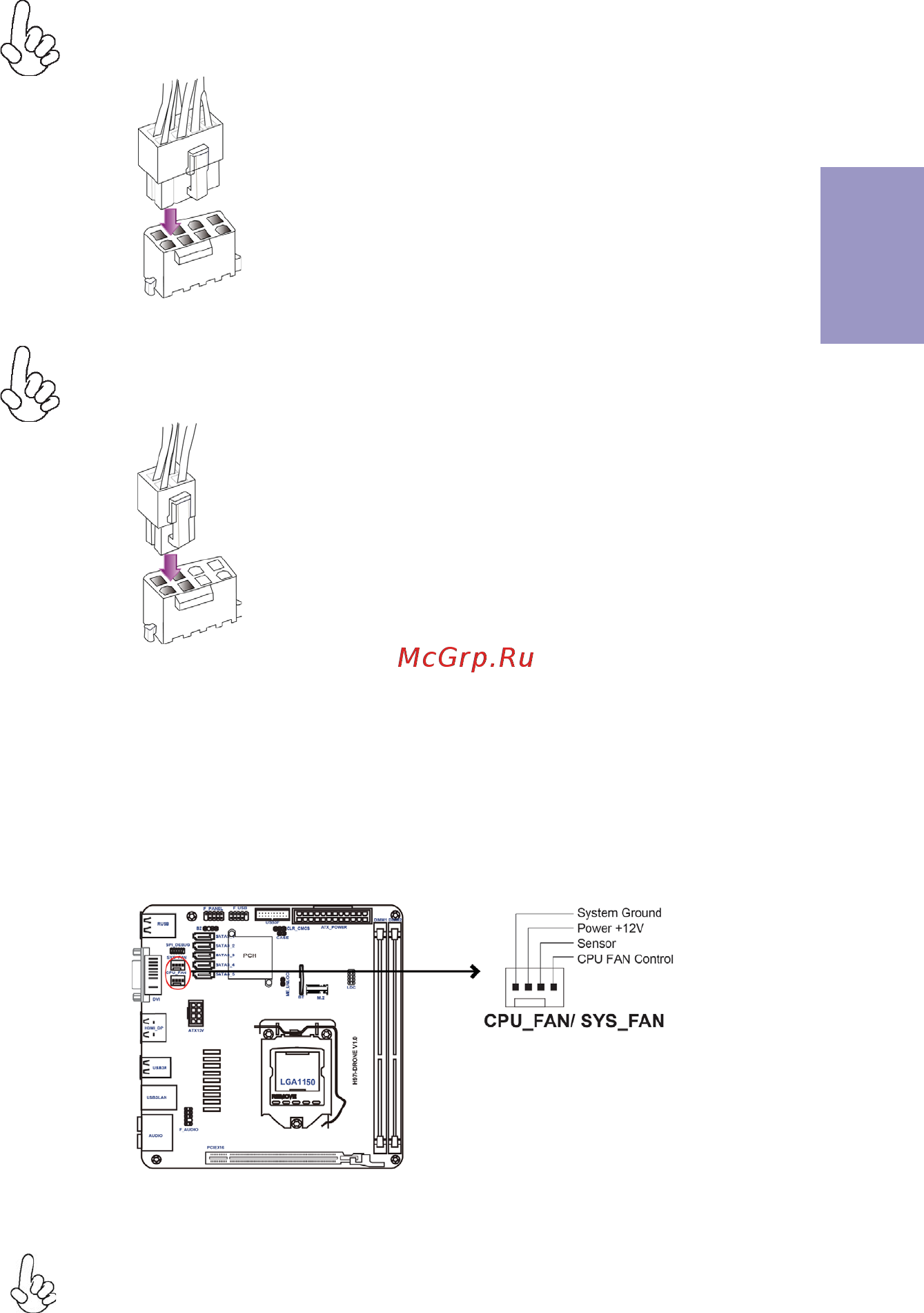

The ATX12V power connector is used to provide power to the CPU.

When installing 8-pin power cable, the

latches of power cable and the ATX12V

match perfectly.

Connecting 8-pin power cable

8-pin power cable

The ATX12V power connector is used to provide power to the CPU.

When installing 4-pin power cable, the

latches of power cable and the ATX12V

match perfectly.

Connecting 4-pin power cable

4-pin power cable

3 & 4 CPU_FAN(CPU cooling FAN Connectors) SYS_FAN ( System Cooling FAN

Connectors)

Users please note that the fan connector supports the CPU cooling fan of 1.1A

~ 2.2A (26.4W max) at +12V.

Connect the CPU cooling fan cable to CPU_FAN.

Connect the system cooling fan connector to SYS_FAN.
