Chapter 3
H97I-DRONE USER MANUAL
45

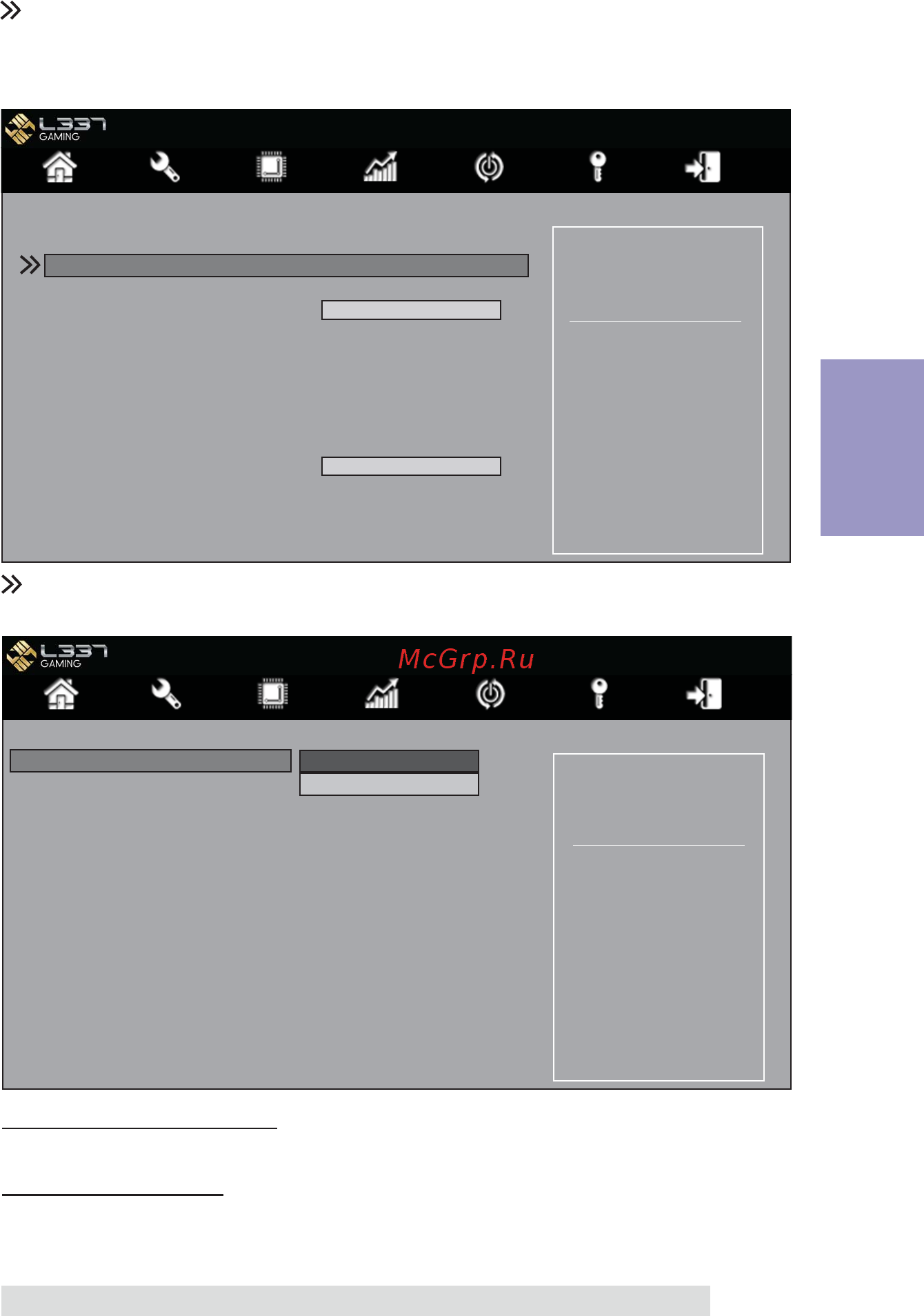

Use this item to show the information of Intel(R) Ethernet Connection I218-V -
88:88:88:88:87:88.
Intel(R) Ethernet Connection (2) I218-V - 88:88:88:88:87:88
Configuration Boot Protocol,
Wake on LAN, Link Speed, and
VLAN.
Main Advanced Chipset M.I.B. X Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
TCC Activation Temperature (DTS) 100
NIC Configuration
PORT CONFIGURATION MENU
Blink LEDs 0
PORT CONFIGURATION INFORMATION
UEFI Driver : Intel(R) 1GbE DEV 6.0.03
Adapter PBA : FFFFFF-OFF
Chip Type Intel PCH LPT
PCI Device ID 1559
PCI Address 00:19:00
Link Status Disconnected
MAC Address 88:88:88:88:87:88
Link Speed (Auto Negotiated)
This item allows you to enable or disable serial port.
Wake On LAN (Enabled)
This item allows you to enable or disable Wake on LAN function.
NIC Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset M.I.B. X Security Boot Exit
Specifies the port speed
used for the selected boot
protocol.
Link Speed Auto Negotiated
Wake On LAN Enabled
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Press <Esc> to return to the Intel(R) Ethernet Connection I218-V page.
