Chapter 2

H87H3-M3 USER MANUAL

Please make sure that the USB cable has the same pin assignment as indi-

cated above. A different pin assignment may cause damage or system hang-

up.

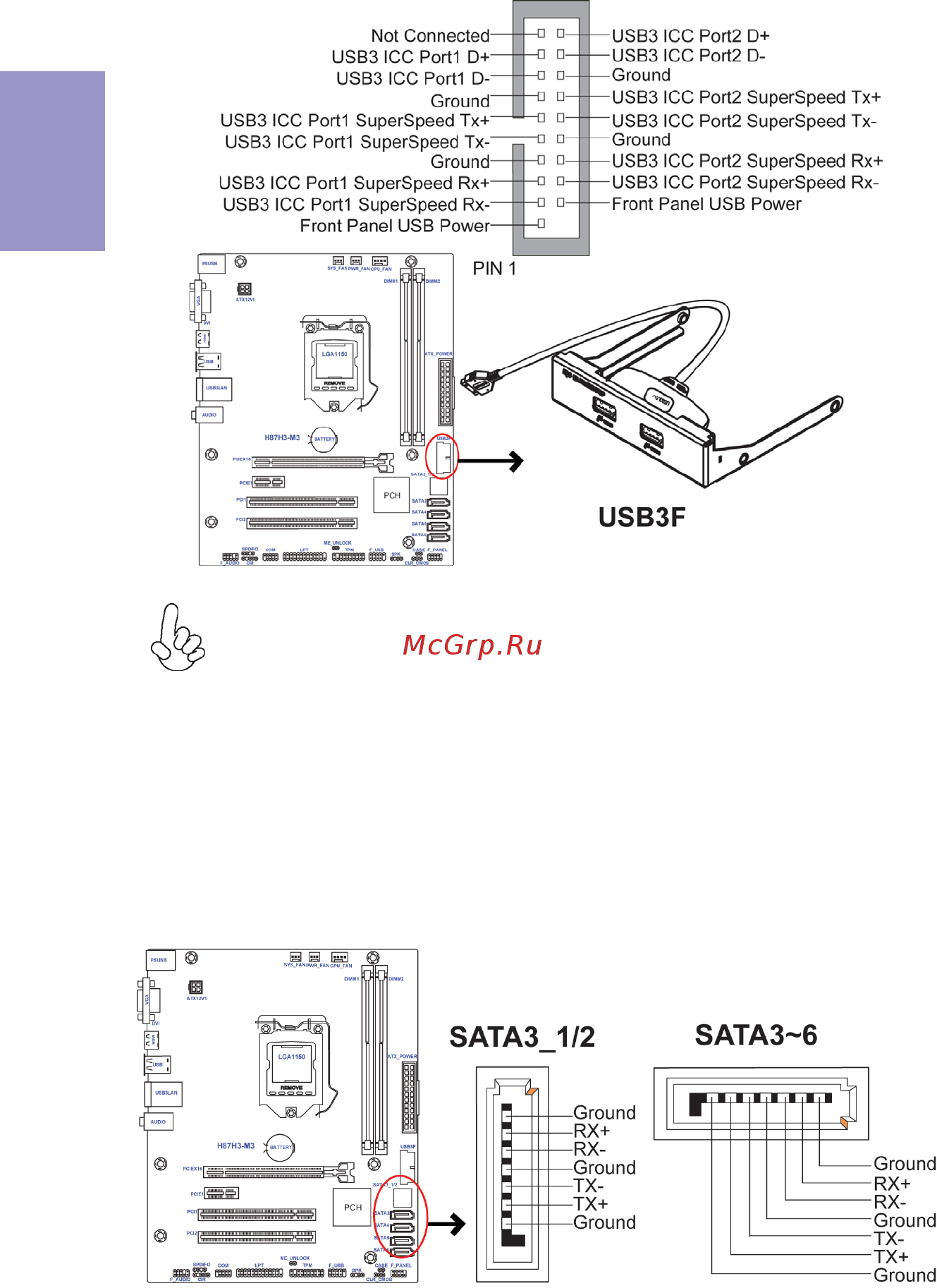

This Motherboard implements one USB 3.0 header supporting 2 extra front USB 3.0

ports, which delivers 5Gb/s transfer rate.

1. USB3F: Front Panel USB 3.0 header

SATA1~6 connectors support the Serial ATA 6.0Gb/s device, simpler disk drive cabling

and easier PC assembly. It eliminates limitations of the current Parallel ATA inter-

face. But maintains register compatibility and software compatibility with Parallel

ATA.

2 . SATA1~6: Serial ATA connectors
