Chapter 2

H87H3-M3 USER MANUAL

Trusted platform module (TPM) is a published specification detailing a micro con-

troller that can store secured information, and implementations of that specifica-

tion.

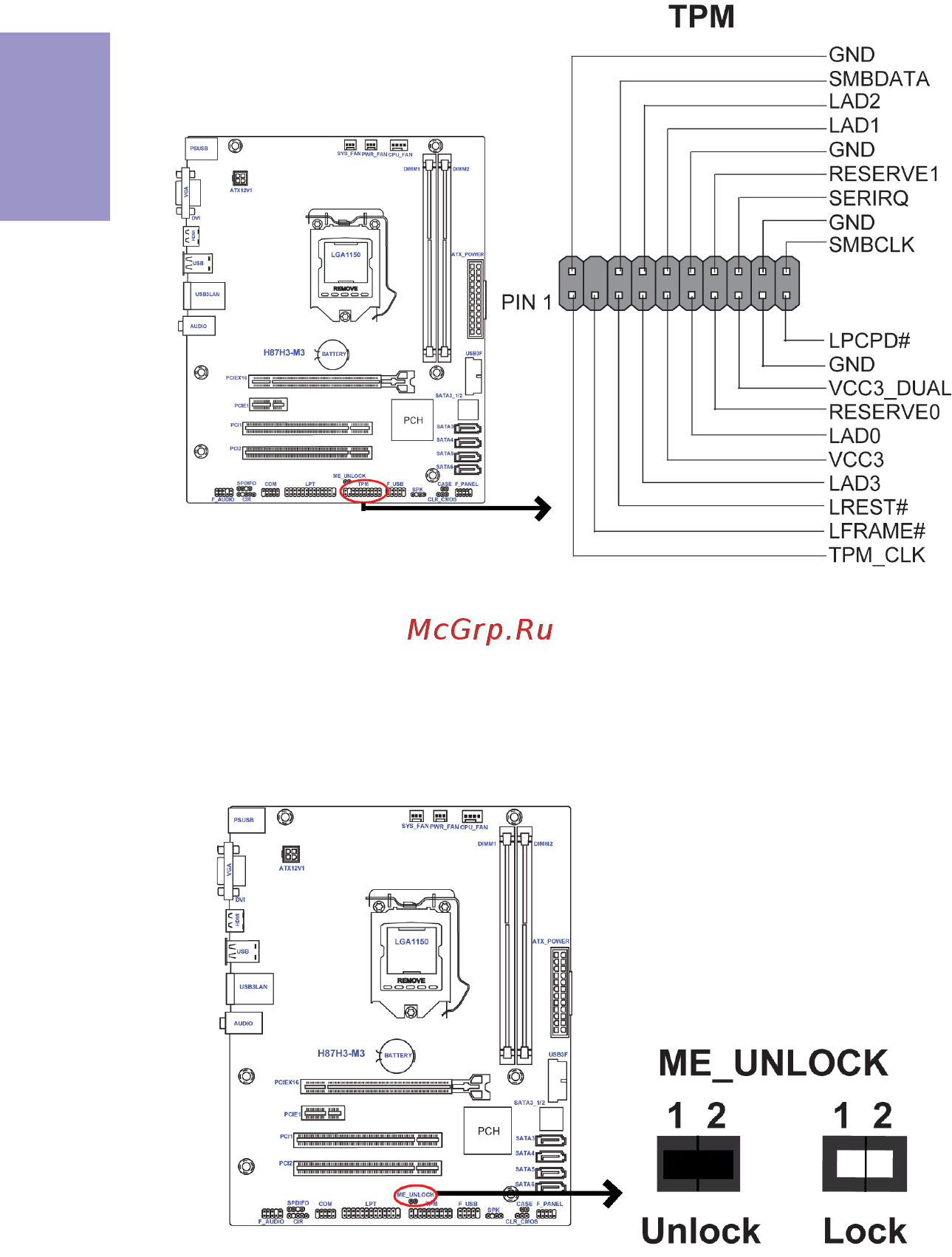

5. TPM: Trusted Platform Module header

6. ME_UNLOCK: ME Unlock Header
