H87H3-M3 USER MANUAL

Chapter 5

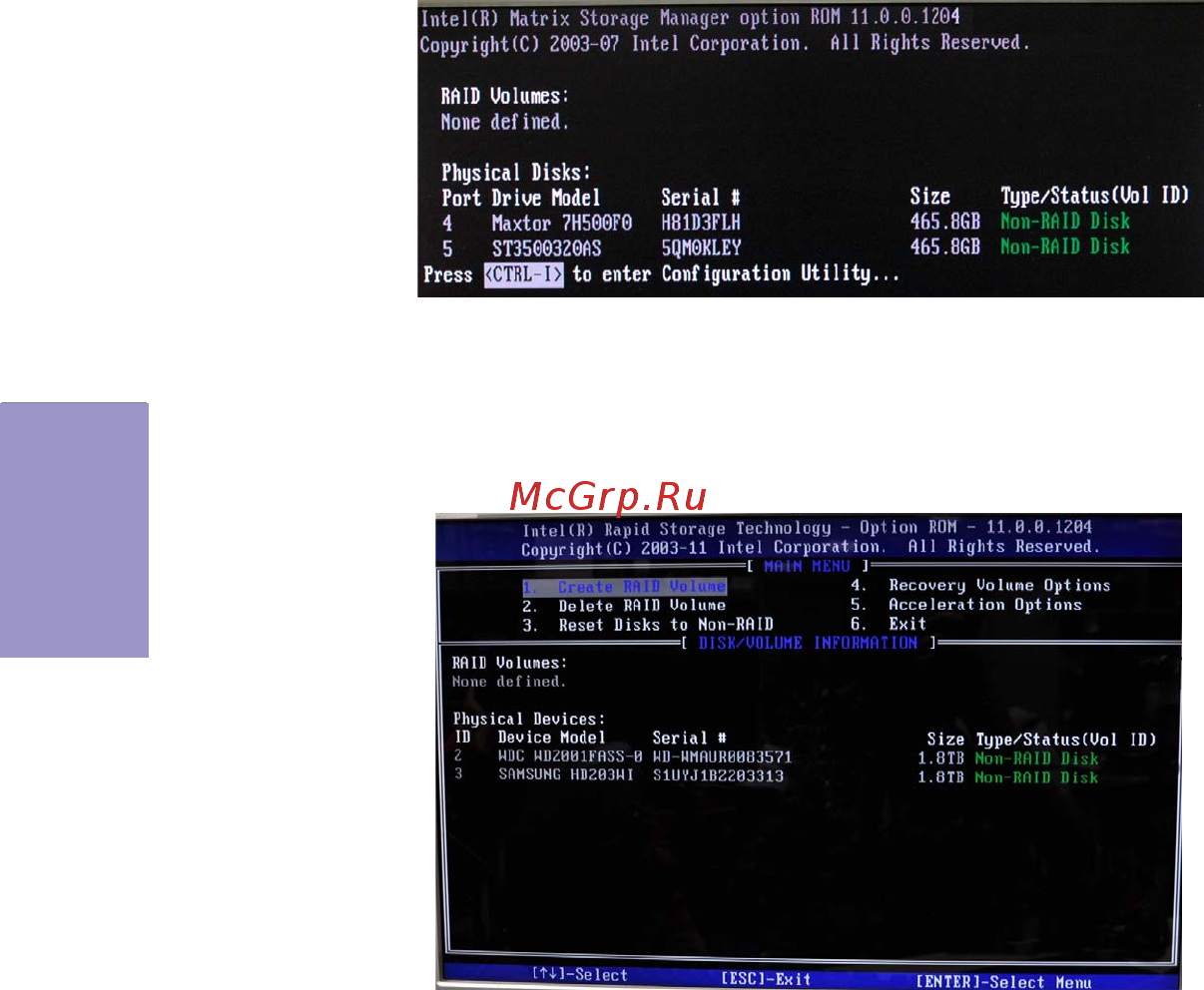

2. The main Intel

Matrix Storage Manager RAID BIOS menu appears.

Entering Intel

Matrix Storage Manager RAID BIOS utility

1. During POST, press <Ctrl-I> to enter the Intel

Matrix Storage Manager RAID

BIOS menu.

3. Use the arrow keys to move the color bar and navigate through the items.

3. Enter the Intel

Matrix Storage Manager option to set up your RAID con-

figuration.

4. Create an Intel

Matrix Storage Manager driver disk for Windows

OS in-

stallation. See section “Creating a RAID driver disk” for details.

5. Install the Intel

Matrix Storage Manager driver after the Windows

had been installed.
