Chapter 2

H87H3-M4 USER MANUAL

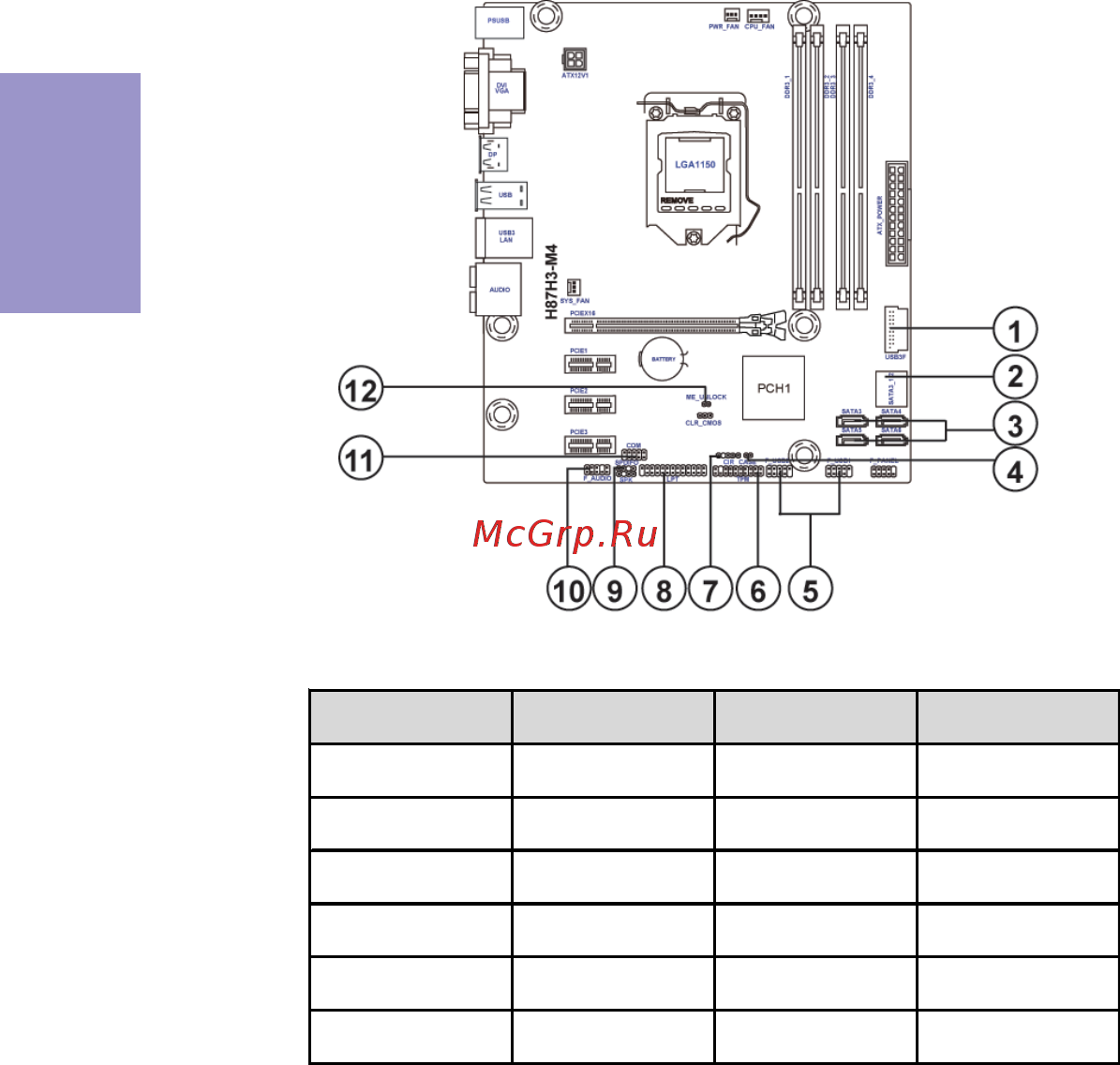

2-4-5. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

No. Components No. Components

1USB3F 7 CIR

2 SATA3_1/2 8 LPT

3SATA3~69 SPDIFO

4CASE10F_AUDIO

5 F_USB1~211 COM

6 TPM 12 ME_UNLOCK
