Chapter 2

H87H3-M4 USER MANUAL

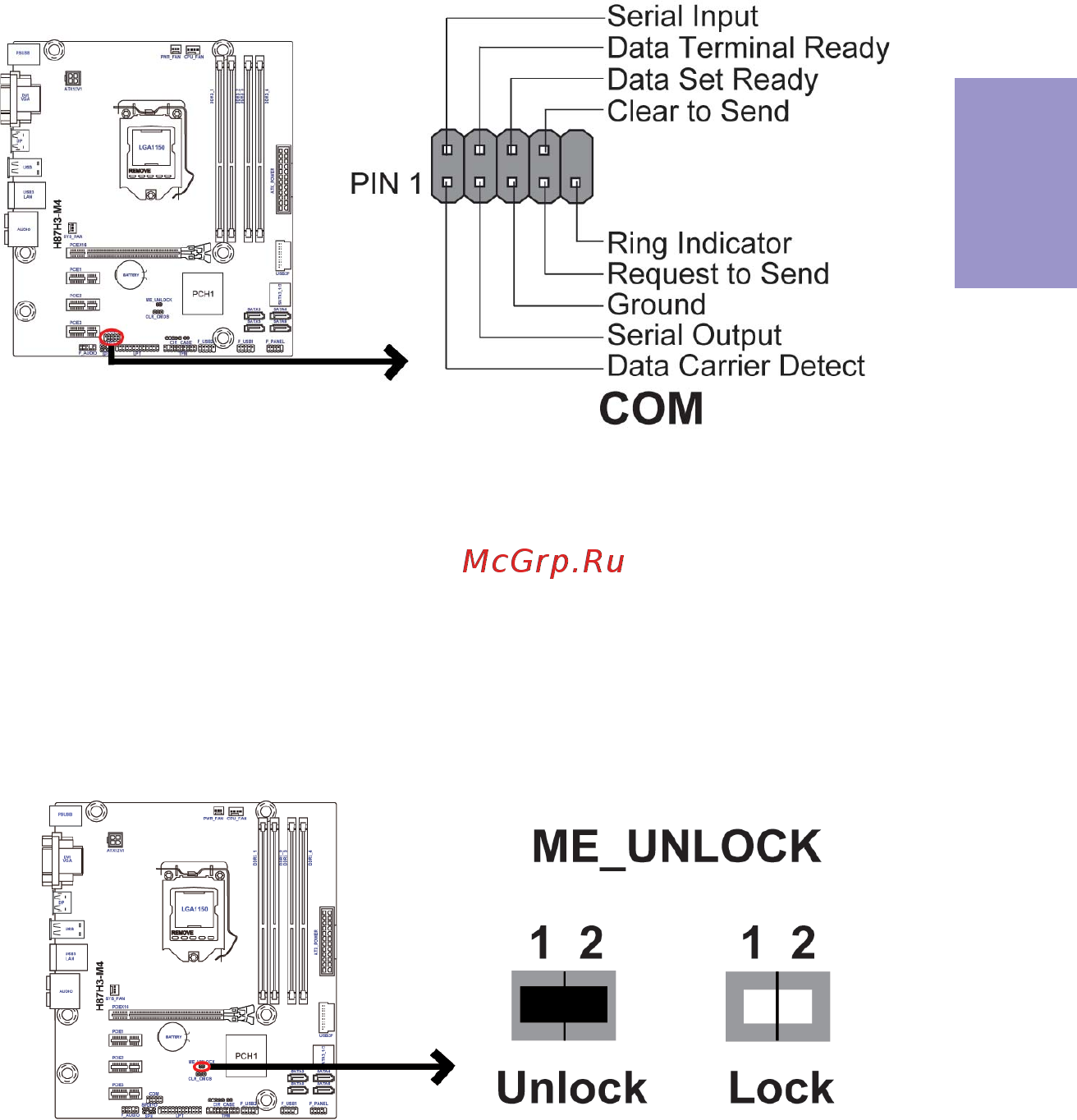

11. COM: Onboard Serial Port Header

Connect a serial port extension bracket to this header to add a serial port to your

system.
