Chapter 1

Z87H3-A4

USER MANUAL

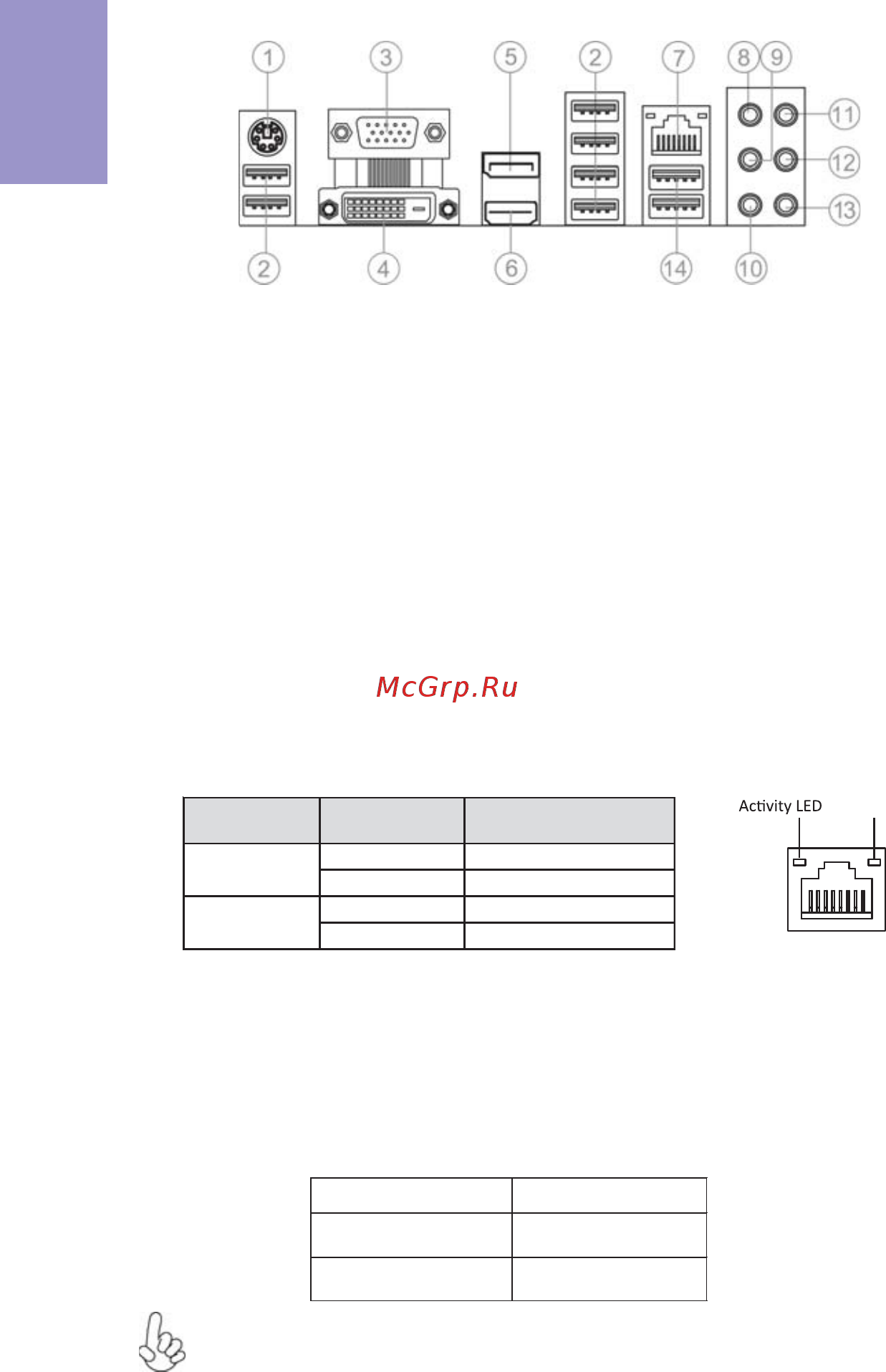

I/O Ports

1. PS/2 Combo port

Use the PS/2 combo port to connect the PS/2 Keyboard or PS/2 Mouse.

2. USB 2.0 Ports

Use the USB 2.0 ports to connect USB 2.0 devices.

3. VGA Port

Connect your monitor to the VGA port.

4. DVI Port

Connect your monitor to the DVI port.

5. Display Port (DP)

You can connect the display device to the display port.

6. HDMI Port

You can connect the display device to the HDMI port.

7. LAN Port

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

8~13. Audio ports

Use the audio jacks to connect audio devices. No.11 port is for stereo line-in signal,

while No.13 port is for microphone in signal. This motherboard supports 8-channel

audio devices that correspond to No.8, No.9, No.10 and No.12 port respectively.

In addition, all of the 3 ports, No.9, No.10, and No.12 provide users with both right

& left channels individually. Users please refer to the following note for specific

port function definition.

LAN LED Status Description

OFF No da ta

Orange blinking Active

OFF No link

Green Link

Activity LED

Link LED

LAN Port

8: Center & Woofer 11: Line-in

9: Back Surround 12: Front Out

10: Side Surround 13: Mic_in Rear

The above port definition can be changed to audio input or audio output by changing the

driver utility setting.

14. USB 3.0 Ports

Use the USB 3.0 ports to connect USB 3.0 devices.
