Chapter 2

Z87H3-A4 USER MANUAL

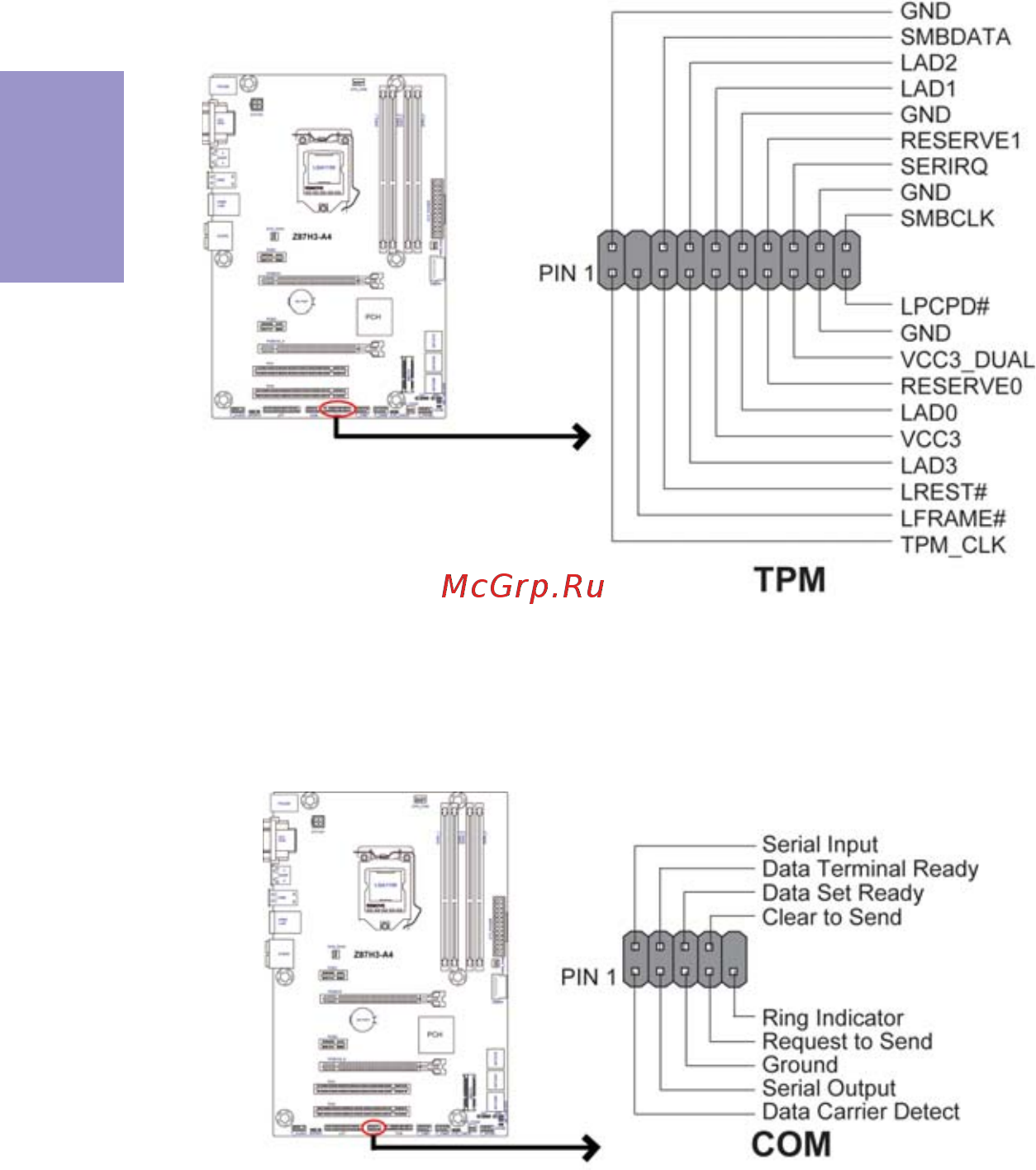

8. COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.

7. TPM: Trusted Platform Module header

Trusted platform module (TPM) is a published specification detailing a

microcontroller that can store secured information, and implementations of that

specification.
