Chapter 2

Z87H3-A4 USER MANUAL

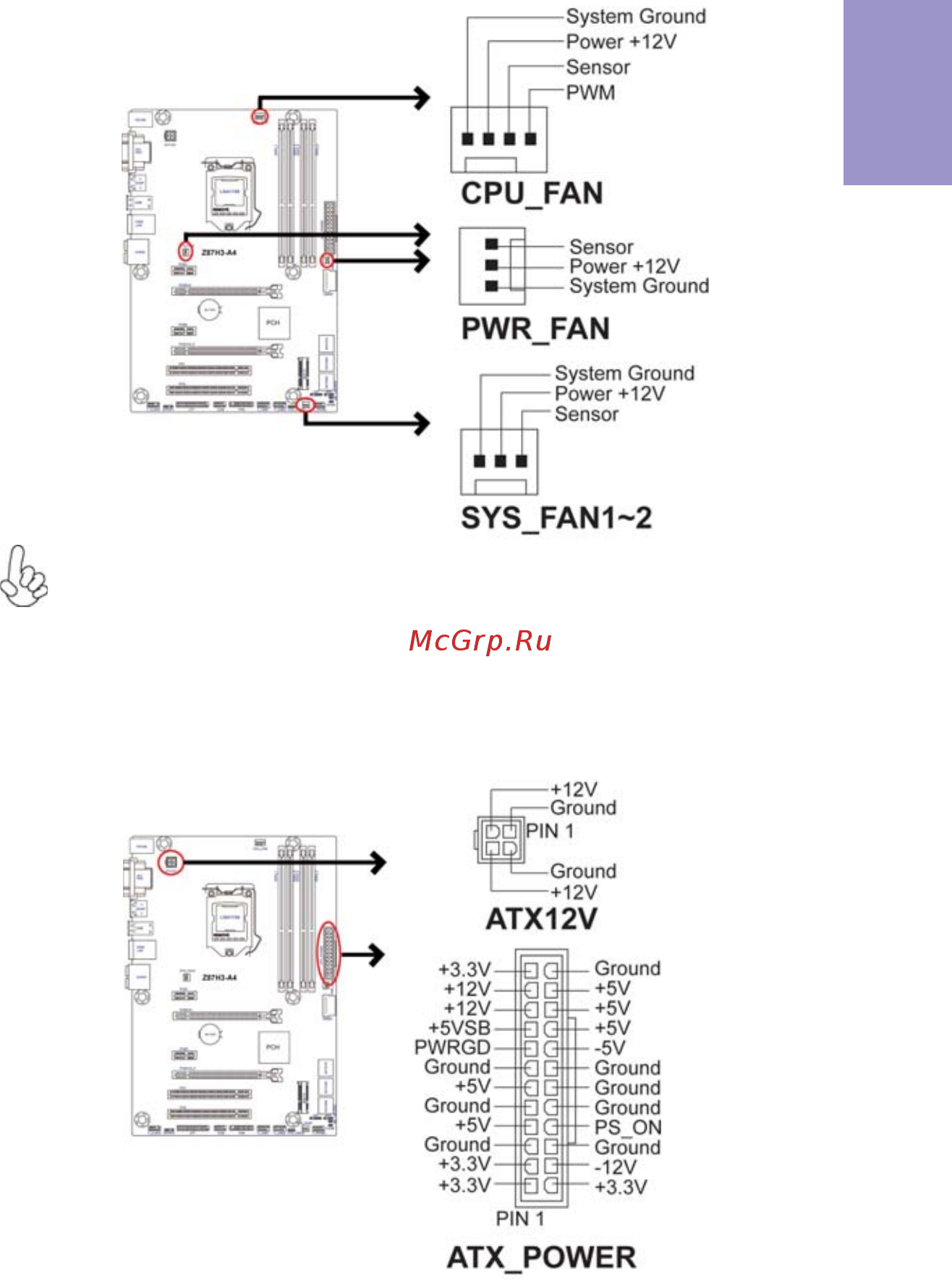

1. CPU_FAN (CPU cooling FAN Power Connector) & 3. PWR_FAN (Power Cool-

ing FAN Power Connector) & 6 & 7. SYS_FAN1~2 (System Cooling FAN Power

Connector)

Connect the CPU cooling fan cable to CPU_FAN.

Users please note that the fan connector supports the CPU cooling fan of 1.1A

~ 2.2A (26.4W max) at +12V.

Connect the system cooling fan connector to SYS_FAN.

Connect the power cooling fan connector to PWR_FAN.

2. ATX_POWER (ATX 24-pin Power Connector) & 7. ATX12V (ATX 12V Power

Connector)

Connect the standard power supply connector to ATX_POWER.

Connect the auxiliary case power supply connector to ATX12V.
