9
Installing the Motherboard
Checking Jumper Settings

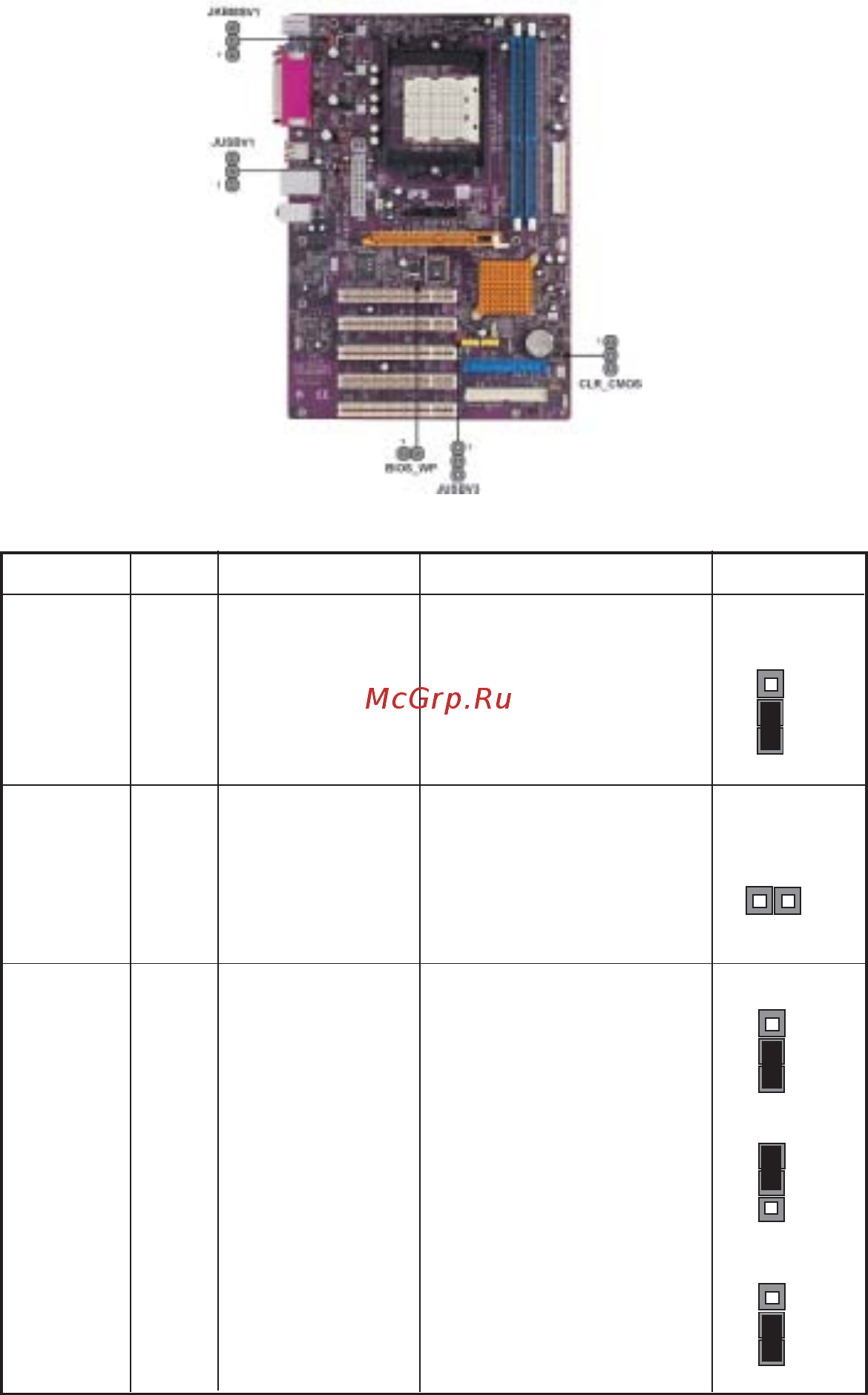

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
Type
Description
Setting (default)
CLR_CMOS
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn the system off.
3-pin
Power Source
Selection
JUSBV1/
JUSBV3/
JKBMSV1
CLR_CMOS
1
1-2: +5V
2-3: +5V Standby
Voltage
JUSBV3
1
JUSBV1
1
JKBMSV1
1
BIOS_WP 2-pin BIOS PROTECT
BIOS_WP
1
SHORT: WRITE DISABLE
OPEN: WRITE ENABLE
