17
Installing the Motherboard
Connecting Optional Devices

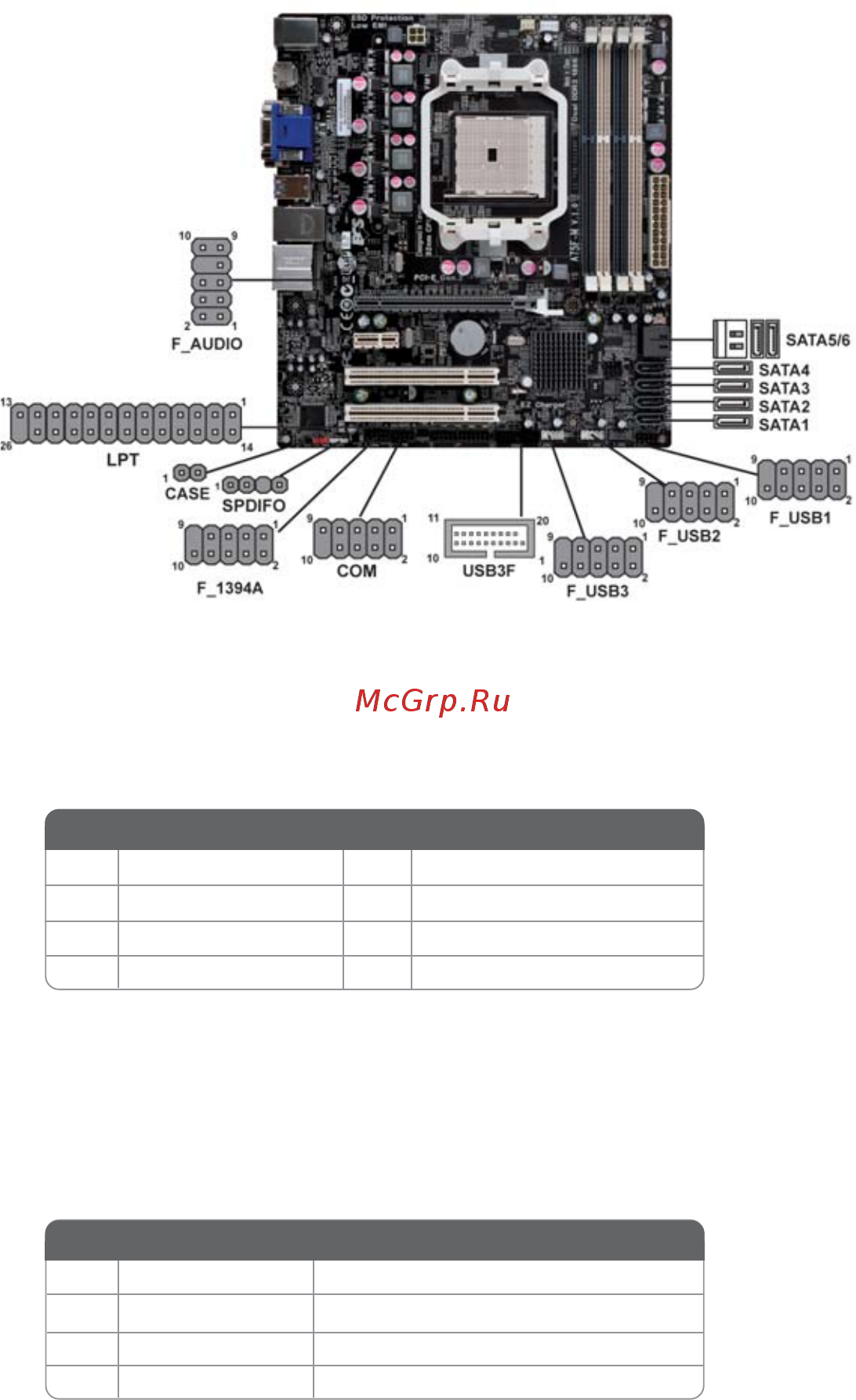

Refer to the following for information on connecting the motherboard’s optional
devices:
SATA1~6: Serial ATA connectors
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
7 Ground - -
Pin Signal Name
Pin Signal Name
These connectors are used to support the new Serial ATAIII devices for the highest
data transfer rates (6.0 Gb/s), simpler disk drive cabling and easier PC assembly. It
doubles the transfer rate of current SATA 3.0Gb/s interface.
SPDIFO: SPDIF out header
This is an optional header that provides an S/PDIF (Sony/Philips Digital Interface)
output to digital multimedia device through optical fiber or coaxial connector.
2 +5VA 5V analog Power
3 Key No pin
4 GND Ground
Pin Signal Name Function
1 SPDIF SPDIF digital output
