ECS Elitegroup H61H2-TI [13/66] H61h2 ti user manual

Chapter 2

H61H2-TI USER MANUAL

To avoid the system instability after clearing CMOS, we recommend users to

enter the main BIOS setting page to “Load Default Settings” and then “Save

and Exit Setup”.

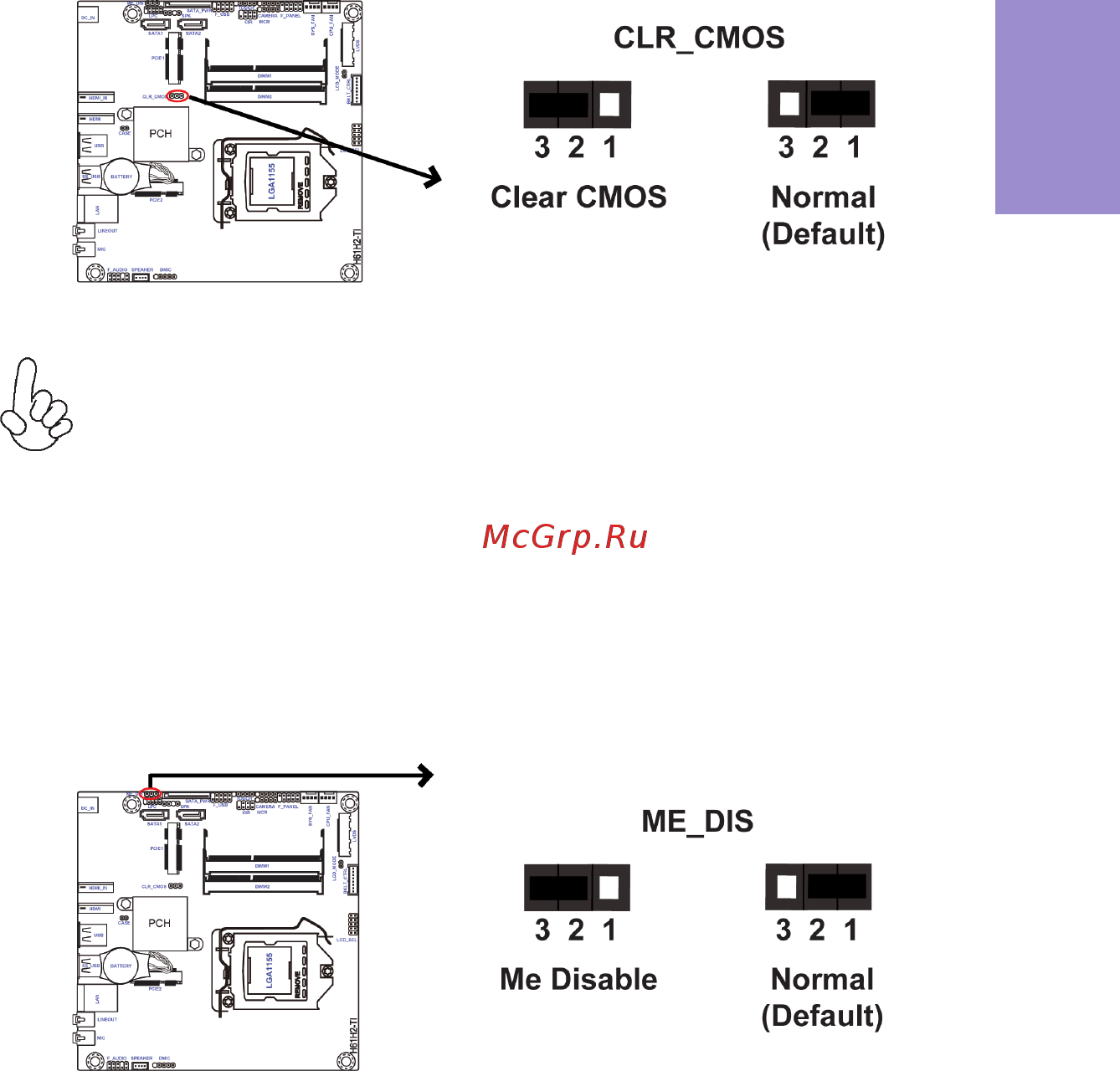

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

2. CLR_CMOS: Clear CMOS jumper

3. ME_DIS: ME enable/disable jumper
