Chapter 2

H61H2-TI USER MANUAL

2-4-5. Connecting Optional Devices

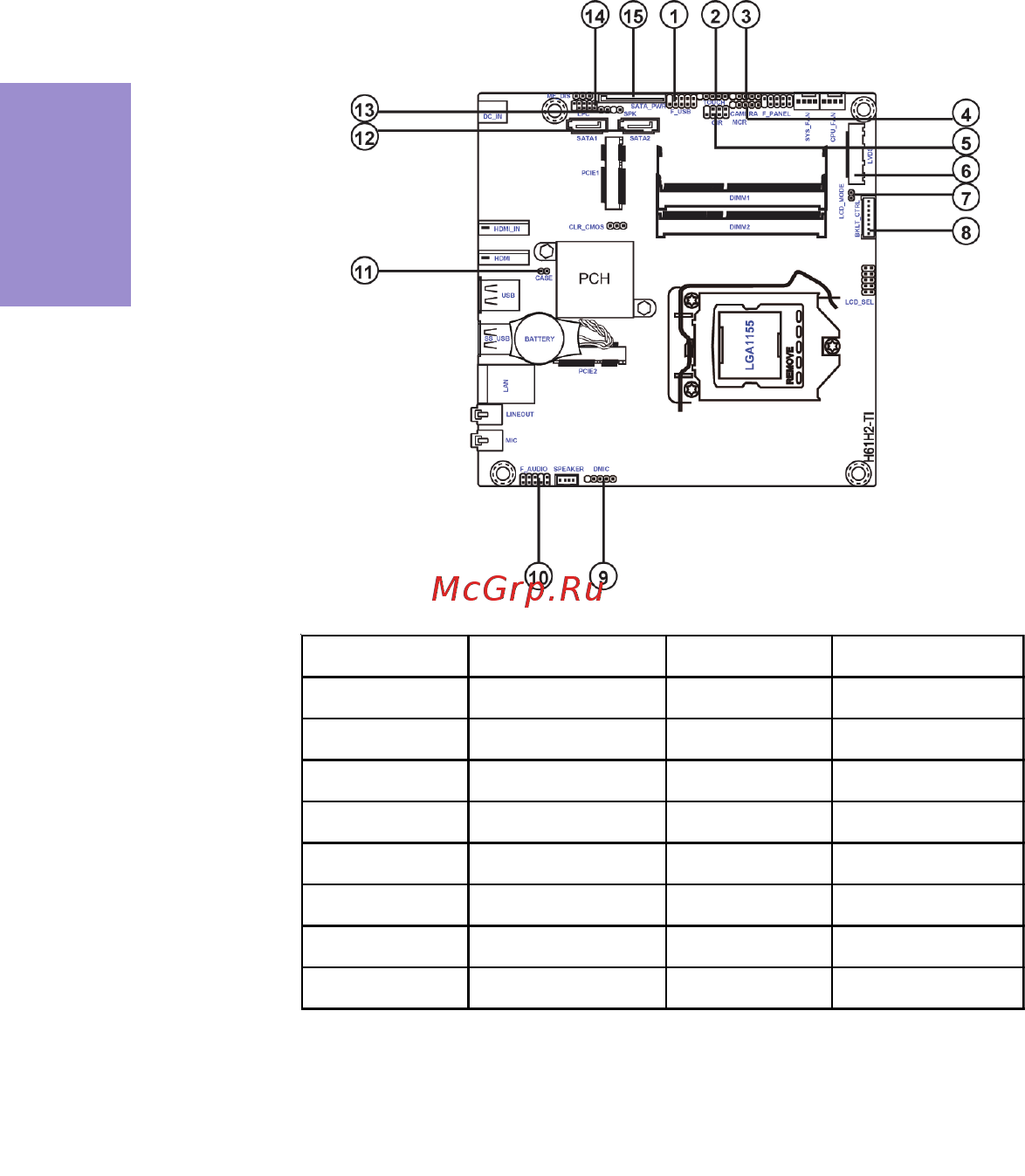

Refer to the following for information on connecting the motherboard’s optional

devices:

No. Components No. Components

1F_USB9DMIC

2TOUCH10F_AUDIO

3 CAMERA 11 CASE

4 MCR 12 SATA1~2

5CIR13SPK

6LVDS14LPC

7 LCD_MODE 15 SATA_PWR

8 BKLT_CTRL —— ——
