Chapter 2

H61H2-TI USER MANUAL

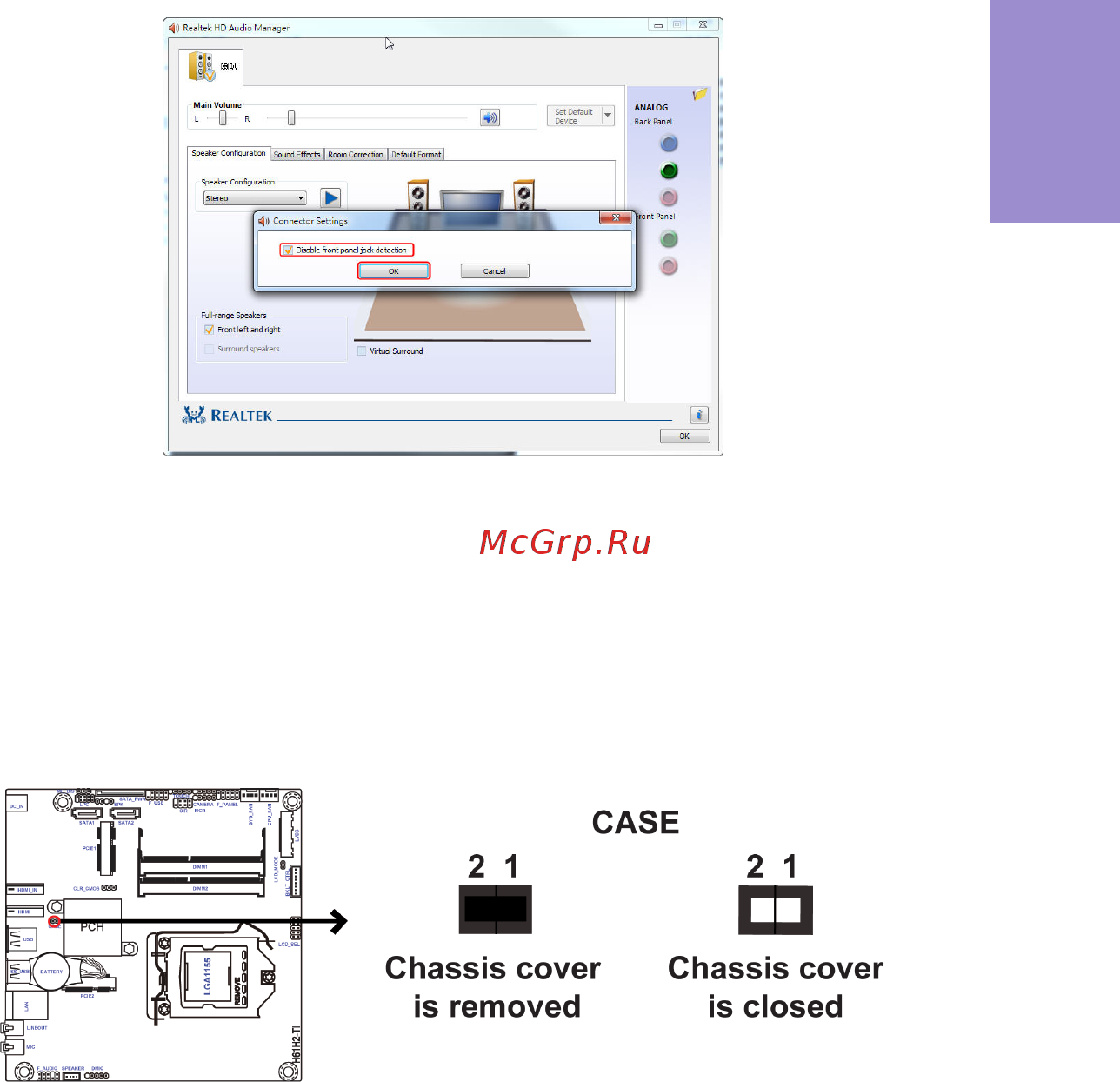

If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel

Detect ” . If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel

Detect ” .

* For reference only

AC’ 97 Audio Configuration: To enable the front panel audio connector to

support AC97 Audio mode.

11. CASE: Chassis Intrusion Detect Header

This detects if the chassis cover has been removed. This function needs a chassis

equipped with instrusion detection switch and needs to be enabled in BIOS.
