ECS Elitegroup Z77H2-AX [10/84] Z77h2 ax user manual

Chapter 1

Z77H2-AX USER MANUAL

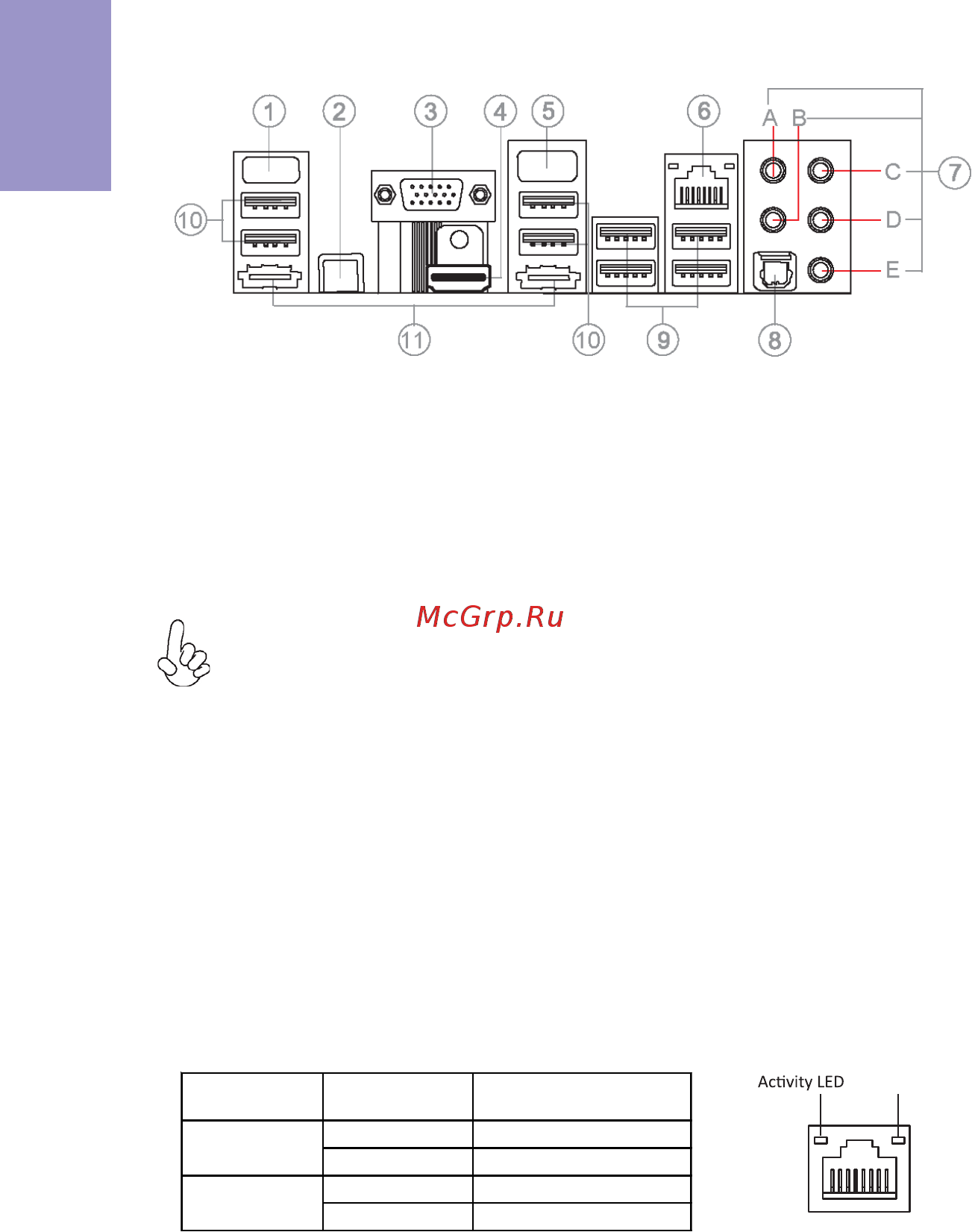

I/O Ports

1. Bluetooth Dongle

Use this port to transfer data between your computer and other devices which

support bluetooth function.

2. CLR_CMOS_BTN

Use the CLR_CMOS button to clear CMOS.

3. VGA Port

Connect your monitor to the VGA port.

4. HDMI Port

You can connect the display device to the HDMI port.

5. Wireless LAN Dongle

Use this port to receive wireless signal.

6. LAN Port

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

LAN LED Status Description

OFF No data

Orange blinking Active

OFF No link

Green Link

Activity LED

Link LED

LAN Port

Before clearing CMOS, make sure to turn off the power of the sytem.
