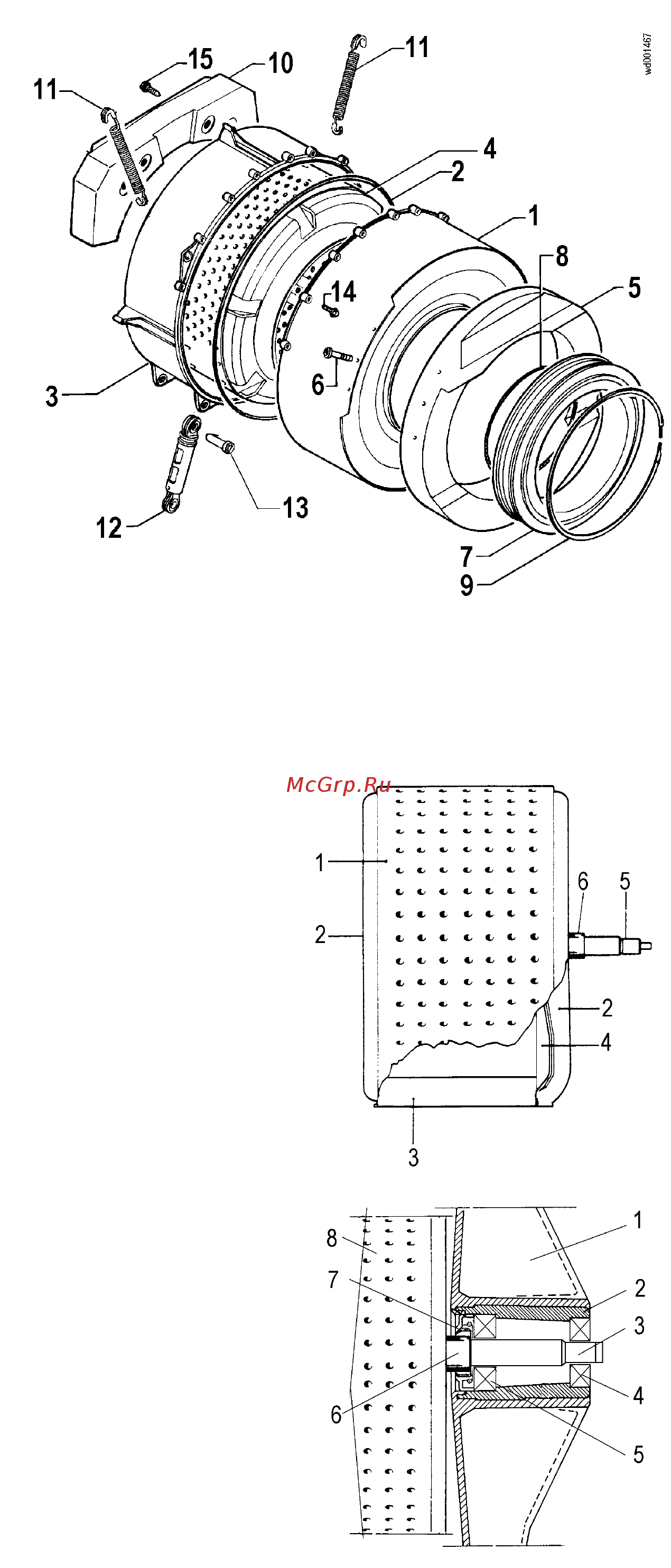

4.3 WASHING UNIT
1. Front shell
2. Gasket (OR)
3. Rear shell
4. Drum
5. Front counterweight
6. Counterweight fixing
screw
7. Door gasket
8. Tub gasket fixing ring
9. Cabinet gasket fixing ring
10. Rear counterweight
11. Washing unit suspension
springs
12. Damper
13. Damper pin
14. Shells fixing screws
15. Counterweight fixing
screw
The tub consists of two Carboran shells screwed among them with a series of self-tapping screws.
The two counterweights are fixed to the shells with screws.
The door gasket is fixed to the front shell through a metal spring ring.
The drum volume is 41 litres, which allows a load nominal capacity of 4,5 (maximum 5Kg).
The spin speed can be, according to each model from 400 to 1000 rpm.
4.3.1 Drum
The drum consists of a stainless-steel shell to which the two
flanges are fastened. Inside the drum there are the lifters.
The drum cross-piece, made of aluminium alloy is screwed to the
drum flange. A brass bush is pressed into the drum shaft.
1. Drum housing
2. Flange
3. Lifter
4. Drum cross-piece
5. Drum shaft
6. Drum shaft bush
4.3.2 Bearings support
1. Tub rear shell
2. Bearings support
3. Drum shaft
4. External bearing
5. Internal bearing
6. Drum shaft bush
7. Drum shaft gasket
8. Drum
