Zanussi FA 1023 [11/39] Hydraulic circuit

2001.07 eb 11 599 34 84-67

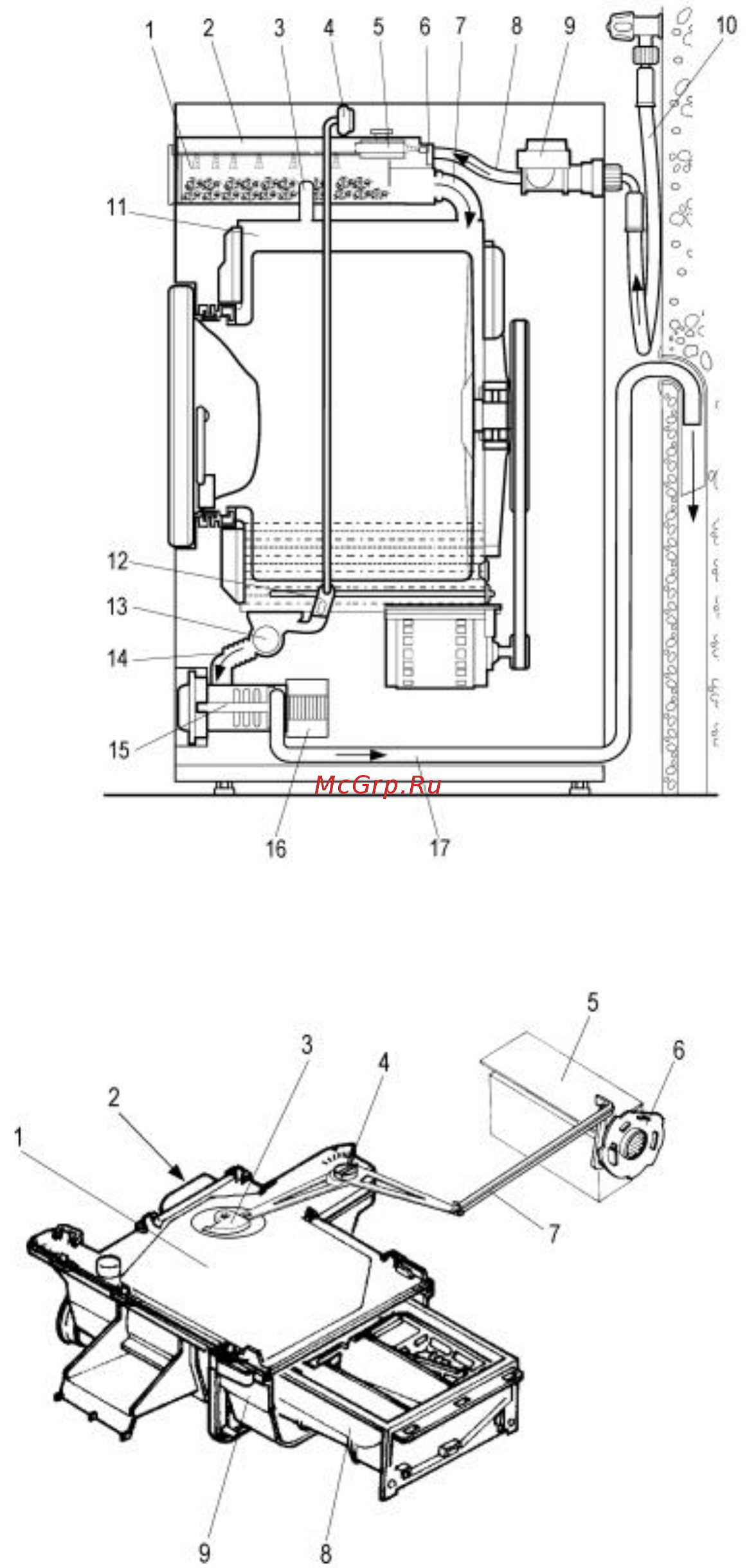

5 HYDRAULIC CIRCUIT

1. Detergent drawer

2. Dispenser conveyor

3. Steam tube (some models)

4. Pressure switch

5. Water distributor

6. Nozzle

7. Detergent inlet tube

8. Solenoid-to-dispenser tube

9. Water inlet solenoid

10. Water inlet tube

11. Tub

12. Pressure chamber

13. Ball

14. Tub-to-filter body tube

15. Drain filter

16. Drain pump

17. Drain tube

5.1 DETERGENT DISPENSER

1. Conveyor

2. Water intake

3. Water distributor

4. Regulation cam

5. Timer

6. Cam

7. Levers

8. Detergent drawer

9. Detergent dispenser

The water is conveyed to the water distributor through the intake nozzle. The distributor conveys water only

through one of the conveyor channels, according to the position of the timer cam during the washing cycle,

so as to draw the detergent from the relevant dispenser.
