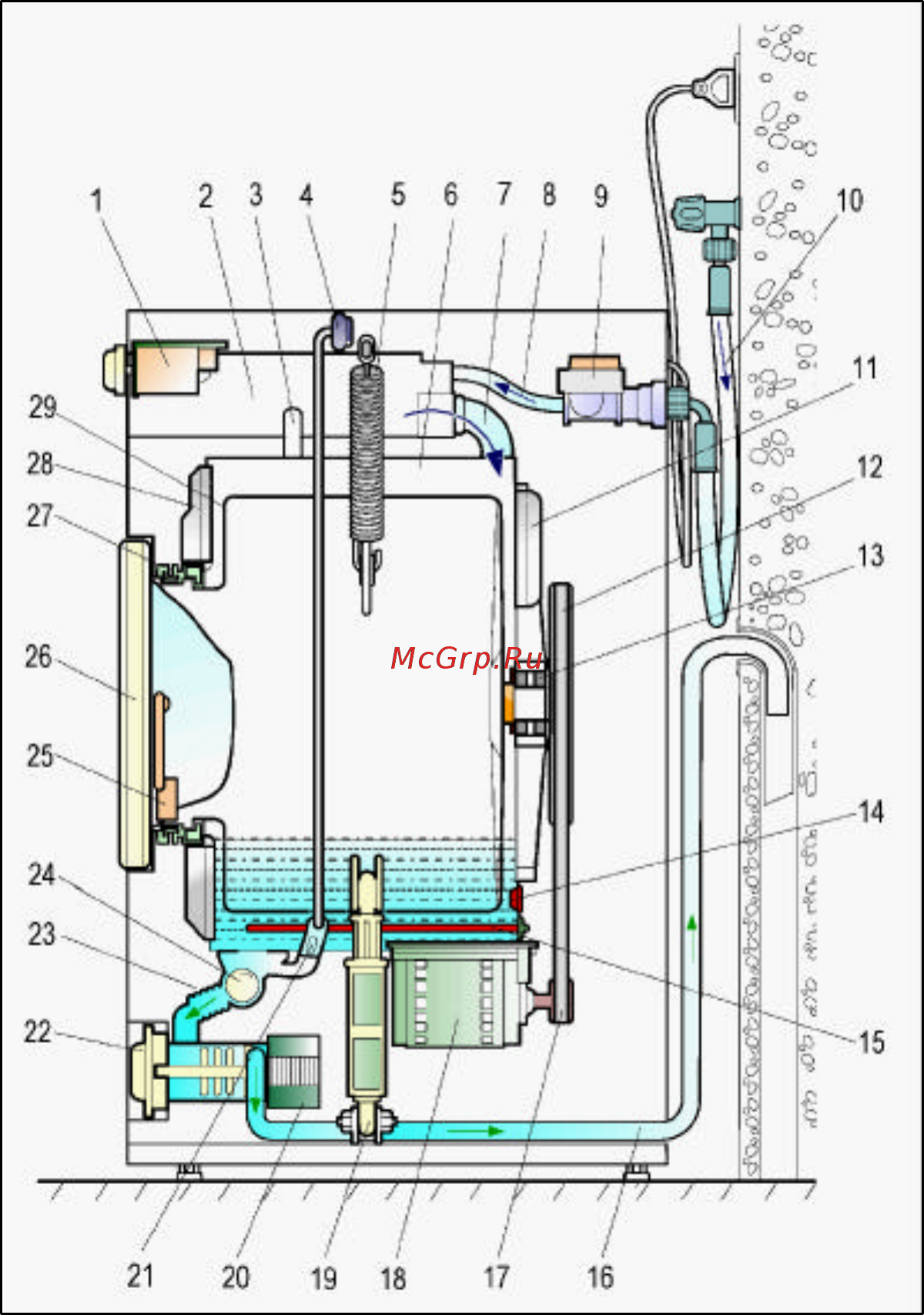

3.1 OPERATING PRINCIPLE

1. Timer

2. Detergent dispenser

3. Steam tube (some models)

4. Pressure switch

5. Tub suspension spring

6. Tub

7. Soap inlet tube

8. Solenoid-tub tube

9. Solenoid

10. Water inlet tube

11. Rear counterweight

12. Drum pulley

13. Bearings

14. Thermostat / Temperature probe

15. Heating element

16. Outlet tube

17. Motor pulley

18. Motor

19. Damper

20. Drain pump

21. Pressure chamber

22. Drain filter

23. Tub drain tube

24. Ball (eco-ball)

25. Door safety device

26. Door

27. Door seal

28. Front counterweight

29. Drum

Removing dirty from clothes is obtained through a mechanical and chemical action.

The solenoid valve fills water in the tub, where the soap is taken and then goes to the inside of the tub. The

correct level is determined by one or more pressure switches.

The fabrics loaded into the appliance are kept in continuous movement by the drum rotation.

The dirty particles, separated from the fabrics fibres by the soap chemical action and by the temperature are

removed by the water flux through the fibres themselves.

This action is obtained by continuous immersions and agitations of the fabrics to be washed in a lye bath.

The heating element is powered till the reaching of the prefixed temperature, which is controlled by

thermostats or sensors.

Once the washing is completed, the dirty water is drained by the special pump.
