ASUS A88XM-A/USB 3.1
2-7
Menu bar
Menu items
Pop-up window
Quick note
2.2.2 Advanced Mode

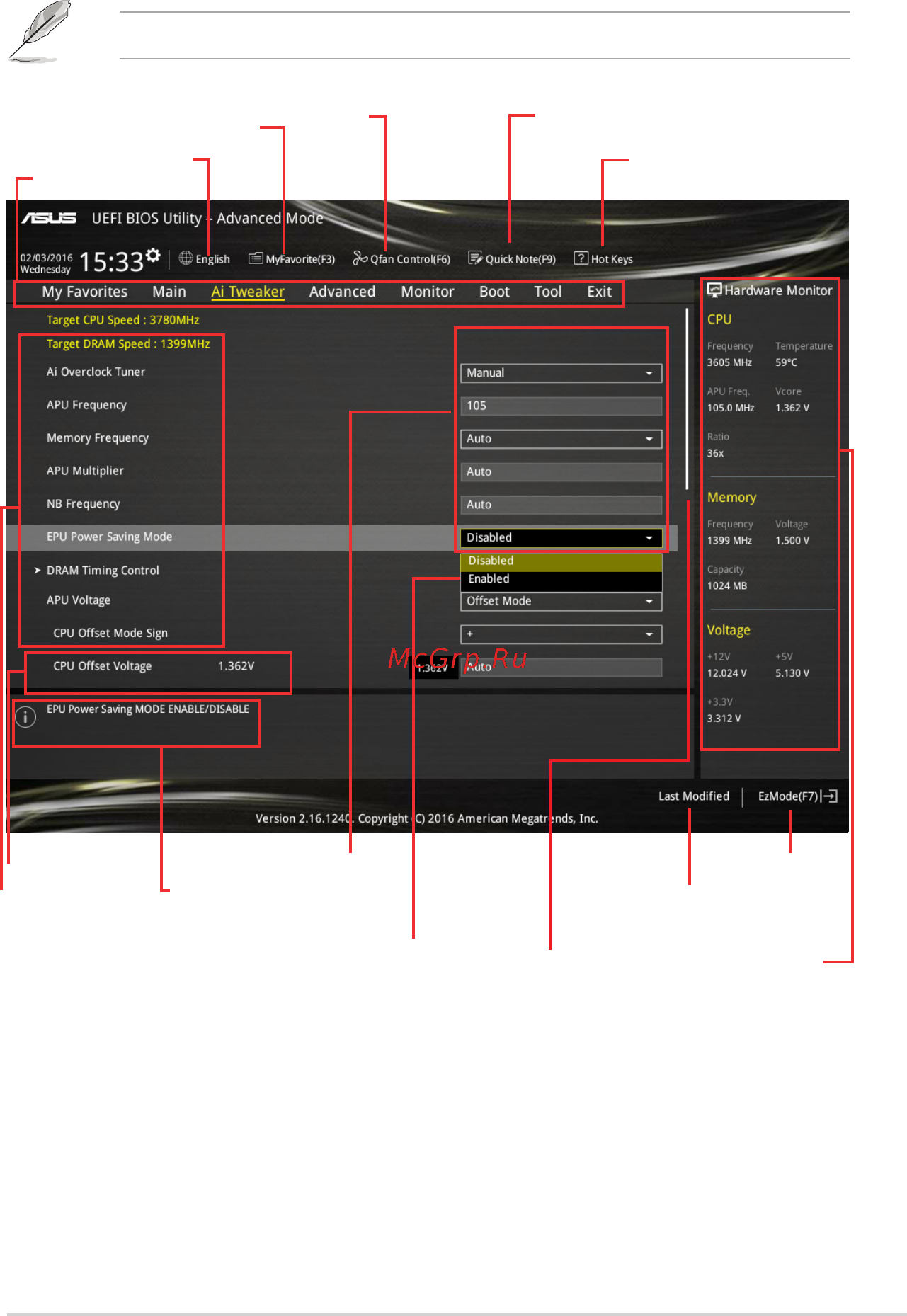

The Advanced Mode provides advanced options for experienced end‑users to congure the
BIOS settings. The gure below shows an example of the Advanced Mode.
To access the EZ Mode, click Exit, then select ASUS EZ Mode or press <F7>.
Goes back
to EZ Mode
Language
MyFavorite
Q-Fan control
Hot Keys
Displays the CPU
temperature, CPU and
memory voltage output
Sub-menu item
General help
Configuration fields
Scroll bar
Last modified
settings
