ASUS X99-E Series
2-11
Chapter 2

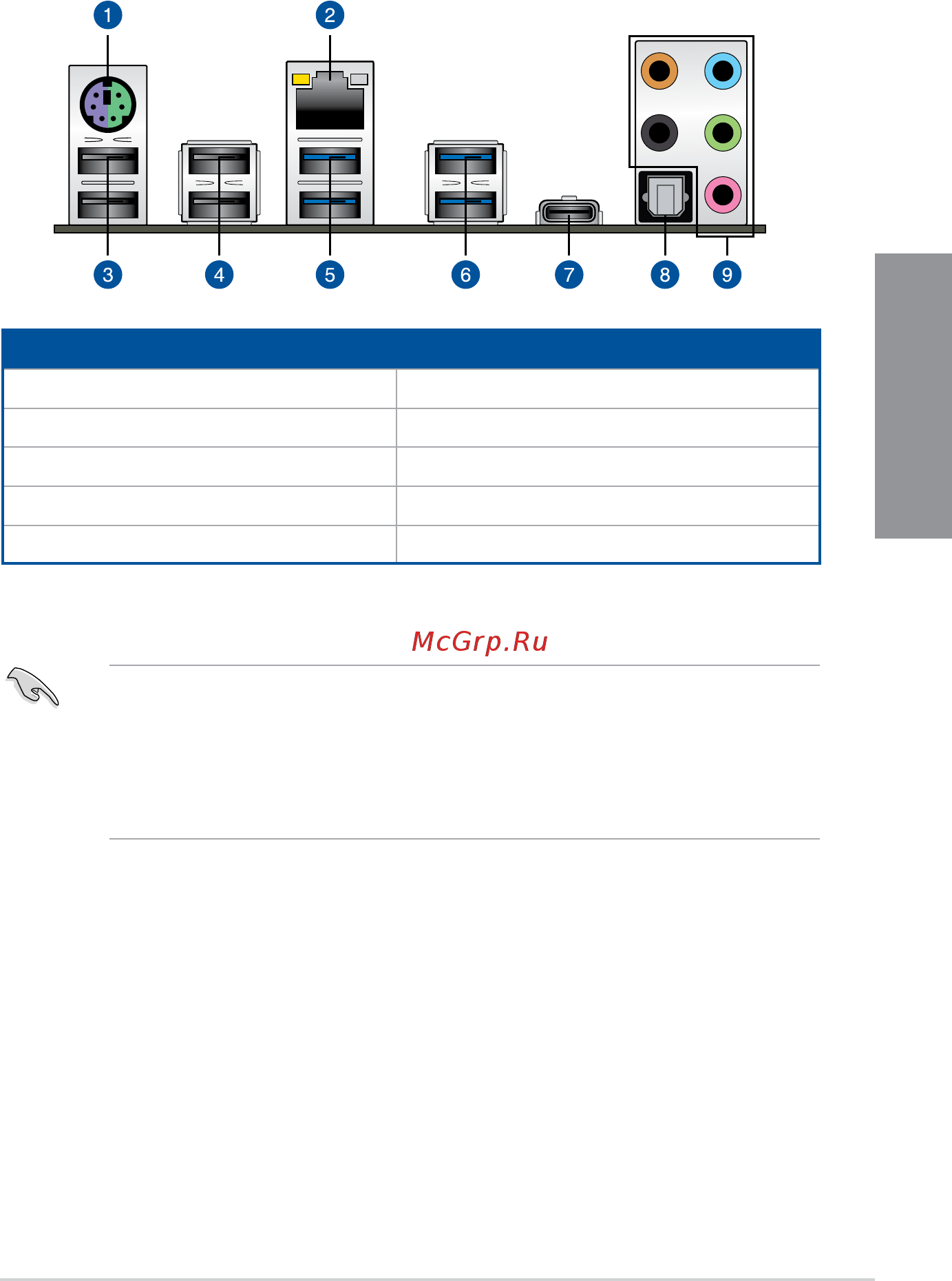

2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection
Rear panel connectors
1.
PS/2 keyboard/mouse port 6. USB3.0portsE2_3
2.
Intel
®
LAN port* 7. USB3.1Type-CportEC1
3.
USB2.0ports78 8. Optical S/PDIF Out port
4.
USB 2.0 ports 910 9. Audio I/O ports**
5. USB3.0portsE34
* and ** : Refer to the tables on the next page for LAN port LEDs and audio port definitions.
• ThepluggedUSB3.0devicemayrunonxHCImodeorEHCImode,dependingonthe
operating system’s setting.
• USB3.0devicescanonlybeusedasdatastorageonly.
• WestronglyrecommendthatyouconnectUSB3.0devicestoUSB3.0portsforfaster
and better performance for your USB 3.0 devices.
