2-24

Chapter 2: Hardware information

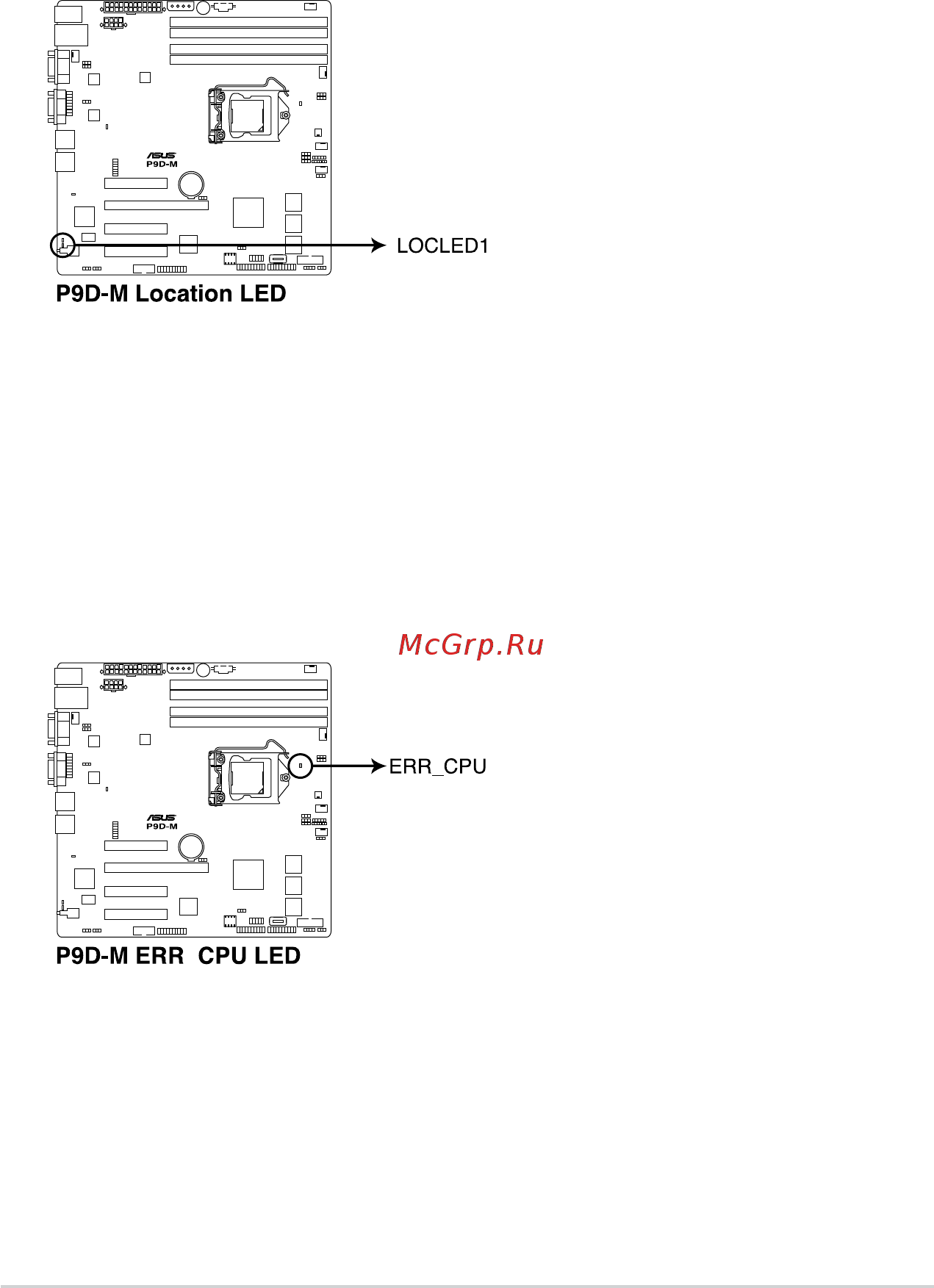

3 Locator LED (LOCLED1)

The Locator LED is a user-activated LED on the front of the server module

that can be remotely turned on or off. It is used to nd a specic server

module within a chassis.

4. CPU Warning LED (ERR_CPU1)

The CPU warning LED lights up to indicate that a CPU error or failure has

occurred.
