ASUS P9D-M Series

2-25

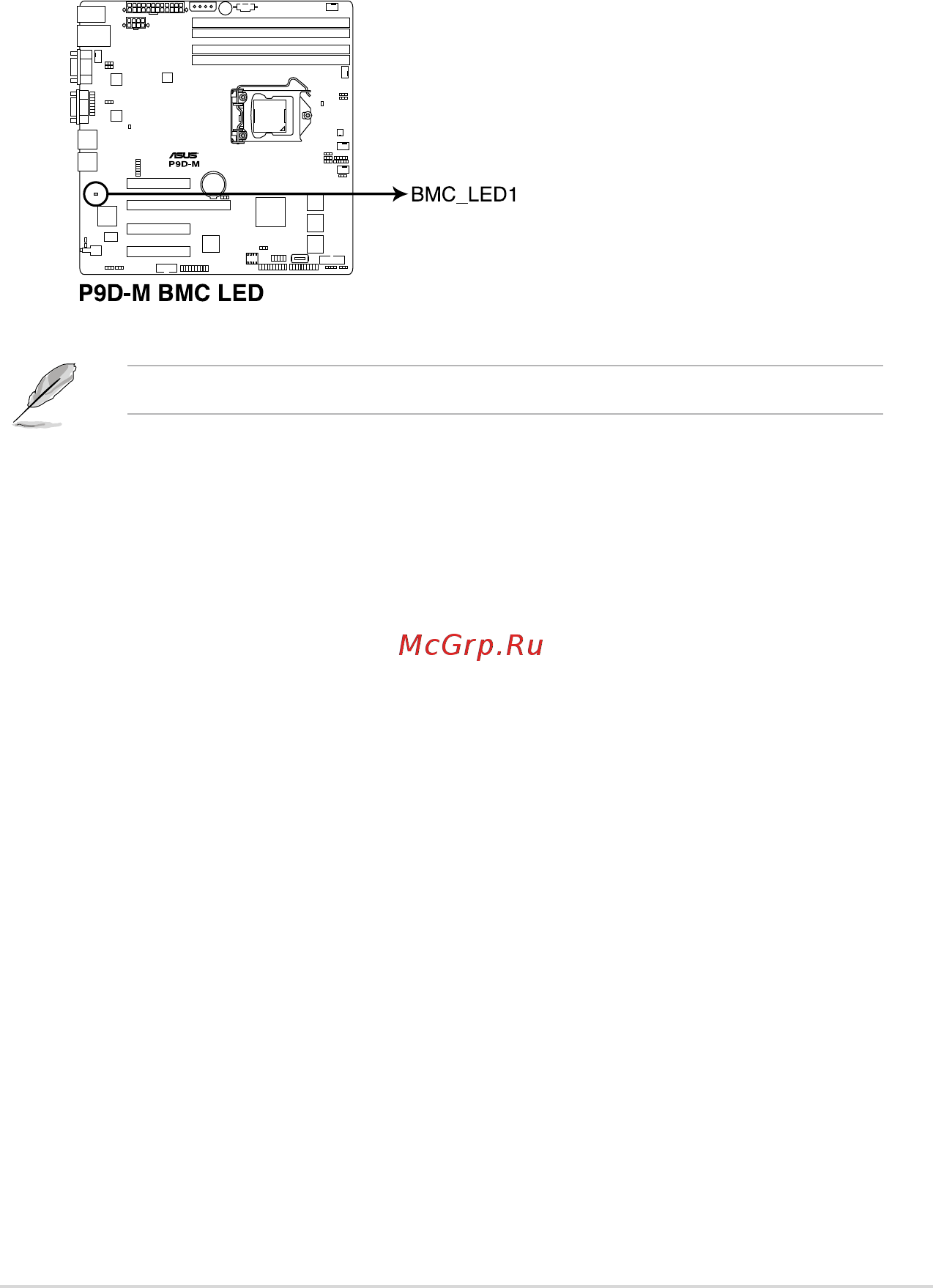

5. Baseboard Management Controller LED (BMC_LED1)*

The green heartbeat LED blinks per second to indicate that the ASMB7 is

working normally.

*P9D-M and P9D-MV models only.
