104

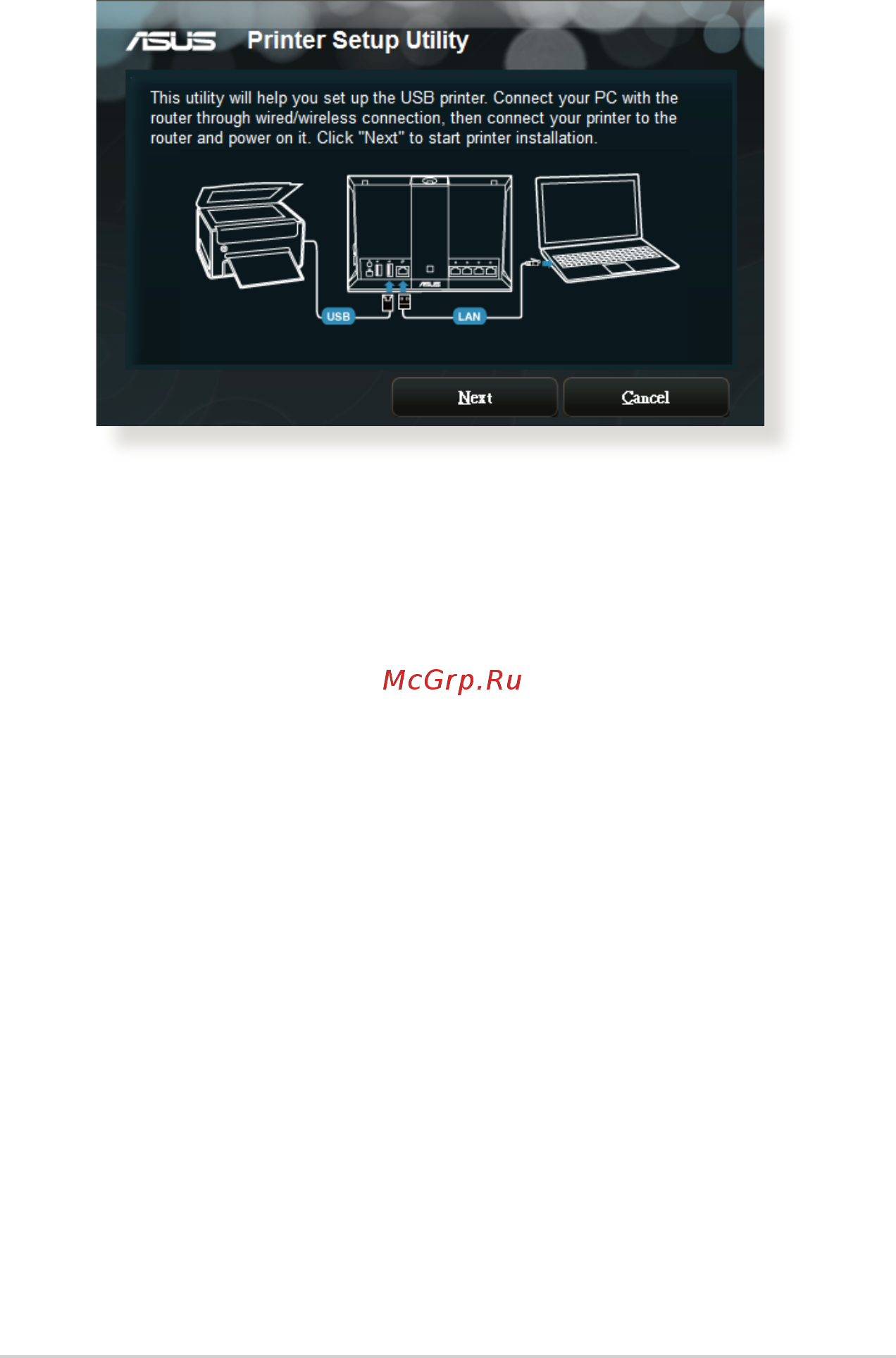

4. Follow the onscreen instructions to set up your hardware,

then click Next.

5. Wait a few minutes for the initial setup to ﬁnish. Click Next.

6. Click Finish to complete the installation.
