105

8. After the printer’s driver installation is complete, network

clients can now use the printer.

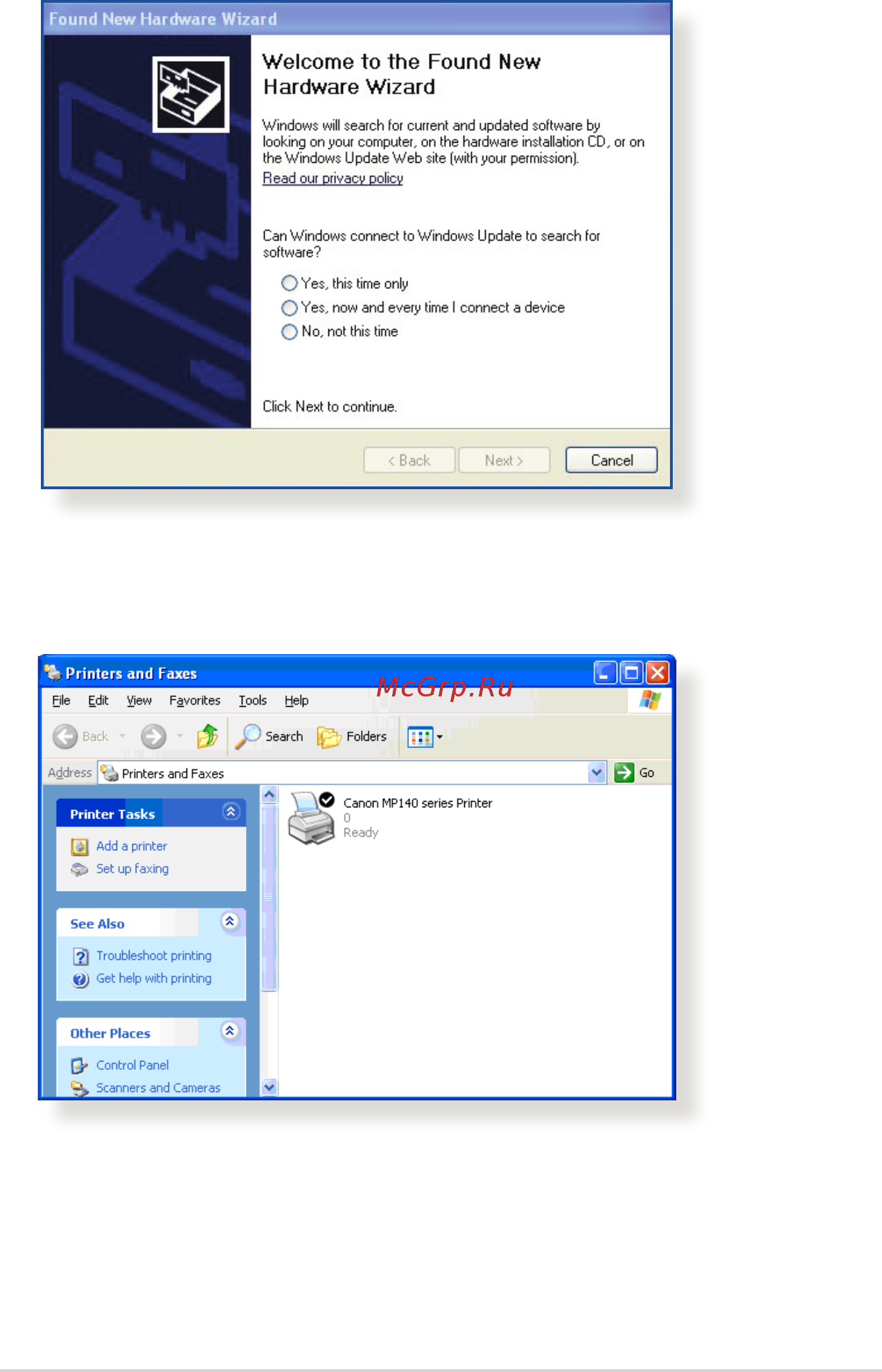

7. Follow the Windows

OS instructions to install the printer

driver.
