7
Catalyst 2960-S Switch Getting Started Guide
OL-19793-02
Catalyst 2960-S Switch Getting Started Guide
Step 5

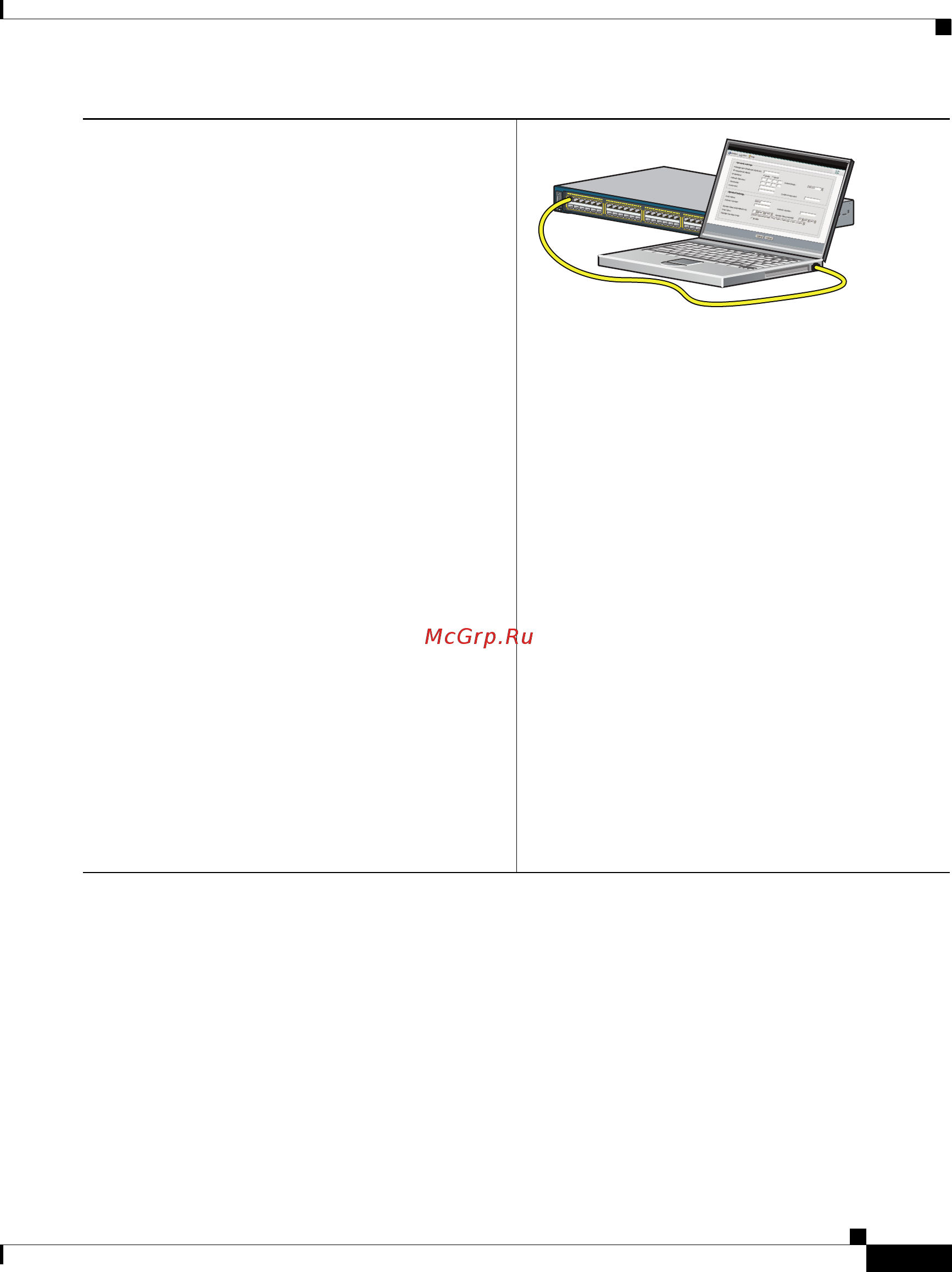

Connect a Category 5 or 6 Ethernet cable to
one of these locations:
• Any 10/100 or 10/100/1000 Ethernet
downlink port (such as port 1) on the
switch front panel.
• The Ethernet management port on the
switch front panel.
Connect the other end of the cable to the
Ethernet port on your PC.
Before proceeding to the next step, wait until
the port LEDs on the switch and your PC or
laptop are green (either solid or blinking).
The green port LEDs indicate a successful
connection.
Troubleshooting:
If the port LEDs do not turn green after about
30 seconds, make sure that:
• You connected the Ethernet cable to one
of the downlink switch ports (not to an
uplink port such as the dual-purpose
port).
• You are using an undamaged Category 5
or 6 Ethernet cable.
• The other device is turned on.
Catalyst 2960XS
Se
ri
es
PoE 10G
11X
2
X
1
X
11X
14X
12X
1
3X
23X
2
4X
25
X
26
X
37X
3
9
X
36X
3
8
X
47X
48
X
1
2
206228
