General Installation Process
B
C

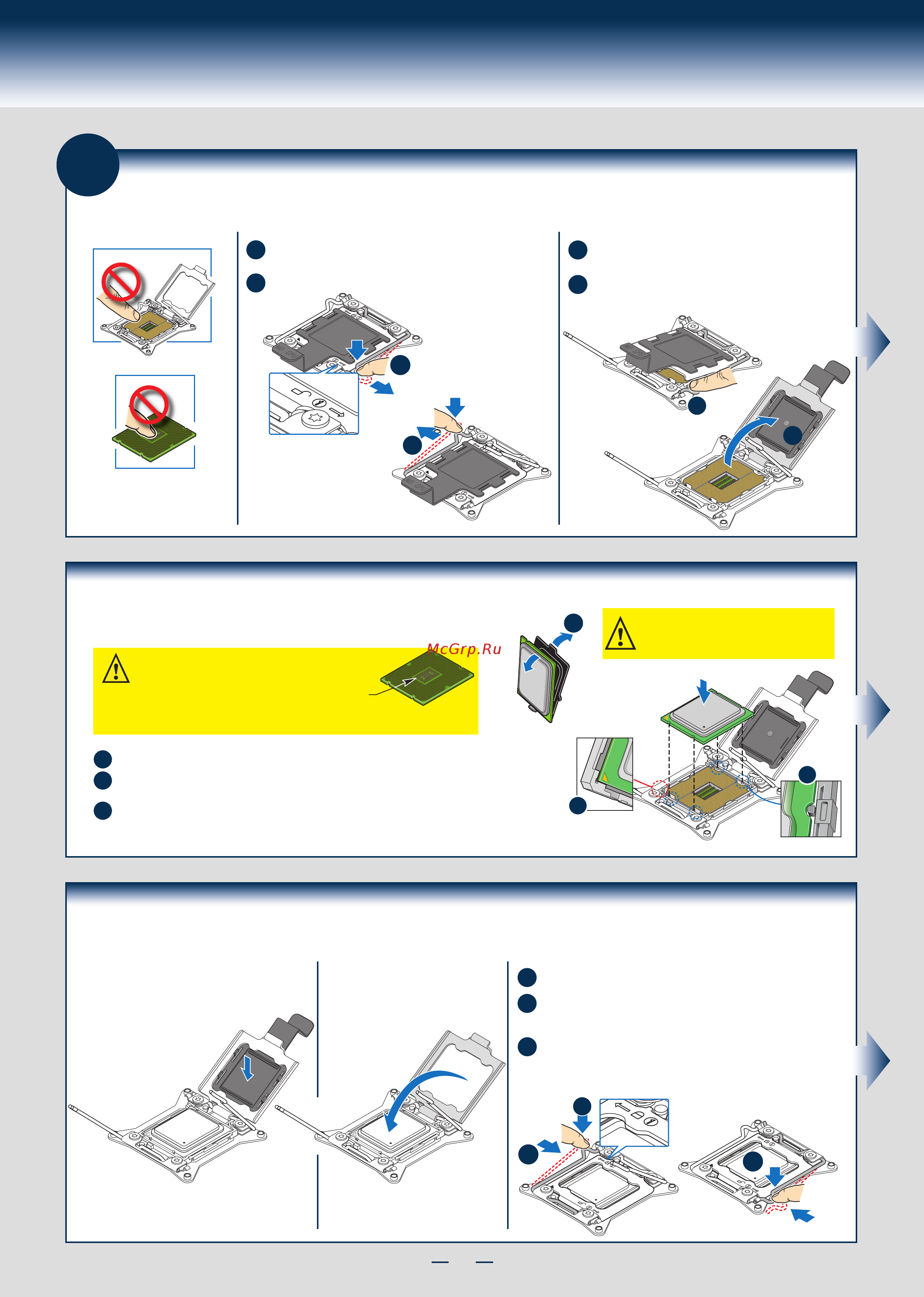

Install the Processor(s) ... continued
C. Install the Processor
Take the processor out of the box and remove the protective shipping cover.
CAUTION: When unpacking a processor,
hold by the edges only to avoid touching
the gold contact pins.
Save the
protective
cover.
A
CAUTION: The underside of the processor has
components that may damage the socket pins
if installed improperly.
Processor must align correctly with the socket opening before installation.
DO NOT DROP processor into socket!
Components
Note location of gold key at corner of processor.
A
B
C
Orient the processor with the socket so that the processor cutouts match the four orientation
posts on the socket.
B
5
OPEN 1st
CLOSE 1st
A
NO CPU
Install the Processor(s)
A. Open the Socket Lever B. Open the Load Plate
A
B
Repeat step A to release the lever on the other side.
Push down the lever and slide away from the socket to
release it.
A
B
Open the load plate all the way.
Press the locking lever slightly to raise the
load plate.
NOTE: Release
the levers in the
order as shown.
OPEN 1st
A
FOXCONN LGA2011 ILM 17562
NO CPU
B
NO CPU
Save the
protective
cover.
Install the Processor(s) ... continued
D. Remove the Cover
Press the cover to
remove it.
Carefully lower the load plate over
the processor.
E. Close the Load Plate
Push down the locking lever.
F. Latch the Locking Lever
A
B
Slide the tip of the lever under the notch in the load plate.
Make sure the load plate tab engages under the socket lever
when fully closed.
C
Repeat the steps to latch the locking lever on the other side.
NOTE: Latch the levers in
the order as shown.
FOXCONN LGA2011 ILM 17562
B
A
C
