CONNECTION/INSTALLATION
CONNECTION/INSTALLATION
Installation procedure
1 To prevent a short circuit, remove the key
from the ignition and disconnect the ·
battery.
2 Make the proper input and output wire
connections for each unit.
3 Connect the speaker wires of the wiring
harness.
4 Connect the wiring harness wires in the
following order: ground, battery, ignition.
5 Connect the wiring harness connector to
the unit.
6 Install the unit in your car.
7 Reconnect the · battery.
8 Press the reset button.
9 Configure <Initial Setup>. (Page4)

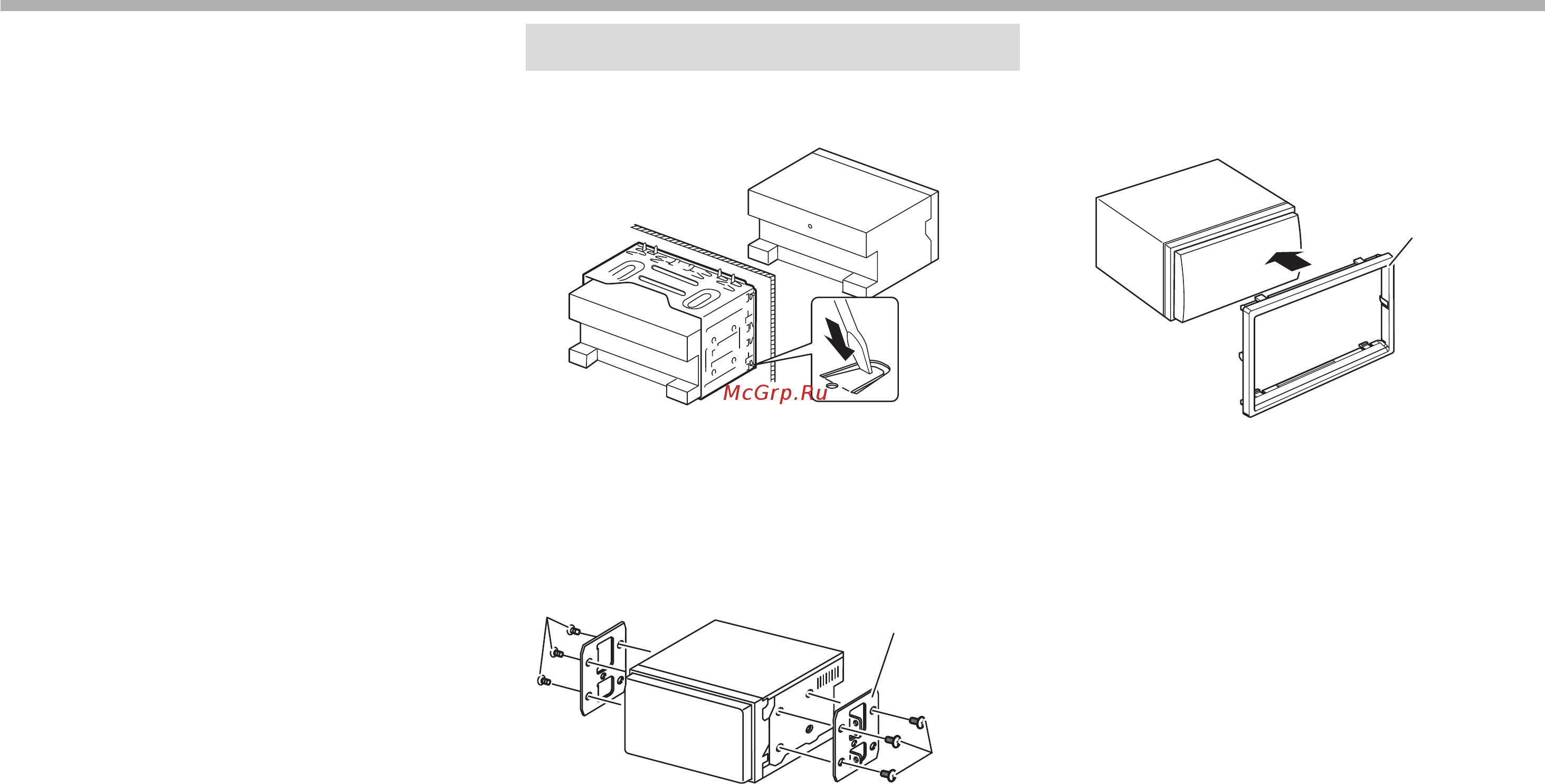

Installing the unit
Installing the unit (only for KW-V51BT
Region 4/KW-V31BT Region 4)
• Bend the tabs of the mounting sleeve with a
screwdriver or similar utensil and attach it in place.
When installing the unit using the
mounting bracket removed from the
car
Car Bracket
5 or 6
5 or 6
• Select the appropriate type of screw for the
mounting bracket: flat head (5) or round head
(6).
Installing the trim plate (only for
KW-V51BT Region 4/KW-V31BT
Region 4)
1 Attach the trim plate (2).
2
