ENGLISH 57
CONNECTION/INSTALLATION
CONNECTION/INSTALLATION

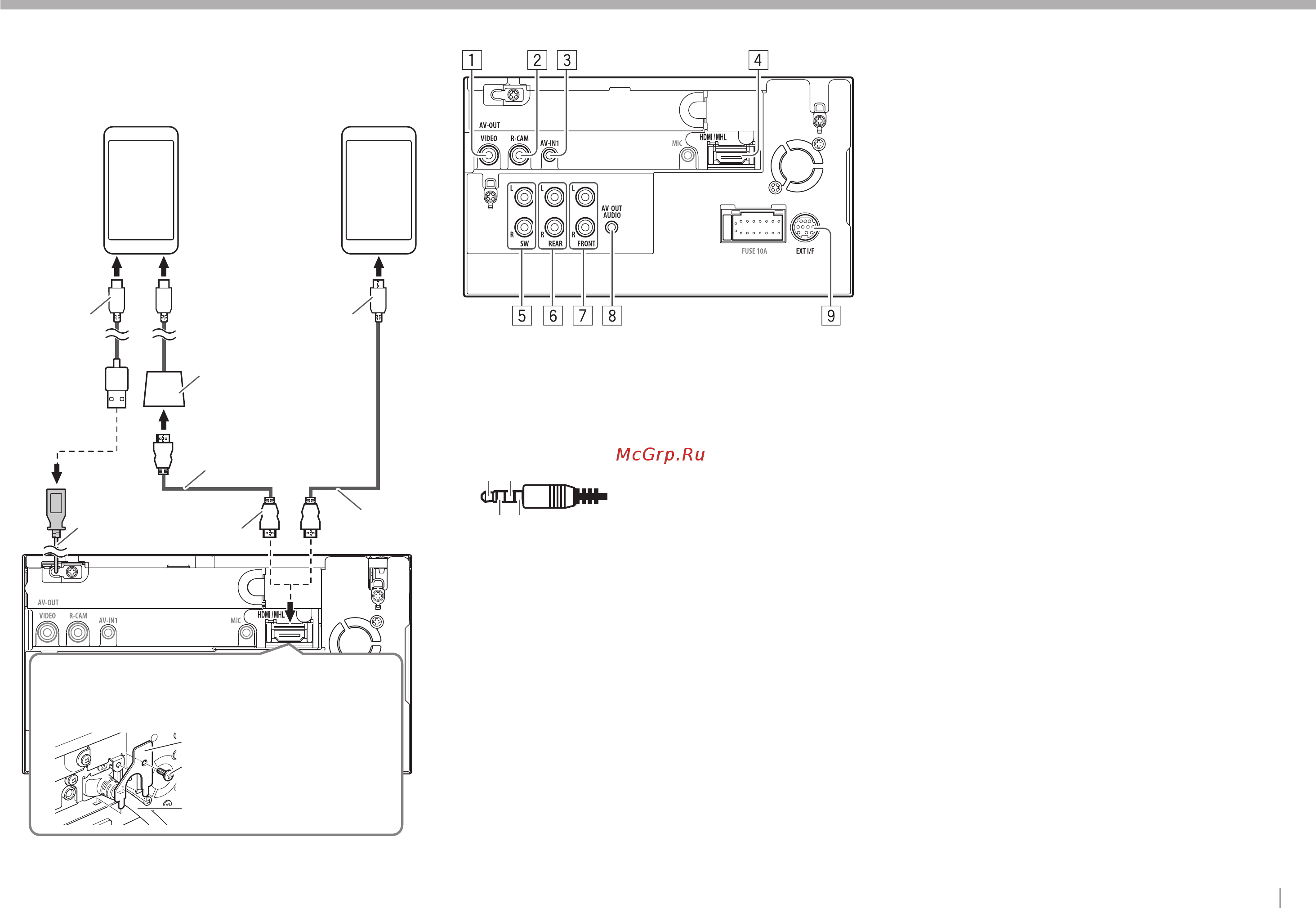

Connecting a Smartphone
Android, etc.
(with HDMI)
(commercially available)
Android, etc.
(with MHL)
(commercially available)
Micro USB Micro HDMI (Type D)
Micro HDMI to HDMI
adapter (commercially
available)
KS-U60
(optional accessory)
Micro USB to
USB cable
(commercially
available)
KS-U61
(optional accessory)*
HDMI/MHL cable
8
9
If you connect the HDMI/MHL connector, fix the HDMI/MHL
cable using the fixture (8) and screw (9).
1.8 m
1.8 m
0.8 m
* Use conversion adapter to connect to smartphones if necessary.
Connecting external components
1 AV-OUT/Video output (Yellow)
2 Rear view camera input (Yellow)
3 Audio Video input (AV-IN)
• Connect the following type of 4-pole mini
plug:
1
24
3
1 Left audio
2 Right audio
3 Ground
4 Composite video
4 HDMI/MHL input
5 Subwoofer preout (monaural output)*
1
• Subwoofer left output (White)
• Subwoofer right output (Red)
6 Rear preout*
1
• Audio left output (White)
• Audio right output (Red)
7 Front preout*
1
• Audio left output (White)
• Audio right output (Red)
8 AV-OUT/ Audio output (ø3.5 mini plug)
Resistance-free stereo type mini plug
9 Expansion port for connecting SiriusXM Connect
Vehicle Tuner (commercially available)*
2
*
1
When connecting an external amplifier, connect its ground wire to
the chassis of the car; otherwise the unit may be damaged.
*
2
Only for KW-V51BT Region 1/KW-V31BT Region 1.
