Appendix A. CRU instructions

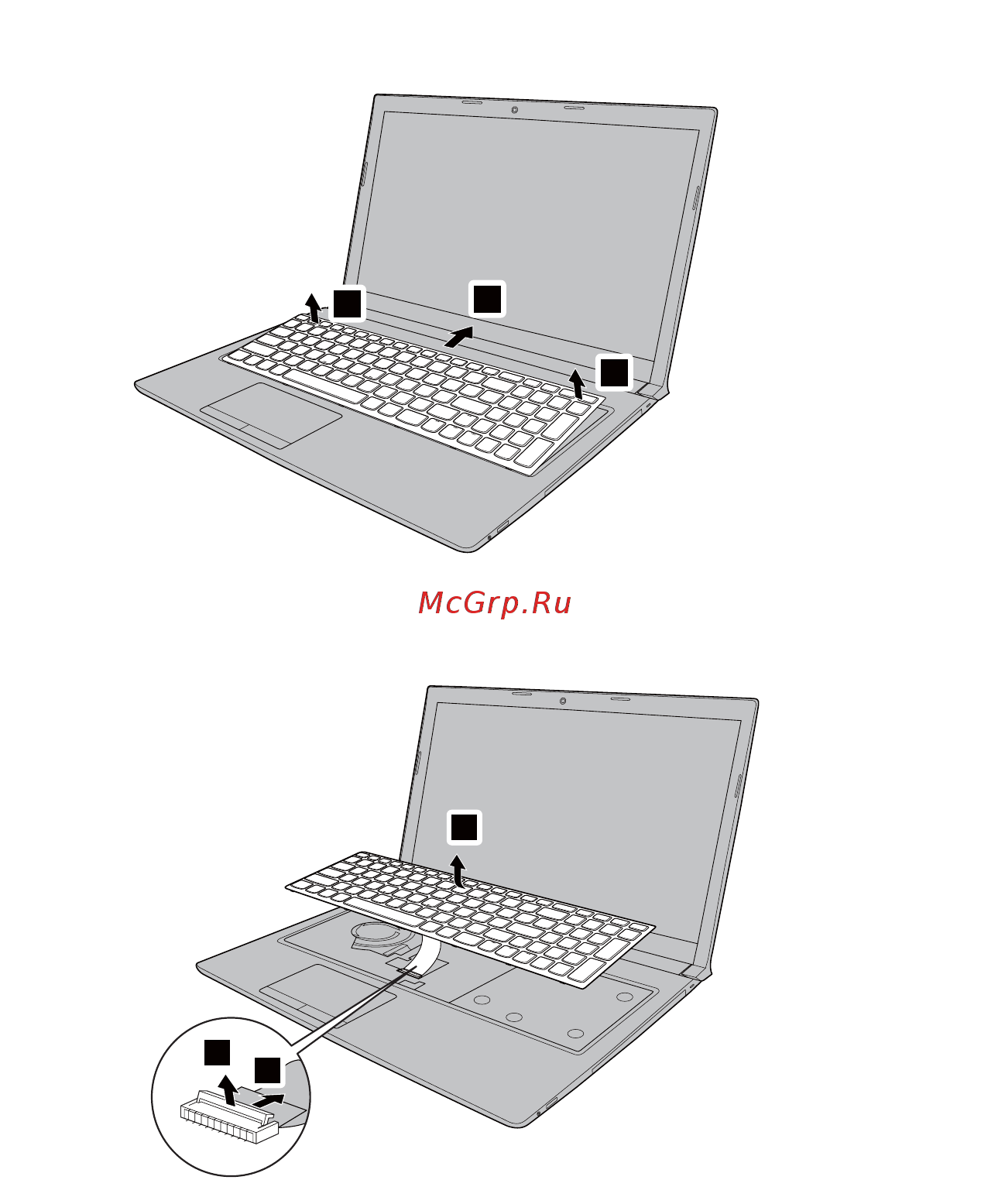

Pull to unsnap the keyboard in the direction as shown by the arrows

Lift up the keyboard and detach the connector in the direction shown

by the arrows .

Reinstall the new keyboard and tighten the screws.

Reinstall the battery pack. For details, see “Replacing the battery pack” on

page 33.
