11

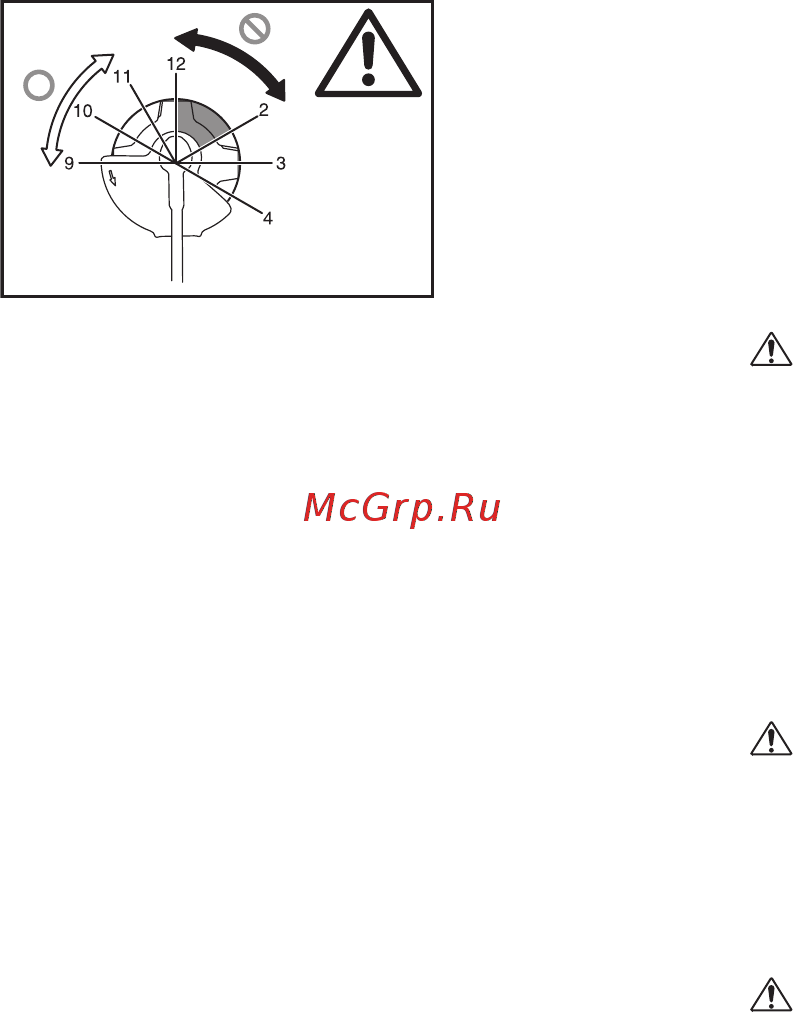

3. Toavoidkickback:
− Applythesegmentbetween8and11o’clock.
− Never apply the segment between 12 and 2
o’clock.
− Never apply the segment between 11 and 12
o’clockandbetween2and5o’clock,unlessthe
operator is well trained and experienced and
doesitathis/herownrisk.
− Neverusecuttingbladesclosetosolids,suchas
fences,walls,treetrunksandstones.
− Never use cutting blades vertically, for such
operationsasedgingandtrimminghedges.
Vibration
1. People with poor circulation who are exposed to
excessivevibrationmayexperienceinjurytoblood
vesselsorthenervoussystem.Vibrationmaycause
thefollowingsymptomstooccurinthengers,hands
or wrists: “Falling asleep” (numbness), tingling,
pain,stabbingsensation,alterationofskin color or
ofthe skin.Ifany ofthesesymptoms occur,see a
physician!
2. To reduce the risk of “white nger disease”, keep
yourhandswarmduringoperationandwellmaintain
thetoolandaccessories.
Transport
1. Beforetransportingthetool,turnitoffandwithdraw
the mains plug. Attach the cover to the cutting
blade.
2. When transporting the tool, carry it in a horizontal
positionbyholdingtheshaft.
3. When transporting the tool in a vehicle, properly
secureittoavoidturnover.Otherwisedamagetothe
toolandotherbaggagemayresult.
Maintenance
1. Have your tool serviced by our authorized service
center, always using only genuine replacement
parts. Incorrect repair and poor maintenance can
shortenthelife of thetoolandincrease the riskof
accidents.
2. Before doing any maintenance or repair work or
cleaningthetool,alwaysturnitoffandwithdrawthe
mainsplug.
3. Always wear protective gloves when handling the
cuttingblade.
4. Always clean dust and dirt off the tool. Never use
gasoline,benzine,thinner,alcoholorthelikeforthe
purpose.Discoloration,deformationorcracksofthe
plasticcomponentsmayresult.
5. Aftereachuse,tightenallscrewsandnuts.
6. Do not attempt any maintenance or repair not
described in the instruction manual. Ask our
authorizedservicecenterforsuchwork.
7. Alwaysuseourgenuinesparepartsandaccessories
only.Usingpartsoraccessoriessuppliedbyathird
party may result in the tool breakdown, property
damageand/orseriousinjury.
8. Requestourauthorizedservicecentertoinspectand
maintainthetoolatregularinterval.
Storage
1. Before storing the tool, perform full cleaning and
maintenance. Withdraw the mains plug.Attach the
covertothecuttingblade.
2. Storethetoolinadryandhighorlockedlocationout
ofreachofchildren.
3. Donot propthetoolagainst something,suchas a
wall. Otherwise it may fall suddenly and cause an
injury.
First aid
1. Always have a rst-aid kit close by. Immediately
replaceanyitemtakenfromtherstaidkit.
2. Whenaskingforhelp,givethefollowinginformation:
− Placeoftheaccident
− Whathappened
− Numberofinjuredpersons
− Natureoftheinjury
− Yourname
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to safety
rules for the subject product. MISUSE or failure
to follow the safety rules stated in this instruction
manual may cause serious personal injury.
PARTS DESCRIPTION (Fig. 1)
FUNCTIONAL DESCRIPTION
WARNING:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking the
functions on the tool.Failuretoswitchoffandunplug
may result in serious personal injury from accidental
start-up.
Power switch action (Fig. 2)
WARNING:
• Before plugging in, always check to see that the
switch trigger actuates properly and returns to
the “OFF” position when released. Do not pull the
switch trigger hard without sliding the lock-off
lever. This can cause switch breakage.Operatinga
tool with a switch that does not actuate properly can
leadtolossofcontrolandseriouspersonalinjury.
To prevent the switch trigger from being accidentally
pulled,alock-offleverisprovided.
Tostartthetool,slidethelock-offleverforwardandthen
pulltheswitchtrigger.Releasetheswitchtriggertostop.
