19En
English
they are not, an accidental detachment
may result in a fire or malfunction.
The graphical symbol placed on
the product means direct current.

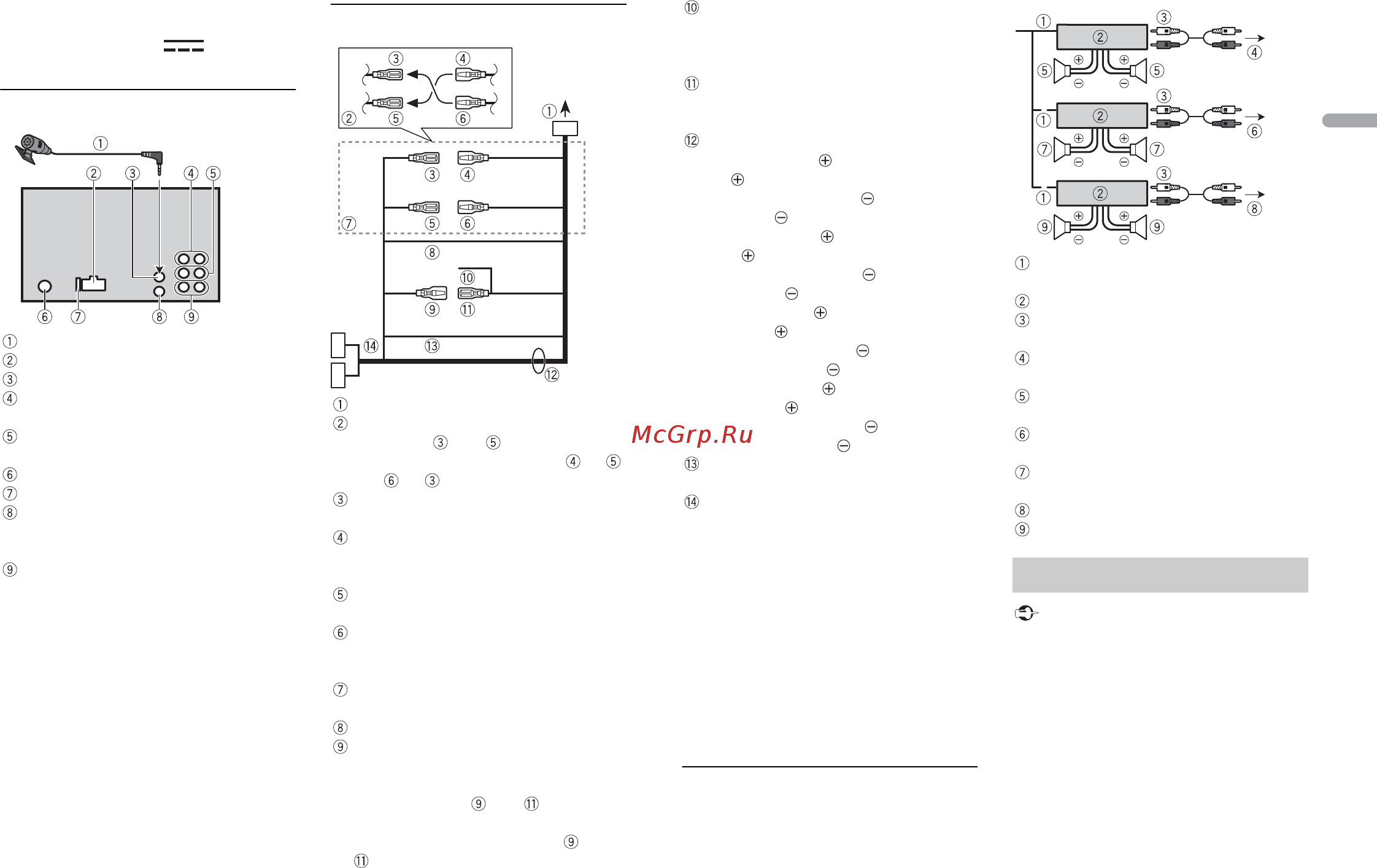

This unit
Microphone (3 m)
Power cord input
Microphone input
Rear output (STD) or middle range
output (NW)
Front output (STD) or high range output
(NW)
Antenna input
Fuse (10 A)
Wired remote input
Hard-wired remote control adapter can
be connec
ted (sold separately).
Subwoofer output
Power cord
To power cord input
Depending on the kind of vehicle, the
function of and may be different.
In this case, be sure to connect to
and to .
Yel low
Back-up (or accessory)
Yel low
Connect to the constant 12 V supply
te
rminal.
Red
Accessory (or back-up)
Red
Connect to terminal controlled by the
ign
ition switch (12 V DC).
Connect leads of the same color to each
other.
Black (chassis ground)
Blue/white
The pin position of the ISO connector
w
ill differ depending on the type of
vehicle. Connect and when Pin 5
is an antenna control type. In another
t
ype of vehicle, never connect and
.
Blue/white
Connect to the system control terminal
of the power amp (max. 300 mA 12 V
DC).
Blue/white
Connect to the auto-antenna relay
c
ontrol terminal (max. 300 mA 12 V DC).
Speaker leads
White: Front left (STD) or high range
left (NW)
White/black: Front left (STD) or high
range left (NW)
Gray: Front right (STD) or high range
right (NW)
Gray/black: Front right (STD) or high
range right (NW)
Green: Rear left (STD) or middle
range left (NW)
Green/black: Rear left (STD) or
middle range left (NW)
Violet: Rear right (STD) or middle
range right (NW)
Violet/black: Rear right (STD) or
middle range right (NW)
Orange/white
Connect to a cars illumination signal.
ISO connector
In some vehicles, the ISO connector
ma
y be divided into two. In this case, be
sure to connect to both connectors.
NOTES
Change the initial menu of this unit. Refer
to [REAR-SP]
(page 5). The subwoofer
output of this unit is monaural.
W
hen using a subwoofer of 2 Ω, be sure
to connect the subwoofer to the violet
and violet/black leads of this unit. Do not
connect anything to the green and
green/black leads.
Power amp (sold separately)
Perform these connections when using the
optional amplifier.
System remote control
Connect to blue/white cable.
Power amp (sold separately)
Connect with RCA cables (sold
separately)
To rear output (STD) or middle range
output (NW)
Rear speaker (STD) or middle range
speaker (NW)
To front output (STD) or high range
output (NW)
Front speaker (STD) or high range
speaker (NW)
To subwoofer output
Subwoofer
Important
Check all connections and systems before
final installation.
Do not use unauthorized parts as this
may cause malfunctions.
C
onsult your dealer if installation requires
drilling of holes or other modifications to
the vehicle.
Do
not install this unit where:
it may interfere with operation of the
vehicl
e.
it may cause injury to a passenger as a
r
esult of a sudden stop.
Installation
