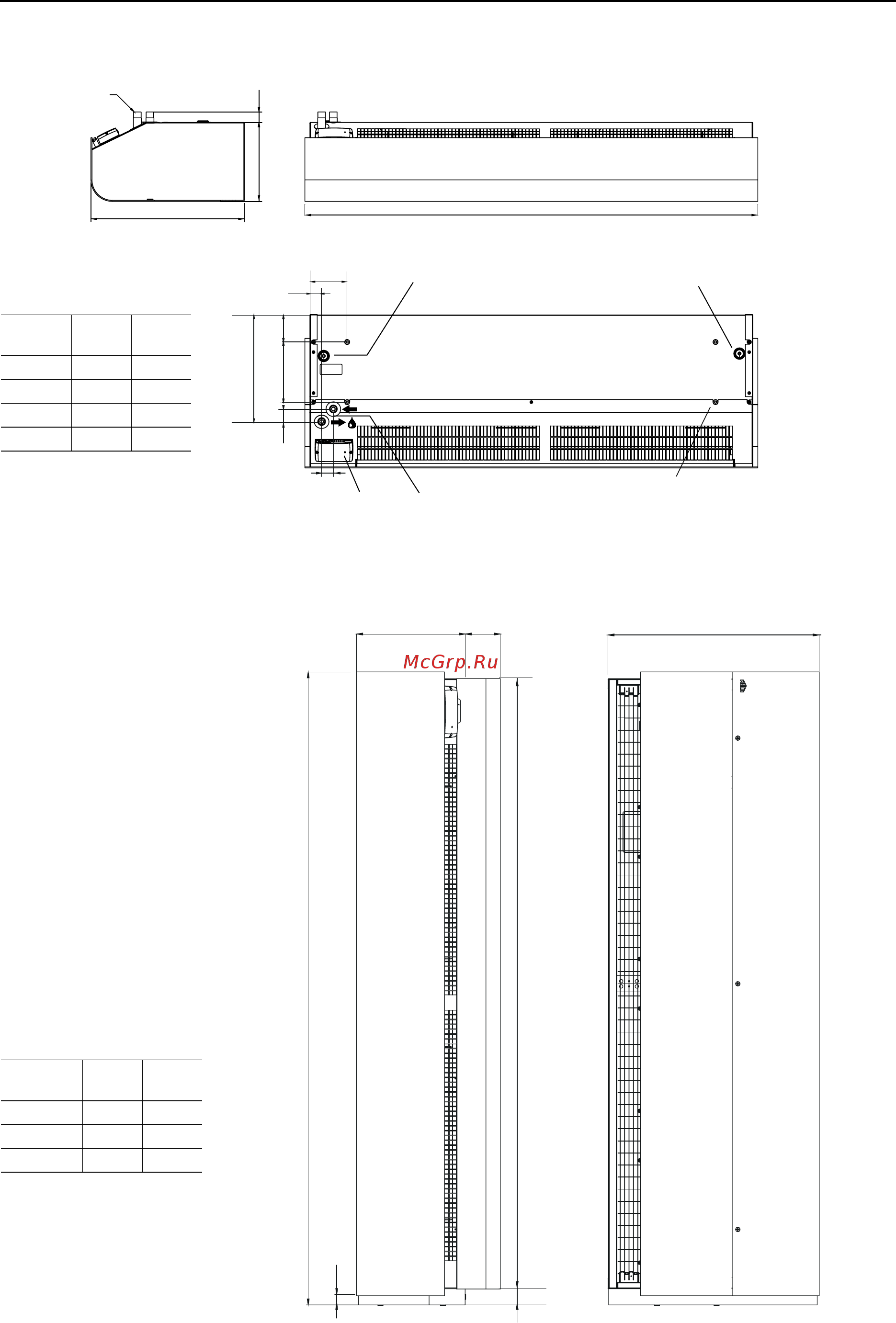

PA3500/4200
2
Dimensions
The unit can be
reversed and placed
on either side of the
door. Connections
and PC Board SIRe
are positioned near
floor level when the
air curtain is placed
to the left of the door
and at the top when it
is placed to the right
(seen from the inside).
Vertical mounting
with Vertical kit and Design kit for vertical mounting
with Vertical kit
and Design kit for
vertical mounting
*)
PA3500
525
L
270 36
43
40
127
PA3510/3515: 4 M8
PA3520: 6 M8
PA3525: 8 M8
205 92
364
A
L
[mm]
A
[mm]
PA3510 1039 40
PA3515 1549 40
PA3520 2039 40
PA3525 2549 39
Water connection
Electrical connection
DN20 (3/4"),
outside thread
SIRe
PA 2 m; 2,5 m
Electrical connection
All models
Horizontal mounting
L1
525
87270
40
L2
23
L1
[mm]
L2
[mm]
PA3515* 1572 1515
PA3520* 2062 2005
PA3525* 2572 2515
