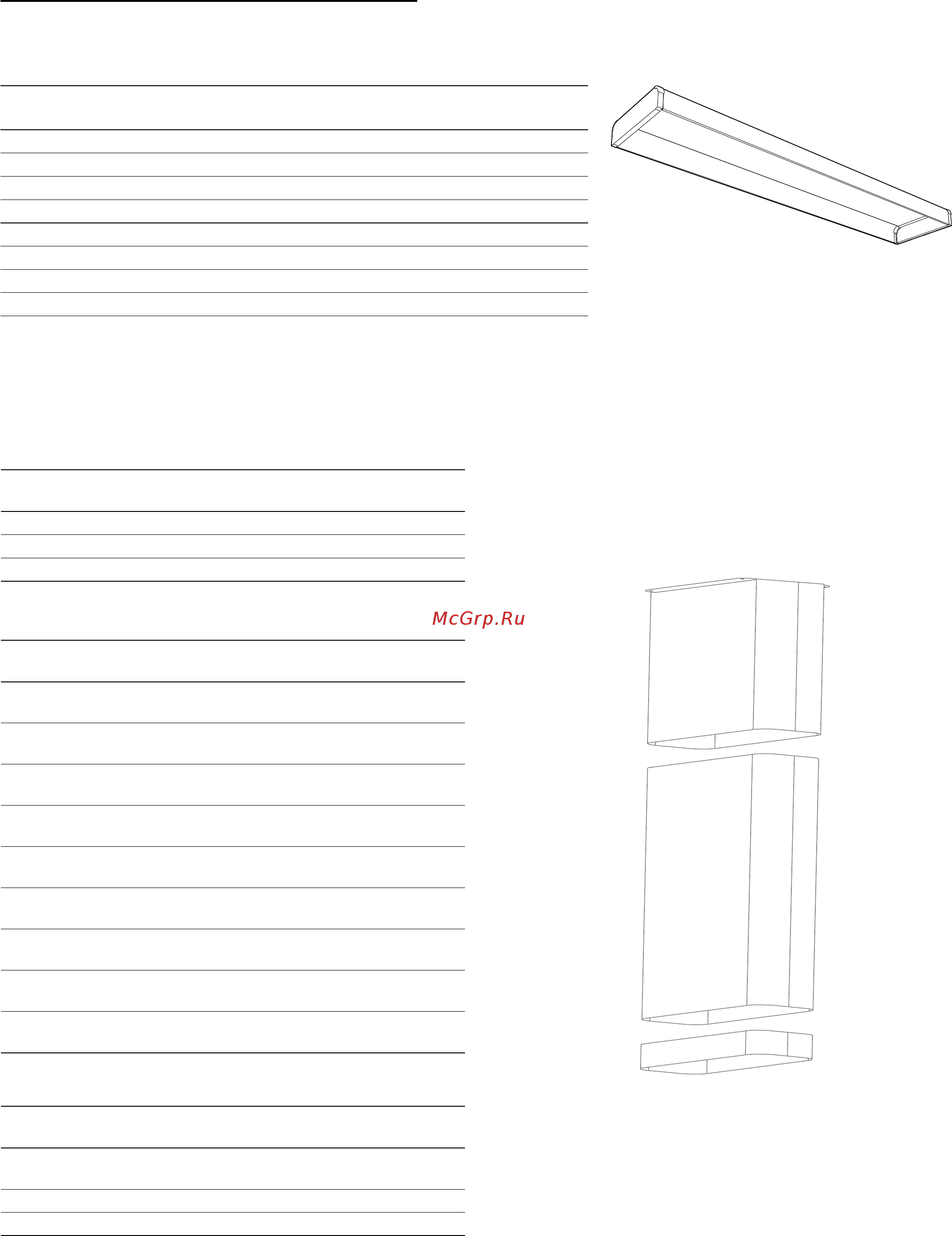

Frico pa3520a [10/36] Accessories
![Frico pa3520a [10/36] Accessories](/views2/1230716/page10/bga.png)
Type Description HxDxW
[mm]
PA3DW10 Design kit for wall mounting PA3510 87x382x1006
PA3DW15 Design kit for wall mounting PA3515 87x382x1516
PA3DW20 Design kit for wall mounting PA3520 87x382x2006
PA3DW25 Design kit for wall mounting PA3525 87x382x2516
PA4DW10 Design kit for wall mounting PA4210 87x424x1006
PA4DW15 Design kit for wall mounting PA4215 87x424x1516
PA4DW20 Design kit for wall mounting PA4220 87x424x2006
PA4DW25 Design kit for wall mounting PA2425 87x424x2516
Design kit for wall mounting
Accessories
For horizontally mounted units
Start parts
Type
Description Number
included
PA3DCN15S Start part for PA3510/3515 2 pcs
PA3DCN20S Start part for PA3520 3 pcs
PA3DCN30S Start part for PA3525 4 pcs
Intermediate parts
Type
Description Number
included
PA3DC15S
Intermediate part 300 mm for
PA3510/3515
2 pcs
PA3DC20S
Intermediate part 300 mm for
PA3520
3 pcs
PA3DC30S
Intermediate part 300 mm for
PA3525
4 pcs
PA3DC15M
Intermediate part 500 mm for
PA3510/3515
2 pcs
PA3DC20M
Intermediate part 500 mm for
PA3520
3 pcs
PA3DC30M
Intermediate part 500 mm for
PA3525
4 pcs
PA3DC15L
Intermediate part 700 mm for
PA3510/3515
2 pcs
PA3DC20L
Intermediate part 700 mm for
PA3520
3 pcs
PA3DC30L
Intermediate part 700 mm for
PA3525
4 pcs
Telescopic parts
Type
Description Number
included
PA3DC15T
Telescopic part for
PA3510/3515
2 pcs
PA3DC20T Telescopic part for PA3520 3 pcs
PA3DC30T Telescopic part for PA3525 4 pcs
See manual for PA3DW/PA4DW.
Design kit for ceiling mounting PA3500
Intermediate
part
Telescopic
part
See manual for PA3DC.
Start part
PA3500/4200
10
