PA3500/4200
7

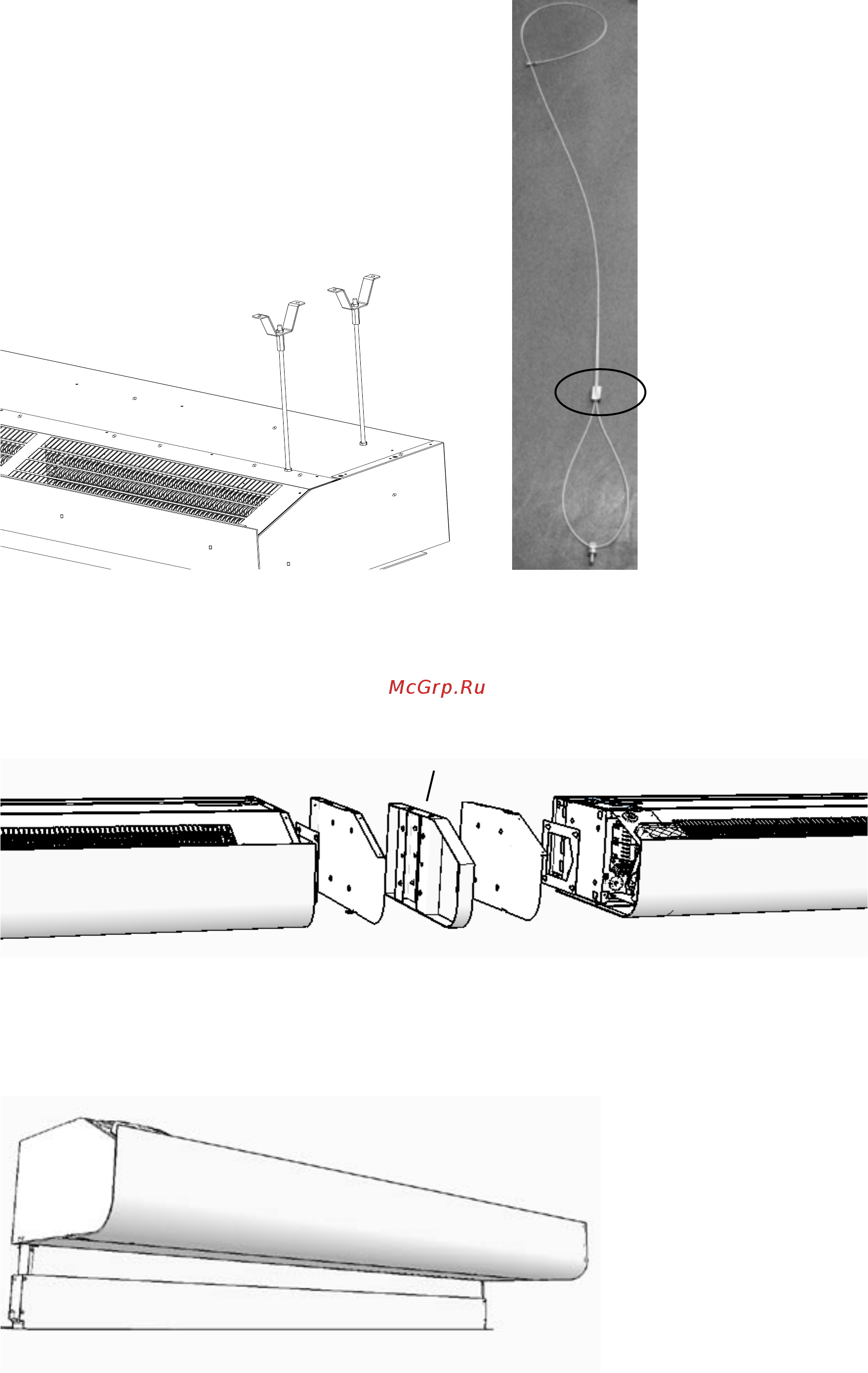

Fig. 6: Mounting with threaded bars (PA34TR) and ceiling
brackets (PA34CB). Supplemented with vibration dampers
(PA34VD) for reduced vibration.
See separate manual for PA34TR.
Fig. 7: Mounting with wire suspension kit (PA34WS), used
together with ceiling brackets (PA34CB).
See separate manual for PA34WS.
Wire lock
Horizontal mounting
Fig. 8: Joining kit PA3JK to join horizonal units together.
See separate manual for PA34JK - joining kit for horizontal
units.
Joint bracket
Fig. 9: Outlet extension PA3XT / PA4XT with telecopic
funktion used for recessed mounting in false ceilings. See
separate manual for PA3XT / PA4XT.
