PA3500/4200
8
Mounting - vertical

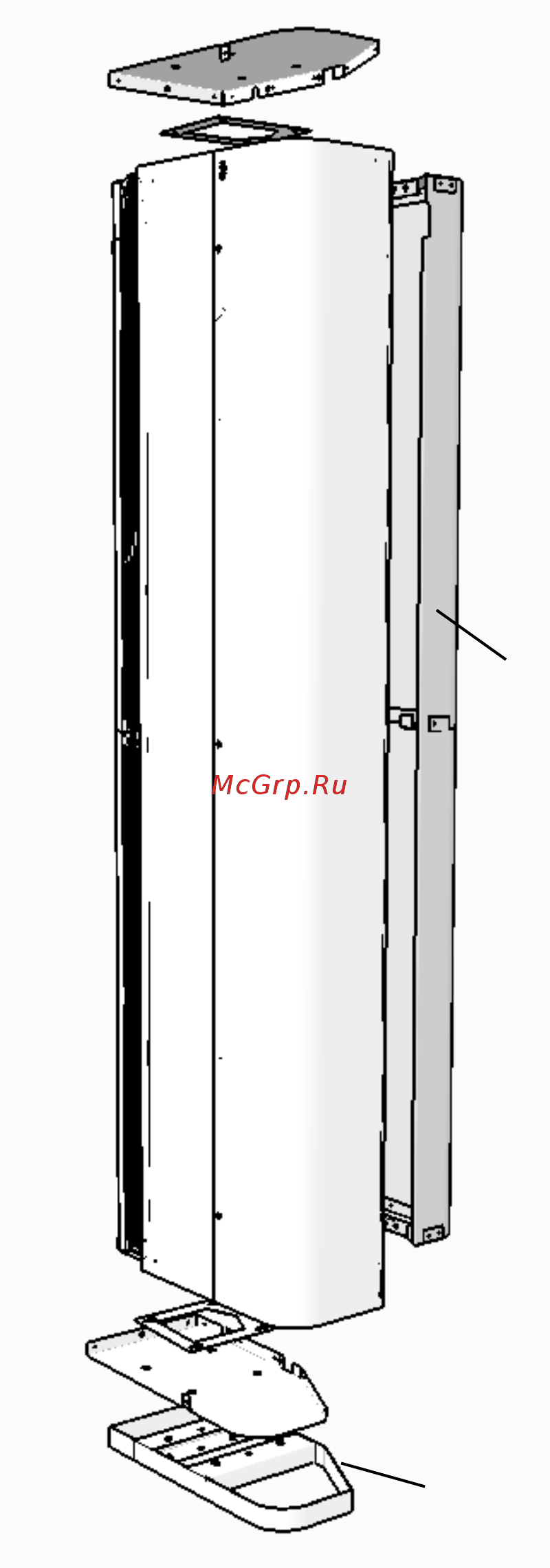

Fig. 10: Vertical kit PA3JK to adapt horizonal unit for
vertical installation. Used together with design kit for
vertical installation for a neater installation.
See separate manual for PA3JK - Vertical installation.
Floor edging
Design kit for
vertical mounting
