Asus PRIME H270M-PLUS [10/37] Motherboard overview
![Asus PRIME H270M-PLUS [10/37] Motherboard overview](/views2/1233073/page10/bga.png)
ASUS PRIME H270M-PLUS
1-1
PRIME H270M-PLUS
PCIE SATA
M.2_2
IRST
X2 V X
PCIE SATA
M.2_1
IRST
X4 V V
PCIEX16_1
PCIEX16_2
PCIEX1_1
PCIEX1_2
TPM
SPDIF_OUT
CLRTC
MONO_OUT
USB3_34
USB3_12
AAFP
EATXPWR
CHA_FAN1
CPU_FAN
CHA_FAN2
BATTERY
Super
I/O
ALC
887
DIGI
+VRM
24.4cm(9.6in)
LGA1151
EATX12V
Intel
®
H270
Intel
®
I219V
DDR4 DIMM_A1 (64bit, 288-pin module)
2280 2260 2242
2280 2260 2242
M.2_2(SOCKET3)
M.2_1(SOCKET3)
DDR4 DIMM_A2 (64bit,288-pin module)
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2 (64bit, 288-pin module)
AUDIO
KBMS
HDMI
LAN_USB910
USB3_C3
USB3_78
23.9cm(9.4in)
128Mb
BIOS
SATA6G_3 SATA6G_4
SATA6G_5 SATA6G_6
ASM1480
SATA6G_2 SATA6G_1
DVI
VGA
LANGuard
COM
USB1112 USB1314
PANEL
5321 42
697
6
8
1
1
7
11131415 12
17
6
10
16
8
16
Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
to static electricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switched off or the power cord is detached from the power supply. Failure to do so
maycauseseveredamagetothemotherboard,peripherals,orcomponents.

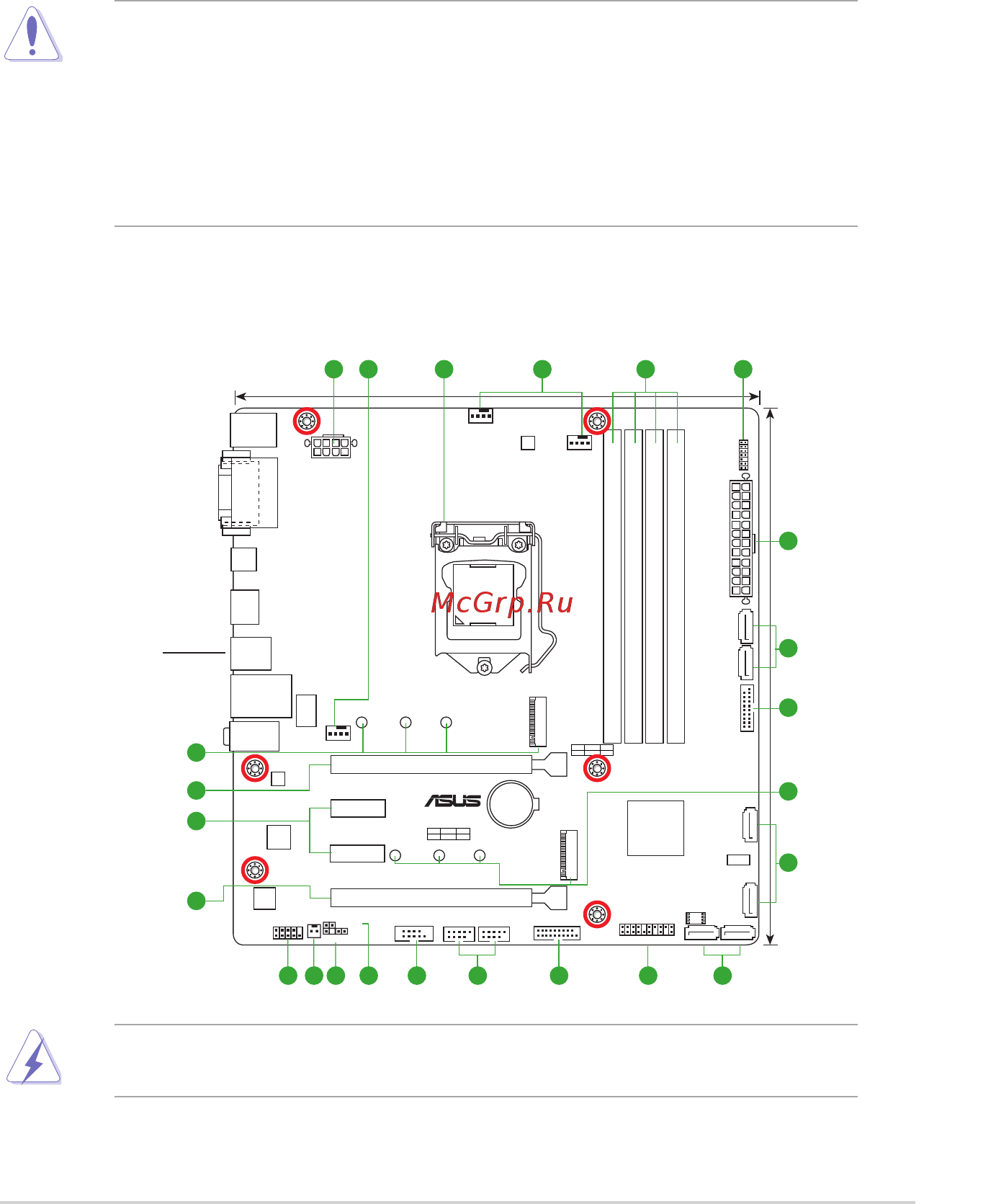

1.2 Motherboard overview
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage motherboard components.
Place this
side towards
the rear of the
chassis
