ASUS PRIME H270-PLUS
1-1
Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
to static electricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switched off or the power cord is detached from the power supply. Failure to do so
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage motherboard components.

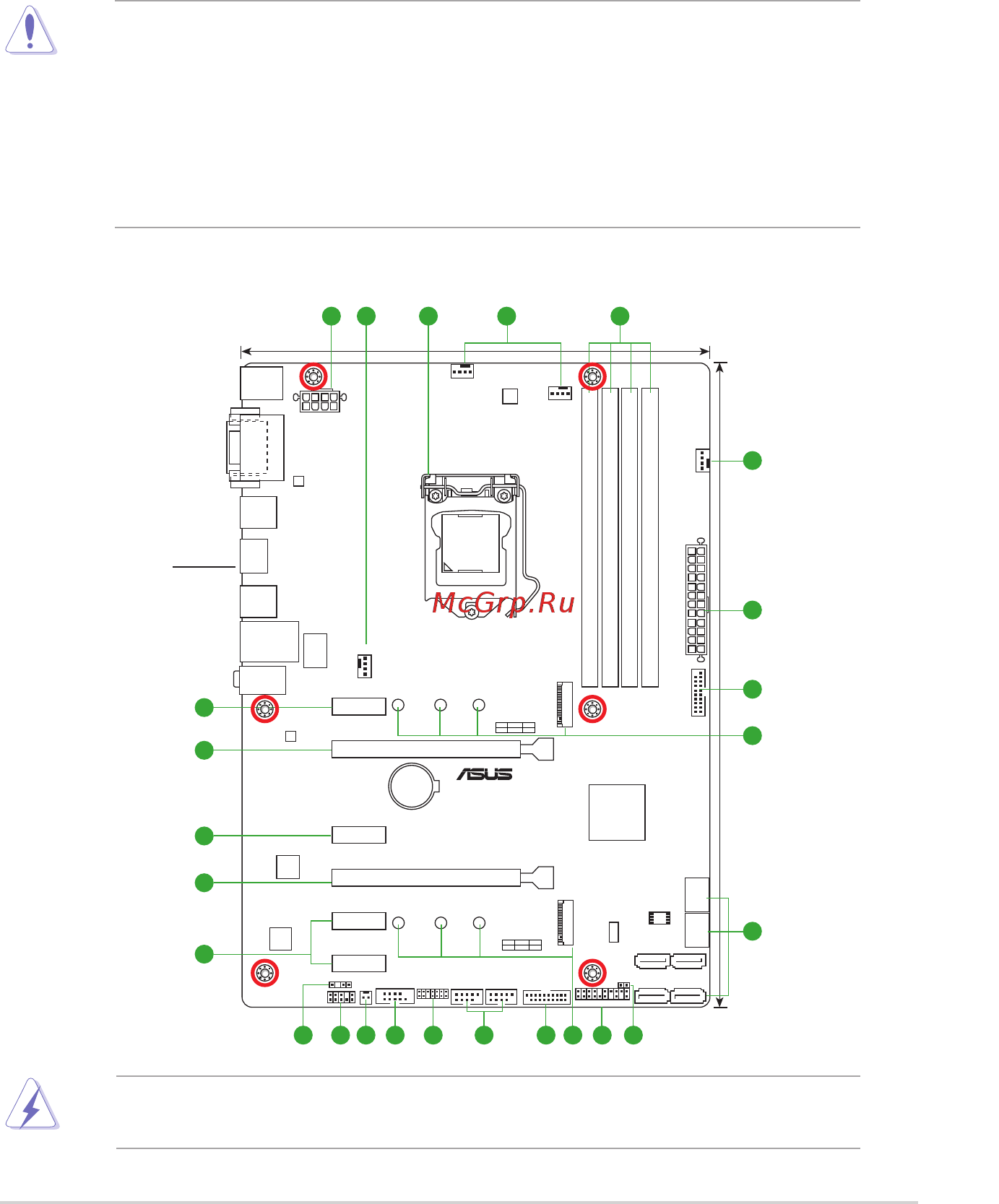

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
PRIME H270-PLUS
PCIEX16_1
PCIEX16_2
PCIEX1_3
PCIEX1_2
PCIEX1_1
PCIEX1_4
ALC
887
M.2_1(SOCKET3)
M.2_2(SOCKET3)
RTL
8111H
RTL
2166
USB1112 USB1314
AAFP
SPDIF_OUT
CLRTC
EATXPWR
BATTERY
Super
I/O
2280 2260 2242
2280 2260 2242
KBMS
DVI
VGA
22.1cm(8.7in)
DDR4 DIMM_A1 (64bit, 288-pin module)
DDR4 DIMM_A2 (64bit, 288-pin module)
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2 (64bit, 288-pin module)
SATA6G_6 SATA6G_5
LAN_USB910
USB3_78
USB3_56
HDMI
CHA_FAN2
CPU_FAN
CHA_FAN1
CHA_FAN3
30.5cm(12in)
LGA1151
DIGI
+VRM
COM
MONO_OUT
EATX12V
USB3_12
USB3_34
Intel
®
H270
128Mb
BIOS
ASM1480
PANEL
AUDIO
SATA6G_2 SATA6G_1
SATA6G_4 SATA6G_3
LANGuard
PCIE SATA
M.2_2
IRST
X2 V X
PCIE SATA
M.2_1
IRST
X4 V V
TPM
21 3 42
9 85 61011121415 13
1
2
5
6
7
17
16
17
16
16
