7. Principle of operation and product design.

Stabilizers RUCELF are the electromechanical type of the stabilizers,

which provide stepless control of the output voltage, with high precision of it.

Regulation is running with servo drive, which automatically traces changings of

input voltage. Output voltage is measuring and comparing with standard voltage

of control unit.

In case of deviation, servo drive starts to work, adjusting the boosting

voltage to the reference value of output voltage.

The value of boosting voltage either increases, or is subtracted from the

corrupted line voltage. Digital board with microprocessor management is set on

the stabilizers RUCELF. The digital board makes the logical control of protection

on the down and up limit. The temperature sensor protects the stabilizer from

the overheating and disconnects the output load during abnormal operation

temperature.

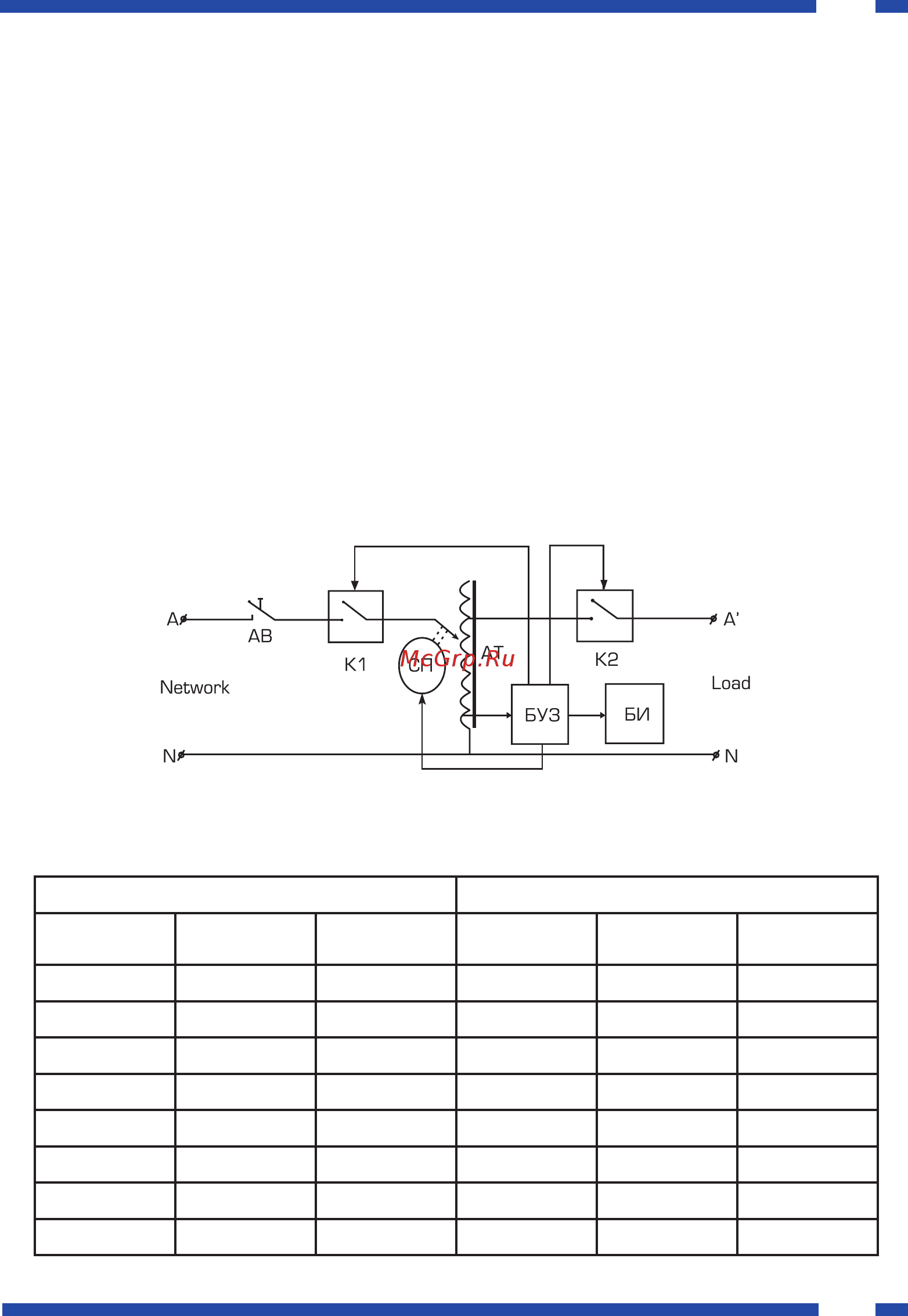

Single-phase stabilizer

Fig. 4

Activation of the stabilizer protection

high voltage Low voltage

Input voltage, V

Output

voltage, V

Disconnection

delay, sec

Input voltage, V

Output

voltage, V

Disconnection

delay, sec

278 238 3О 117 19О 3О

282 241 18 112 182 18

286 244 9 11О 178 9

288 247 4 1О8 175 4

293 25О 2 1О6 172 2

296 253 1 1О4 169 1

3ОО 256 О,2 1ОО 163 О,6

98 16О О,2
