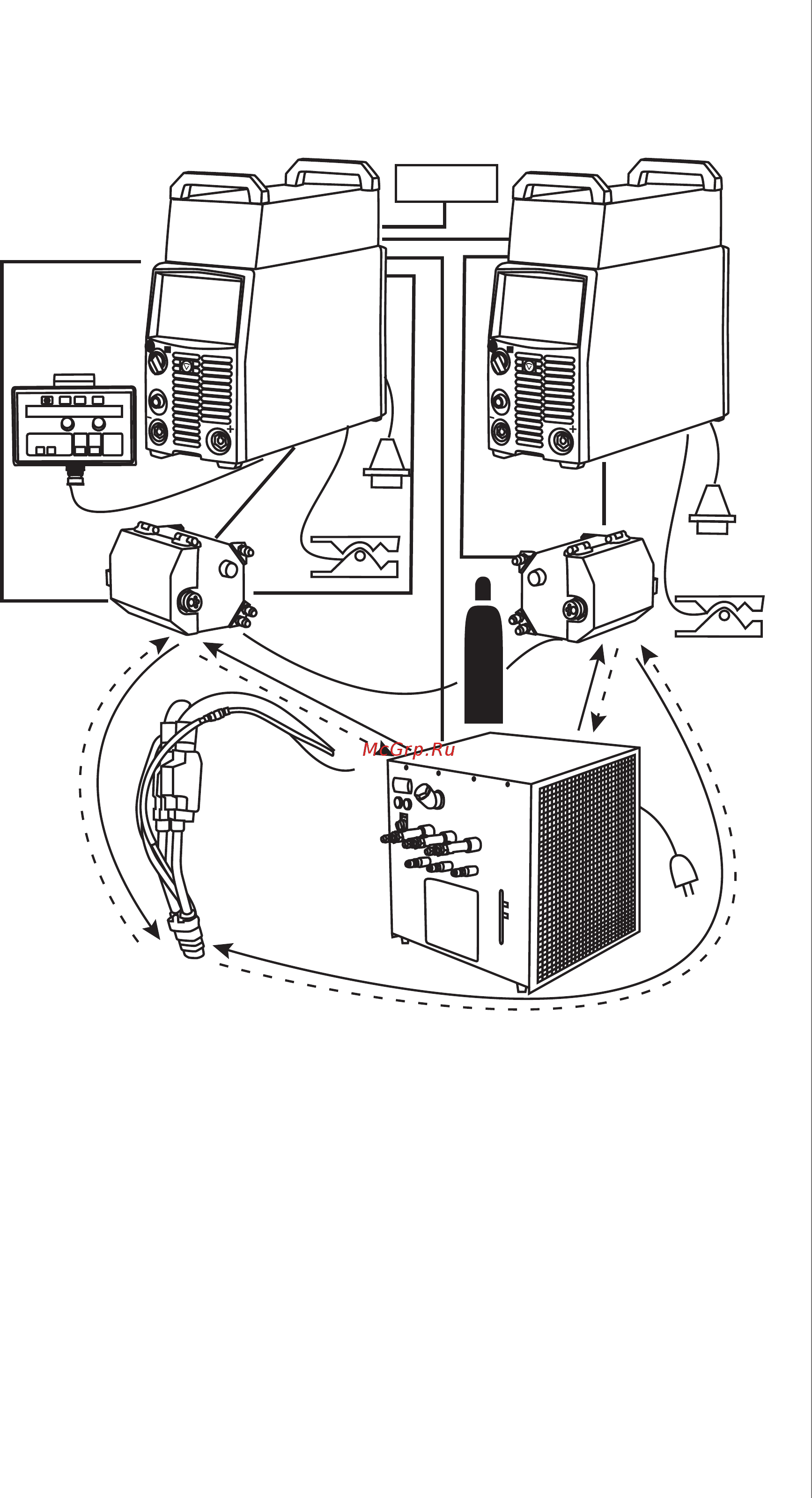

2.8 OVERVIEW OF THE SYSTEM
1.
2.
5.
6.
7.
8.
10.
11.
12.
9.
13.
13.
8.
4.
3.
1. DT 400 wire feeder (right-handed)
2. KempArc Pulse TCS power source, master unit
3. Robot controller
4. DT 400L wire feeder (left-handed)
5. KempArc Pulse TCS, slave unit
6. KempCool 40 cooling unit
7. Shielding gas supply
8. Power cable (3-phase)
9. Power cable for cooling unit (1-phase)
10. KF 62 remote control panel (optional)
11. Robot control connection
12. Liquid cooled tandem welding gun
13. Earth return cable and clamp
7
KempArc Pulse TCS / © Kemppi Oy / 1204
