www.timberk.com  electric instant water heater

WATERMASTER Ill Series. Water Heater Models: WHE 12.0 XTL 1, WHE

18.0 XTL 1, WHE 21.0 XTL 1, WHE 24.0 XTL C1.

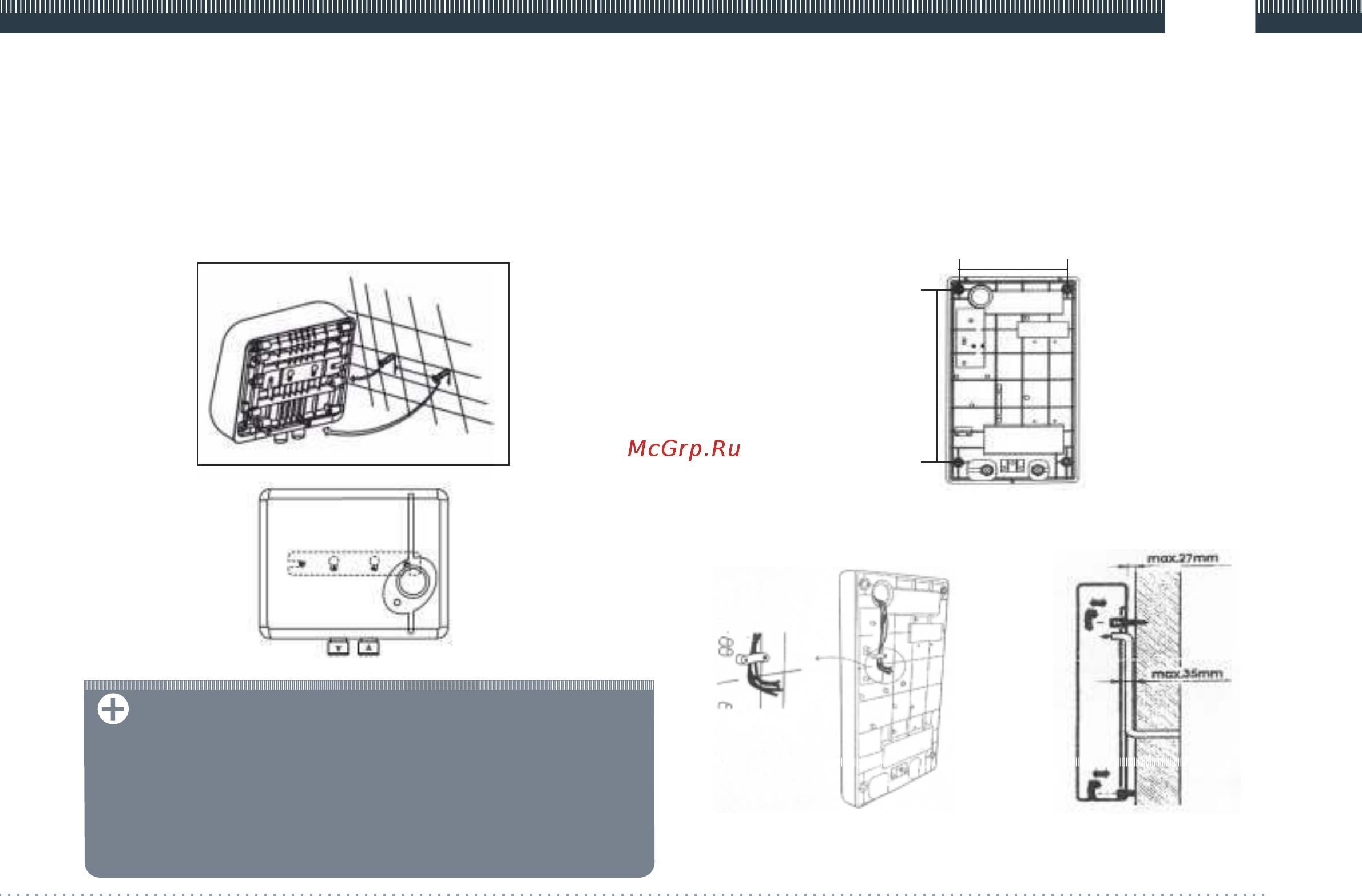

As shown in Figure 11, identify the points for openings and drill 4

openings of the corresponding depth in the wall, insert dowels, attach

water heater to them having inserted the electric cable (see the figure),

screw up the screws, check the reliability of fixing. .

WATERMASTER // Series. Water Heater Models: WHE 5.0 XTN Z1, WHE 6.0

XTN Z1, WHE 6.5 XTN Z1, WHE 7.0 XTN Z1, WHE 8.0 XTN Z1

As shown in Figure 9, identify the points for openings and drill 2

openings of the corresponding depth in the wall, insert dowels, screw

up the screws, and make sure that there is a certain distance between

the screw head and the wall, then hang the water heater on the screws

(see Fig.10) and check the reliability of fixing.

Fig. 9

106 mm



Fig. 10

Fig. 12

Fig. 13

Fig. 11

384 mm

214 mm

NOTE:

Water heater installation at the place of its operation and electric

power connections shall be performed by the specialized organiza-

tion, a representative of the manufacturer's maintenance service or

experts licensed for execution of electric equipment assembling with

safety regulations observed.

In the event of violation of water heater operation manual, water

heater is not subject to warranty servicing, and the manufacturer

cannot be held liable.
