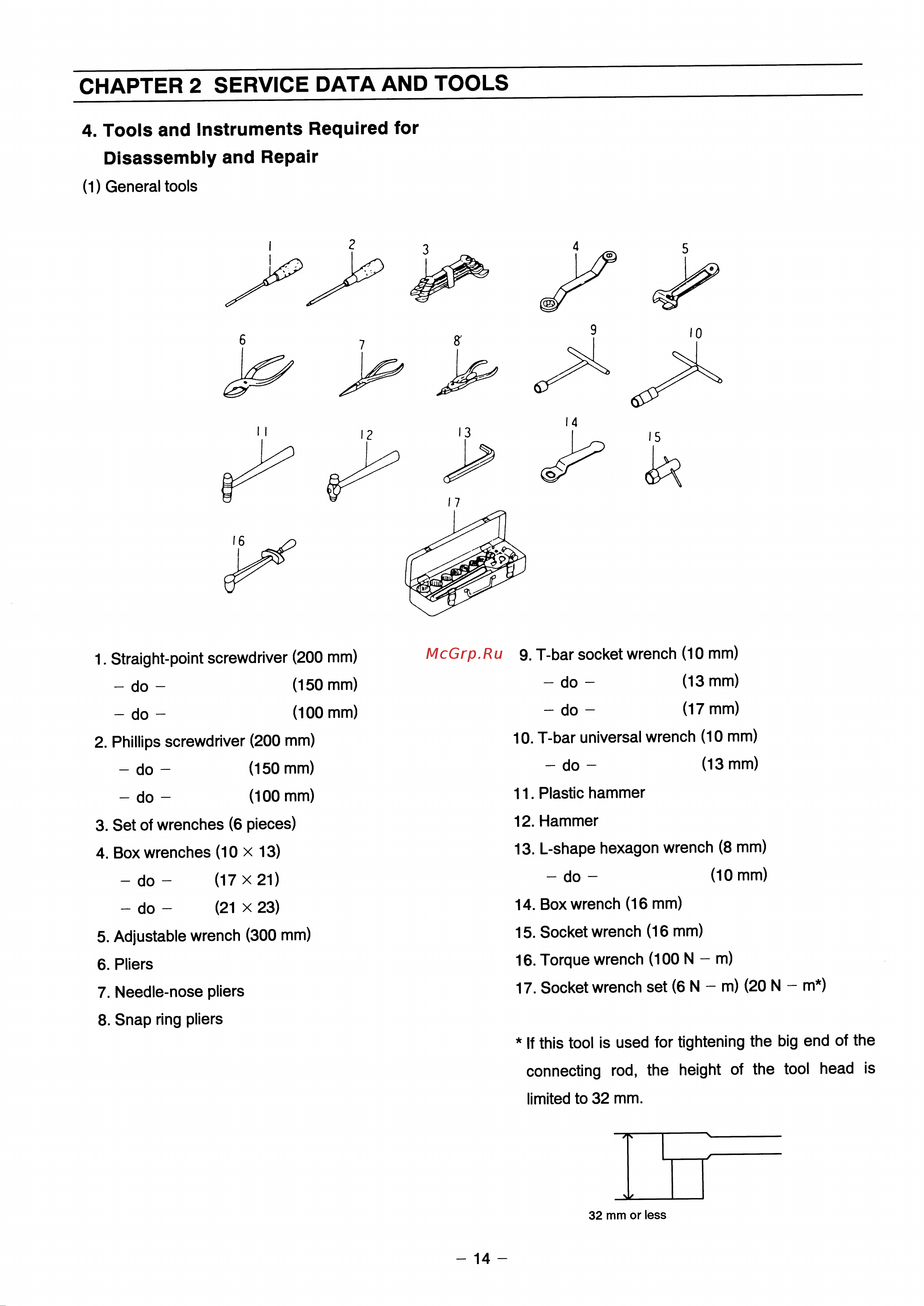

CHAPTER 2 SERVICE DATA AND TOOLS 4 Tools and Instruments Required for Disassembly and Repair 1 General tools 9 T bar socket wrench 10 mm 1 Straight point screwdriver 200 mm do 150mm do 13 mm do 100mm do 17 mm 10 T bar universal wrench 10 mm 2 Phillips screwdriver 200 mm do do 150mm do 13 mm 11 Plastic hammer 100mm 3 Set of wrenches 6 pieces 12 Hammer 4 Box wrenches 10 x 13 13 L shape hexagon wrench 8 mm do do 17X21 do 10 mm 14 Box wrench 16 mm 21 x 23 5 Adjustable wrench 300 mm 15 Socket wrench 16 mm 6 Pliers 16 Torque wrench 100 N m 7 Needle nose pliers 17 Socket wrench set 6 N m 20 N m 8 Snap ring pliers If this tool is used for tightening the big end of the connecting rod the height of the tool head is limited to 32 mm 32 mm or less 14
