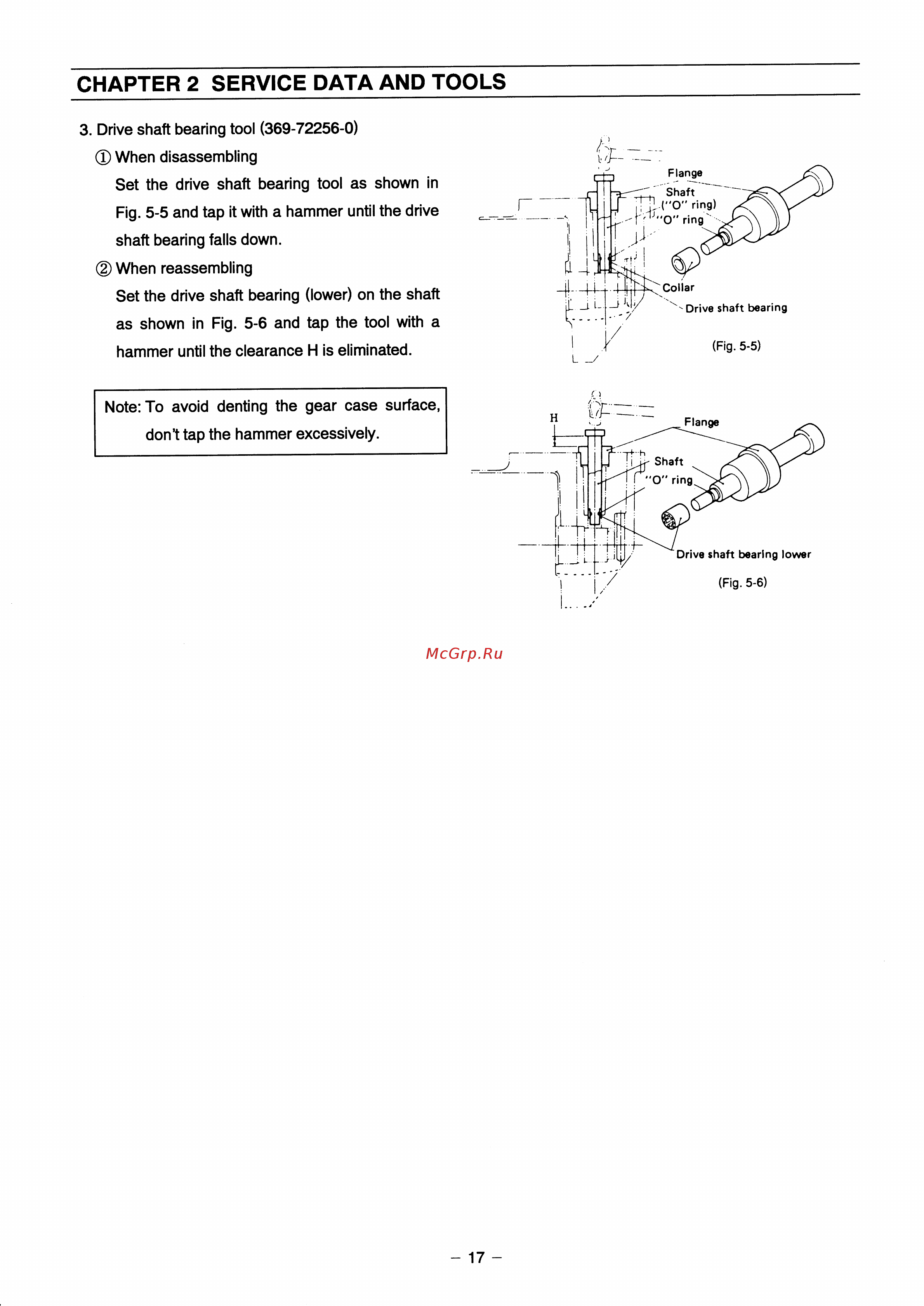

CHAPTER 2 SERVICE DATA AND TOOLS 3 Drive shaft bearing tool 369 72256 0 D When disassembling Set the drive shaft bearing tool as shown in Fig 5 5 and tap it with a hammer until the drive shaft bearing falls down When reassembling Set the drive shaft bearing lower on the shaft as shown in Fig 5 6 and tap the tool with a hammer until the clearance H is eliminated Note To avoid denting the gear case surface don t tap the hammer excessively 17
