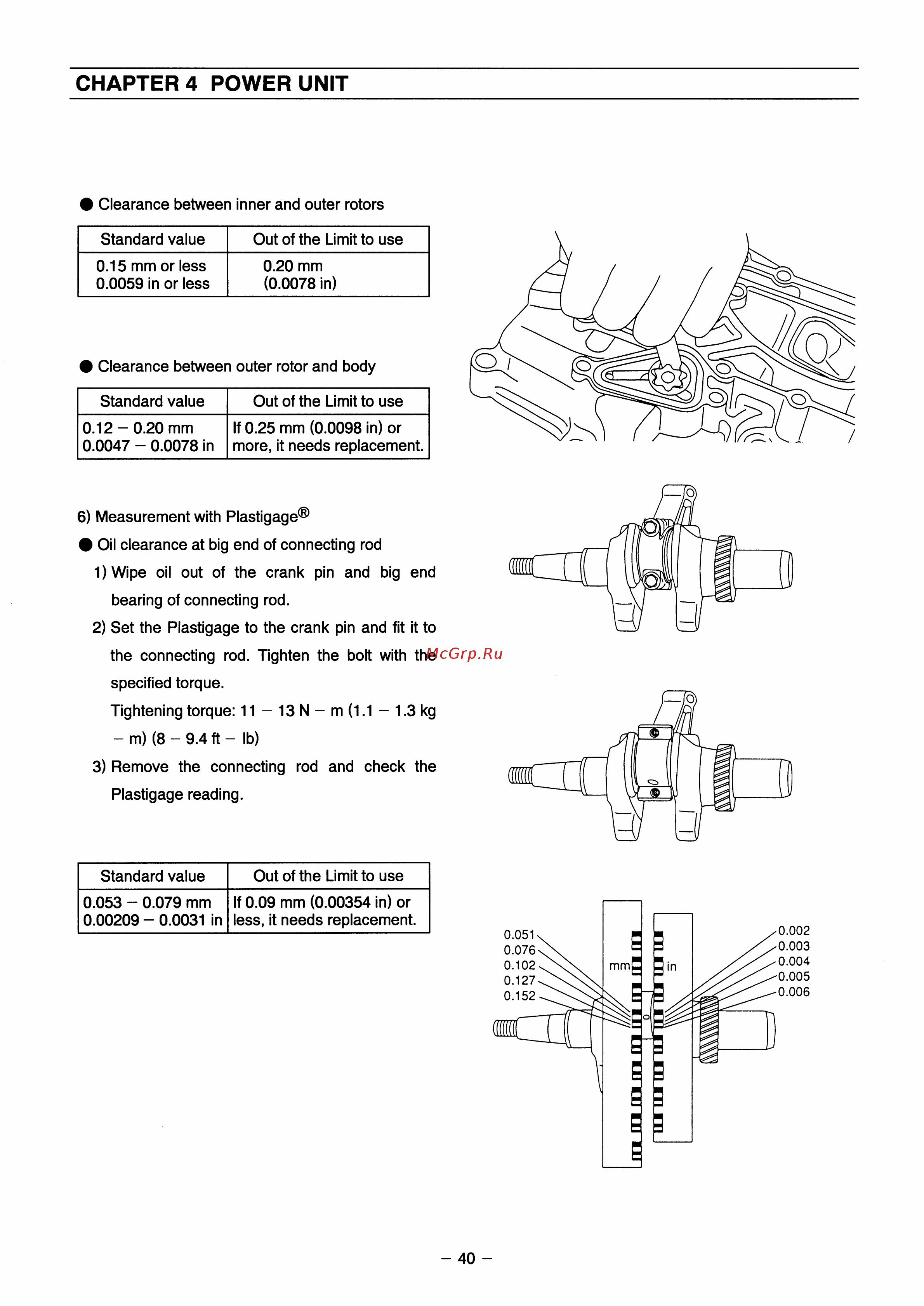

CHAPTER 4 POWER UNIT Clearance between inner and outer rotors Standard value Out of the Limit to use 0 15 mm or less 0 0059 in or less 0 20 mm 0 0078 in Clearance between outer rotor and body Standard value 0 12 0 20 mm 0 0047 0 0078 in Out of the Limit to use If 0 25 mm 0 0098 in or more it needs replacement 6 Measurement with Plastigage Oil clearance at big end of connecting rod 1 Wipe oil out of the crank pin and big end bearing of connecting rod 2 Set the Plastigage to the crank pin and fit it to the connecting rod Tighten the bolt with the specified torque Tightening torque 11 13 N m 1 1 1 3 kg m 8 9 4 ft lb 3 Remove the connecting rod and check the Plastigage reading Standard value Out of the Limit to use 0 053 0 079 mm 0 00209 0 0031 in If 0 09 mm 0 00354 in or less it needs replacement 40
