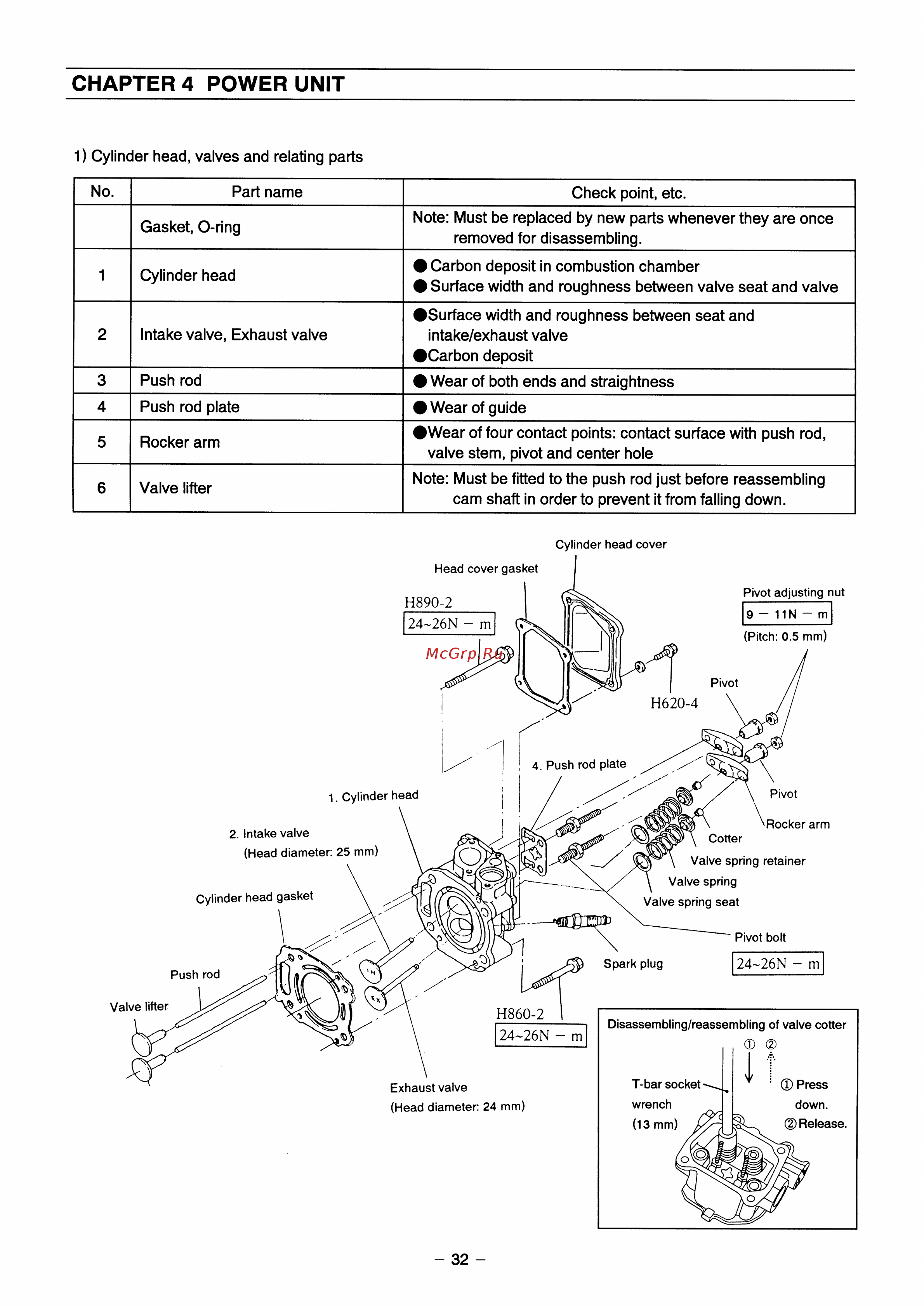

CHAPTER 4 POWER UNIT 1 Cylinder head valves and relating parts No Part name Check point etc Gasket O ring Note Must be replaced by new parts whenever they are once removed for disassembling 1 Cylinder head Carbon deposit in combustion chamber Surface width and roughness between valve seat and valve 2 Intake valve Exhaust valve Surface width and roughness between seat and intake exhaust valve Carbon deposit 3 Push rod Wear of both ends and straightness 4 Push rod plate Wear of guide 5 Rocker arm Wear of four contact points contact surface with push rod valve stem pivot and center hole 6 Valve lifter Note Must be fitted to the push rod just before reassembling cam shaft in order to prevent it from falling down Cylinder head cover Head cover gasket Pivot adjusting nut H890 2 24 26N m 9 11N m Pitch 0 5 mm 4 Push rod plate Pivot 1 Cylinder head Rocker arm 2 Intake valve Cotter Head diameter 25 mm Valve spring retainer Valve spring Cylinder head gasket Valve spring seat Pivot bolt Spark plug Push rod Valve lifter H860 2 I 24 26N m Exhaust valve Head diameter 24 mm 32 24 26N m
