![Yamaha F 350 [11/82] Fig 3 crankshaft piston vilebrequin piston](/img/pdf.png)
Yamaha F 350 [11/82] Fig 3 crankshaft piston vilebrequin piston
![Yamaha F 350 [11/82] Fig 3 crankshaft piston vilebrequin piston](/views2/1241111/page11/bgb.png)
B
1

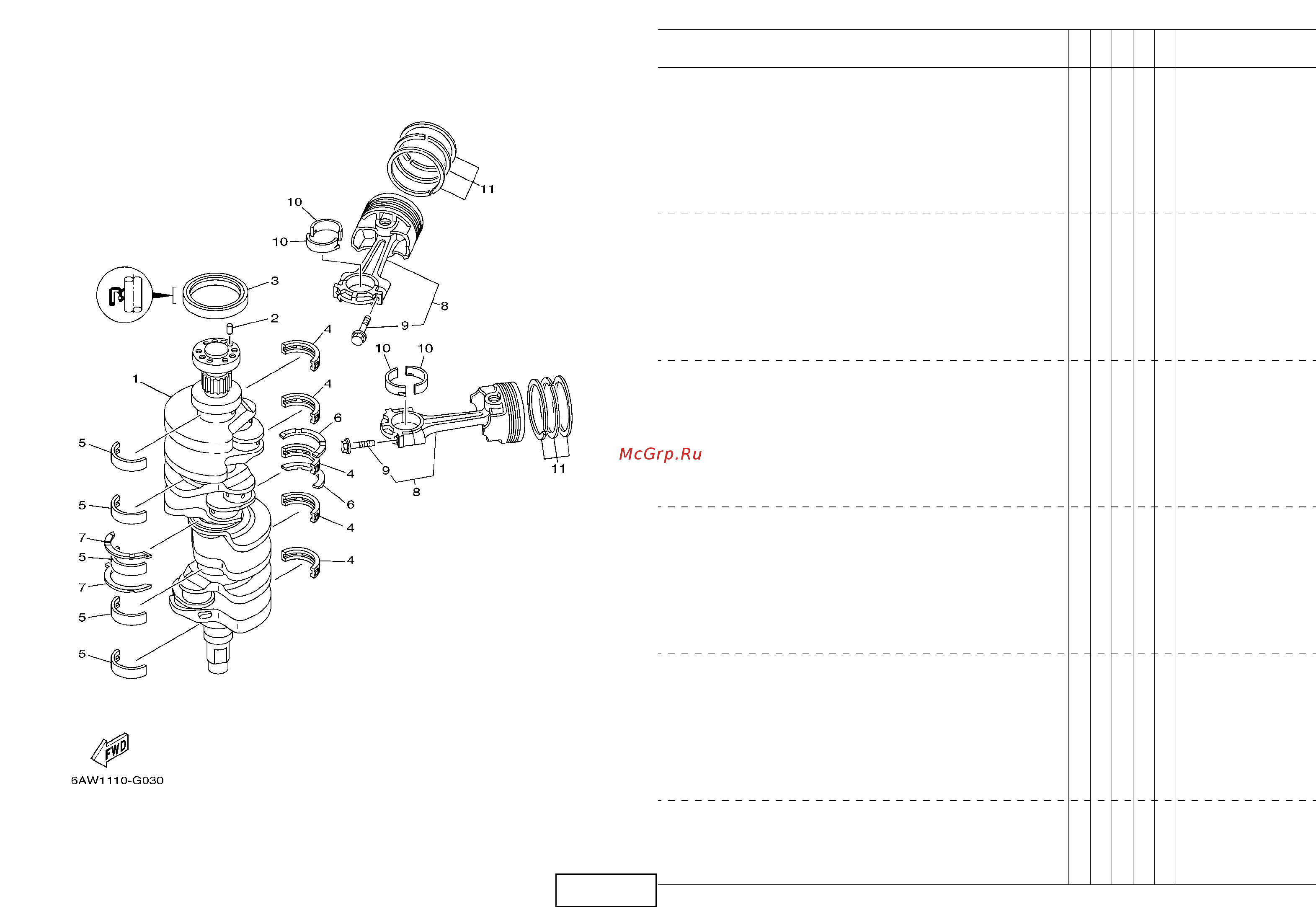

FIG. 3 CRANKSHAFT & PISTON VILEBREQUIN & PISTON
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
6AW1
6AX1
REMARKS
REMARQUES
1
6AW–11411–00
CRANKSHAFT
VILEBREQUIN COMPLET
11
2
93606–12019
PIN, DOWEL
GOUPILLE
11
3
93102–85004
OIL SEAL
JOINT SPY
11
4
6AW–11416–00
PLANE BEARING, CRANKSHAFT 1
COUSSINET DE VILEBREQUIN 1
5 5 UR YELLOW
UR YELLOW
6AW–11416–10
PLANE BEARING, CRANKSHAFT 1
COUSSINET DE VILEBREQUIN 1
5 5 UR GREEN
UR GREEN
6AW–11416–20
PLANE BEARING, CRANKSHAFT 1
COUSSINET DE VILEBREQUIN 1
5 5 UR BROWN
UR BROWN
6AW–11416–30
PLANE BEARING, CRANKSHAFT 1
COUSSINET DE VILEBREQUIN 1
5 5 UR BLACK
UR BLACK
6AW–11416–40
PLANE BEARING, CRANKSHAFT 1
COUSSINET DE VILEBREQUIN 1
5 5 UR BLUE
UR BLUE
5
6AW–11417–00
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR YELLOW
UR YELLOW
6AW–11417–10
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR GREEN
UR GREEN
6AW–11417–20
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR BROWN
UR BROWN
6AW–11417–30
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR BLACK
UR BLACK
6AW–11417–40
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR BLUE
UR BLUE
6
6AW–11426–00
PLANE BEARING, CRANKSHAFT 1
COUSSINET, VILEBREQUIN 1
22
7
6AW–11427–00
PLANE BEARING, CRANKSHAFT 2
COUSSINET, VILEBREQUIN 2
22
8
6AW–W1164–00
PISTON/CON-ROD ASSY STD
PISTON/BIELLE COMPLETTE (STD)
88
9
63P–11654–01
.BOLT, CONNECTING ROD
.BOULON, BIELLE
22
10
63P–11656–01
PLANE BEARING, CONNECTING ROD
ROULEMENT DE BIELLE
16 16 UR GREEN
UR GREEN
63P–11656–11
PLANE BEARING, CONNECTING ROD
ROULEMENT DE BIELLE
16 16 UR BLUE
UR BLUE
63P–11656–21
PLANE BEARING, CONNECTING ROD
ROULEMENT DE BIELLE
16 16 UR RED
UR RED
11
6AW–11603–00
PISTON RING SET (STD)
JEU DE SEGMENTS (STD)
88
