Yamaha F 350 [7/82] Fig 1 top cowling capot superieur
![Yamaha F 350 [7/82] Fig 1 top cowling capot superieur](/views2/1241111/page7/bg7.png)
A
4

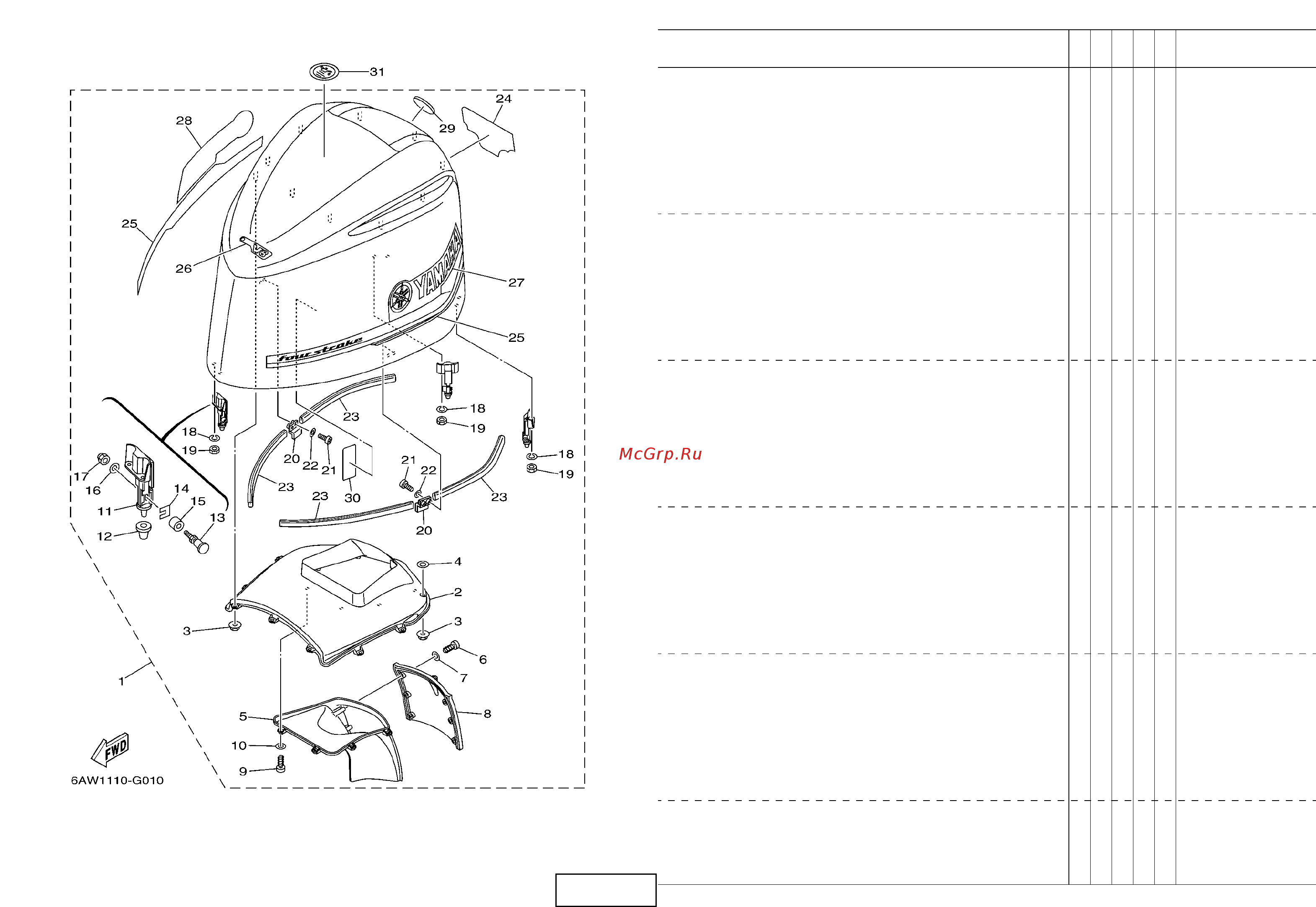

FIG. 1 TOP COWLING CAPOT SUPERIEUR
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
6AW1
6AX1
REMARKS
REMARQUES
1
6AW–42610–00–8D
TOP COWLING ASSY
CAPOT (ENS.)
11
2
6AW–42613–00
.MOLDING, AIR DUCT
.MANCHON A AIR
11
3
90179–06M28
.NUT
.ECROU
10 10
4
90202–06003
.WASHER, PLATE
.RONDELLE, PLATE
33
5
6AW–42635–00
.DUCT, WATER SEPARATOR
.CONDUIT, SEPARATEUR DE L'EAU
11
6
97780–60516
.SCREW, TAPPING
.VIS, TETE BOMBEE
66
7
92995–06200
.WASHER
.RONDELLE
66
8
6AW–42532–00
.COVER
.COUVERCLE
11
9
97780–60516
.SCREW, TAPPING
.VIS, TETE BOMBEE
77
10
92995–06200
.WASHER
.RONDELLE
77
11
6AW–42647–00–9S
.HOLDER, CLAMP BAND
.SUPPORT, SANDOW DE SERRAGE
33
12
6AW–42663–00
.DAMPER
.AMORTISSEUR
33
13
6AW–42752–00
.SHAFT
.AXE
33
14
6AW–42646–00
.PLATE, CLAMP
.PLAQUE, PRESSE
33
15
6AW–42651–00
.HOOK
.CROCHET
33
16
92995–06600
.WASHER
.RONDELLE
33
17
95780–06300
.NUT, FLANGE
.ECROU
33
18
92990–06100
.WASHER, SPRING
.RONDELLE, GROWER
66
19
95380–06600
.NUT, HEXAGON
.ECROU
66
20
6AW–42477–00
.PLATE, LOCK
.PLAQUE BUTEE
22
21
97885–05010
.SCREW, PAN HEAD
.VIS, A ENCOCHE
44
22
92995–05600
.WASHER
.RONDELLE
44
23
6AW–42628–00
.SEAL
.JOINT
44
24
6AW–42678–00
.GRAPHIC, REAR
.ADHESIF, ARRIERE
11
25
6AW–W0070–00
.GRAPHIC SET
.JEU DIEMBLEMES
11
26
6AW–42677–00
.GRAPHIC, FRONT
.ADHESIF, AVANT
11
27
6AW–42681–00
.MARK, COWLING
.ADHESIF, CAPOT
11
