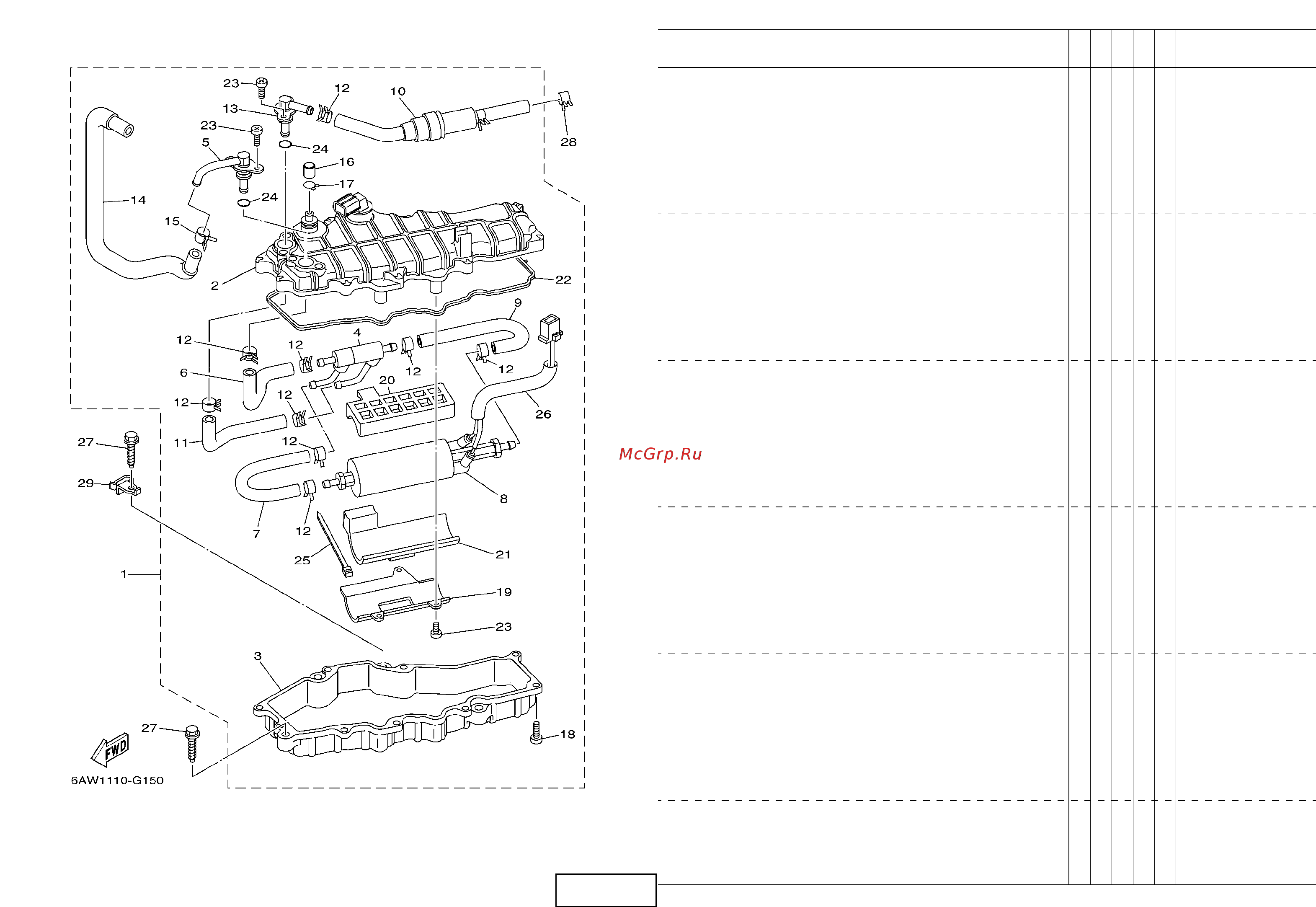

FIG. 15 FUEL 2 CARBURANT 2
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
6AW1
6AX1
REMARKS
REMARQUES
1
6AW–24408–00
FUEL FEED ASSY
ALIMENT D'ESSENCE
11
2
6AW–244A0–00
.PUMP CASE COMP.
.CARTER DE POMPE
11
3
6AW–244A1–00
.CASE, PUMP 1
.CARTER DE POMPE 1
11
4
6AW–24460–00
.RELIEF VALVE ASSY
.SOUPAPE DE SECURITE COMPLET
11
5
6AW–24378–00
.PIPE, JOINT 3
.DURITE RACCORDEMENT 3
11
6
6AW–24322–00
.PIPE 11
.DURITE 11
11
7
6AW–24323–00
.PIPE 12
.DURITE 12
11
8
6AW–24410–00
.FUEL PUMP ASSY
.POMPE A ESSENCE
11
9
6AW–24324–00
.PIPE 13
.DURITE 13
11
10
6AW–24502–00
.FILTER, FUEL
.FILTRE
11
11
6AW–24325–00
.PIPE 14
.DURITE 14
11
12
68V–13577–00
.CLIP
.AGRAFE
99
13
6AW–24379–00
.PIPE, JOINT 4
.DURITE RACCORDEMENT 4
11
14
6AW–24321–00
.PIPE 10
.DURITE 10
11
15
69J–14137–00
.CLIP
.JONC
11
16
6AW–14118–00
.CAP
.COUVERCLE
11
17
6AW–24356–00
.CLIP, PIPE 1
.JONC, TUBE 1
11
18
6AW–14567–00
.SCREW
.VIS
99
19
6AW–24491–00
.BRACKET, FUEL PUMP
.SUPPORT, POMPE A ESSENCE
11
20
6AW–24492–00
.BUSH, FUEL PUMP
.BAGUE
11
21
6AW–24492–10
.BUSH, FUEL PUMP
.BAGUE
11
22
6AW–24431–00
.GASKET, FUEL PUMP 1
.JOINT 1 DE POMPE A ESSENCE
11
23
6AW–14565–00
.SCREW
.VIS
77
24
68V–14397–00
.O-RING
.JOINT TORIQUE
22
25
68V–2481H–00
.CLAMP
.BRIDE
11
26
6AW–24327–00
.PROTECTOR, PIPE
.PROTECTEUR DE DURITE
11
27
90109–06MA2
BOLT
BOULON
44
