![Yamaha F 350 [12/82] Fig 4 cylinder crankcase 2 cylindre carter 2](/img/pdf.png)
Yamaha F 350 [12/82] Fig 4 cylinder crankcase 2 cylindre carter 2
![Yamaha F 350 [12/82] Fig 4 cylinder crankcase 2 cylindre carter 2](/views2/1241111/page12/bgc.png)
B
2

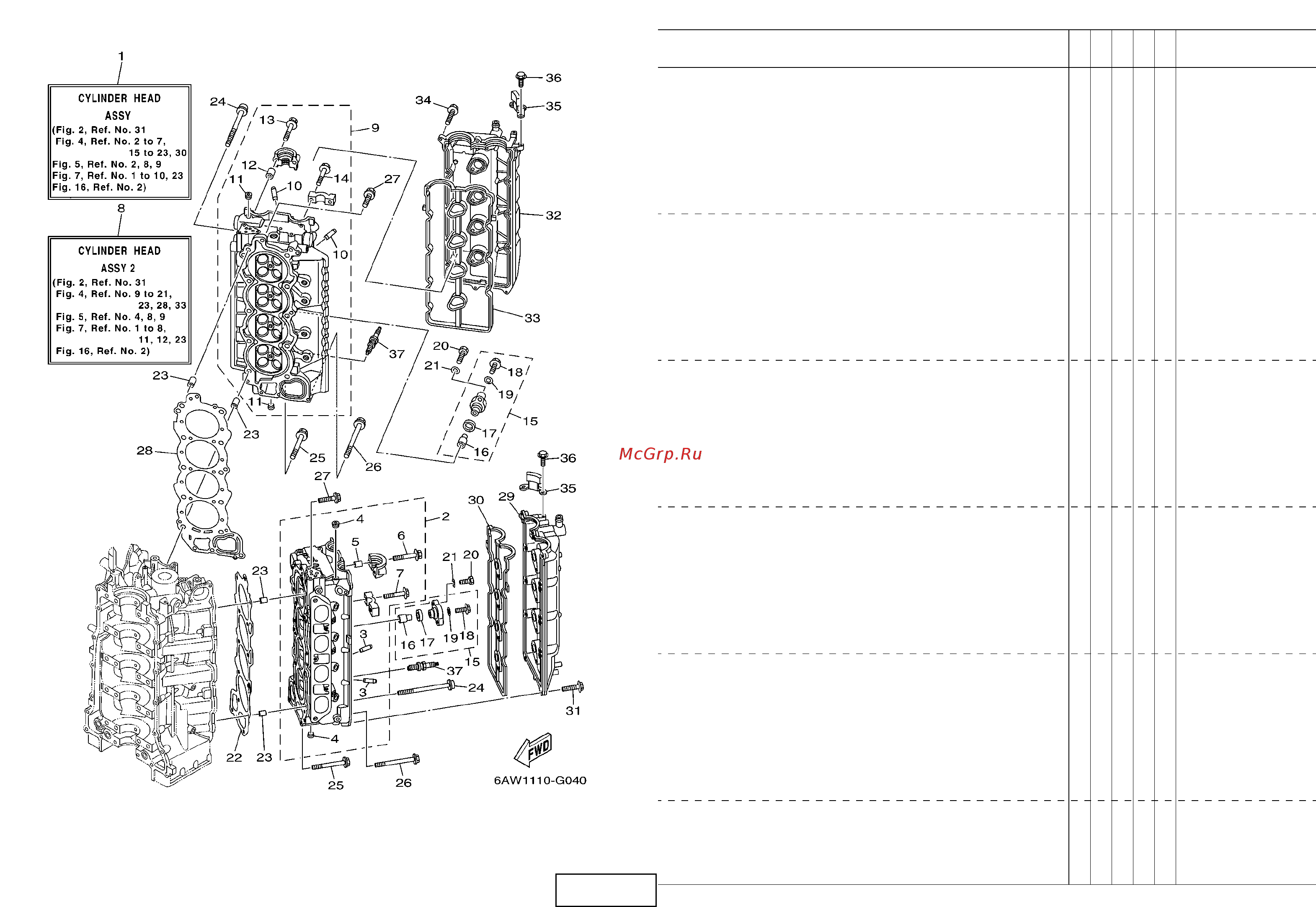

FIG. 4 CYLINDER & CRANKCASE 2 CYLINDRE & CARTER 2
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
6AW1
6AX1
REMARKS
REMARQUES
1
6AW–W009A–00–9S
CYLINDER HEAD ASSY
CULASSE (ENS.)
11
2
6AW–11110–00–9S
CYLINDER HEAD ASSY
JEU DE CULASSE
11
3
69J–11133–10
.GUIDE, VALVE 1
.GUIDE, SOUPAPE 1
16 16
4
90344–51019
.PLUG, TAPER SCREW
.PLOT, FILETE CONIQUE
99
5
91809–08006
.PIN, DOWEL
.GOUJON, D'ASSEMBLAGE
44
6
90119–07001
.BOLT, WITH WASHER
.BOULON, AVEC RONDELLE
44
7
90119–07234
.BOLT, WITH WASHER
.BOULON, AVEC RONDELLE
16 16
8
6AW–W009C–00–9S
CYLINDER HEAD ASSY 2
CULASSE 2
11
9
6AW–11120–00–9S
CYLINDER HEAD ASSY 2
CULASSE 2
11
10
69J–11133–10
.GUIDE, VALVE 1
.GUIDE, SOUPAPE 1
16 16
11
90344–51019
.PLUG, TAPER SCREW
.PLOT, FILETE CONIQUE
99
12
91809–08006
.PIN, DOWEL
.GOUJON, D'ASSEMBLAGE
44
13
90119–07001
.BOLT, WITH WASHER
.BOULON, AVEC RONDELLE
44
14
90119–07234
.BOLT, WITH WASHER
.BOULON, AVEC RONDELLE
16 16
15
6AW–11301–00
ANODE COVER ASSY
COUVERCLE ANODE (ENS.)
66
16
6AW–11325–00
.ANODE
.ANODE
11
17
67F–11328–00
.GROMMET, ANODE
.PASSE-FIL
11
18
90105–06M07
.BOLT, FLANGE
.BOULON
11
19
90430–06M03
.GASKET
.JOINT
11
20
97075–08025
BOLT
BOULON
12 12
21
92995–08600
WASHER
RONDELLE
12 12
22
6AW–11181–00
GASKET, CYLINDER HEAD 1
JOINT, DE CULASSE 1
11
23
90387–11005
COLLAR
COLLERETTE
44
24
90155–11001
SCREW, FLAT FILLISTER
VIS, TETE OVALE PLATE
20 20
25
90119–08MA5
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
44
26
90119–08021
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
22
27
90119–08115
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
22
