9

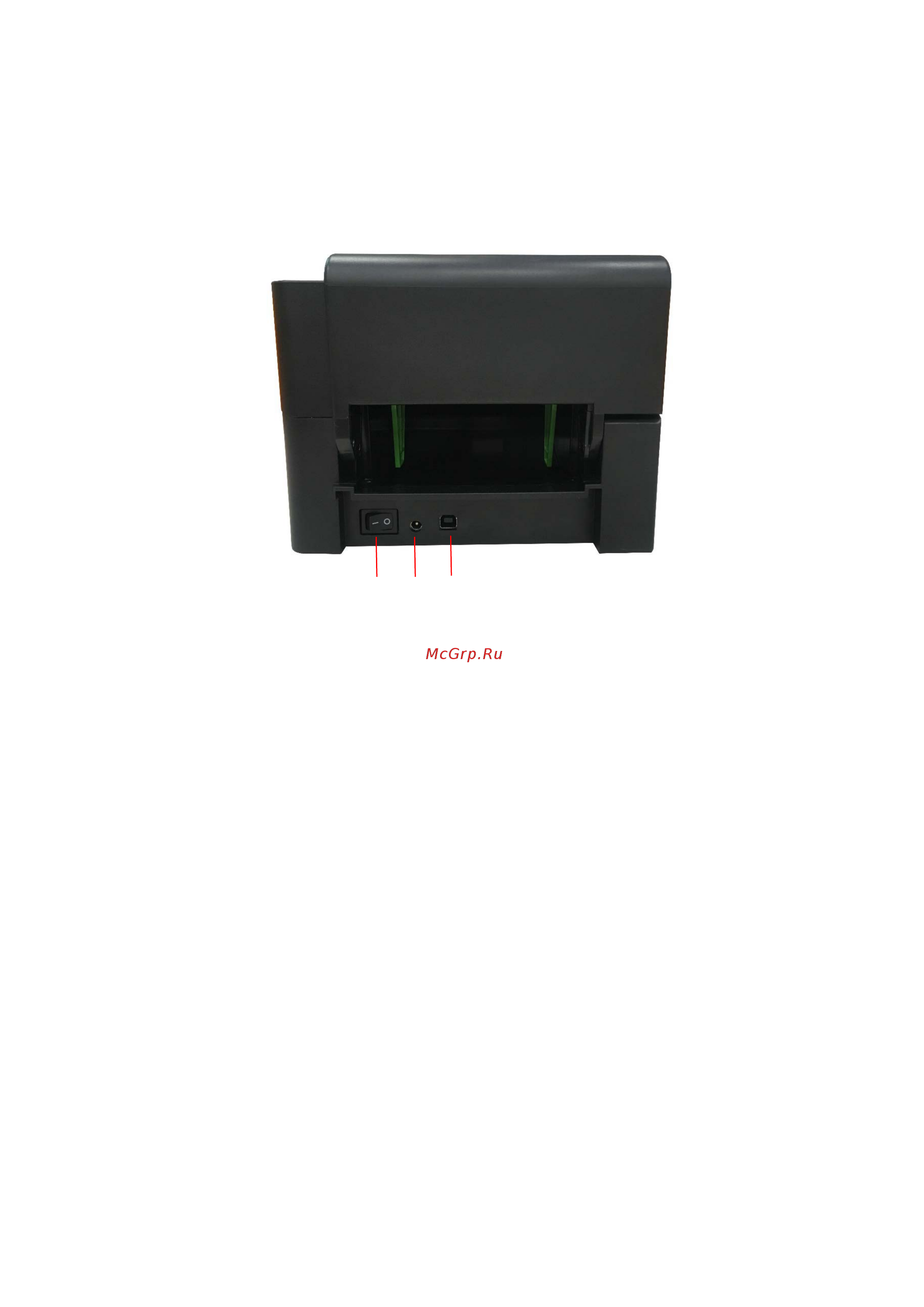

2.2.3 Rear View
1. Power switch
2. Power jack socket
3. USB interface (USB 2.0/Full speed mode)
Note:
The interface picture here is for reference only. Please refer to the product specification for
the interfaces availability.
1 2
3
